Name: Chieftec CTG-550C PC power supply unit 550 W ATX 80 PLUS
Brand: Chieftec
SKU: 3451853

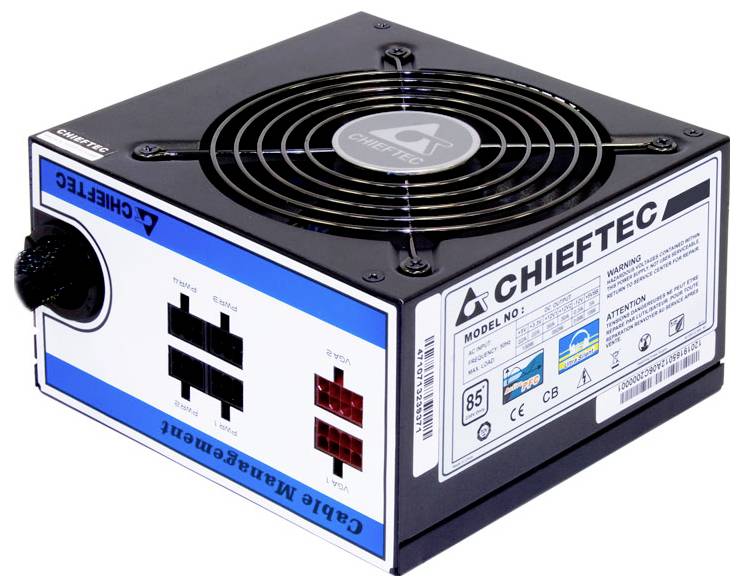

A computer power supply unit with a large fan on top, labeled 'CHIEFTEC'. It features various ports for cable management and specifications on the side.

'CHIEFTEC A80' power supply packaging, highlighting 'Reliable Energy' and 'Extremely Silent'. Features and certifications displayed.

1/2

Product type

PC power supply unit

PSU output power

550 W

Modular

Yes

Certification

80 PLUS

Form factor

ATX

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Chieftec CTG-550C PC power supply unit

Power supply unit output 550 W
PCI-Express (6+2-Pin) 2x
Cable management Yes
80 PLUS

Technical specifications

80 Plus Certification 80 PLUS
Fan diameter 12 cm
Number of fans: 1 fans

Product type: PC power supply unit

PSU output power: 550 W

Modular: Yes

Certification: 80 PLUS

Form factor: ATX

Factory colour: Black

Dim: (W x H x D) 150 x 87 x 140 mm

Depth: 140 mm

Height: 87 mm

Width: 150 mm

Weight: 2.315

-12V / DC: 0.3 A

5 V DC: 22 A

+5V / DC SB: 3 A

4-pin Molex: 4

6-pin PCIe: 2

6-pin PCIe: 2

5-pin SATA: 6

Output rating > 500 W: 550 W

Power rating: 501 - 750 W

Cooling: Active

Fan size: 120 mm

3.3V DC: 25 A

Power supply (details): 230 V

Operating voltage: 230 V / AC

UKCA: yes

Maximum input current (@110V): +12V1.+12V2,+3.3V,+5V,+5Vsb,-12V

Mean time between failures (MTBF): 100000 h

Efficiency: 85 %

Floppy drive power connector: 2

EPS power connector (8-pin): yes

Power factor: 0.9

CPU P4 connector (4-pin): 1

Combined power (+3.3V): 130 W

Combined power (+12V): 456 W

Combined power (+5V): 130 W

Combined power (-12V): 3.6 W

Combined power (+5Vsb): 15 W

Max output current (+12V2): 25 A

Max output current (+12V1): 25 A

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3451853 Chieftec CTG-550C PC power supply unit 550 W ATX 80 PLUS

Description

The popular series of power supplies from CHIEFTEC now also includes cable management. Several times awarded, this power supply addresses the cost and environment-conscious user, who attaches importance on one hand to a low-cost power supply and on the other to a high efficiency
