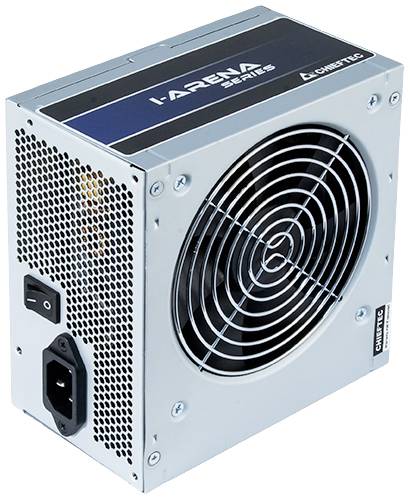

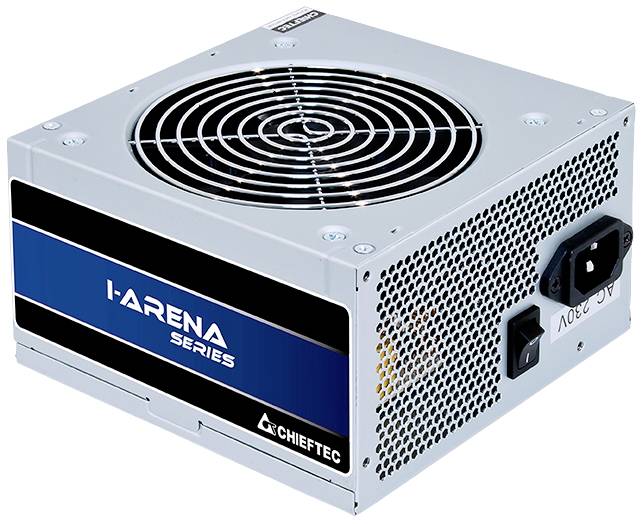

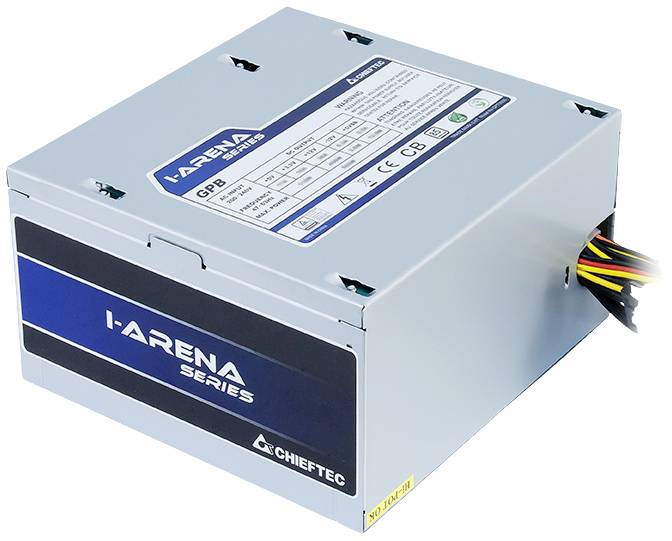

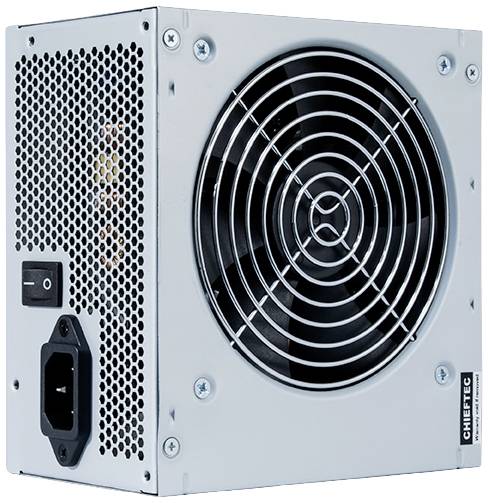

Chieftec GPB-500S PC power supply unit 500 W
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
500 W
Modular
No
Factory colour
Silver
Dim
(W x H x D) 140 x 87 x 150 mm
Chieftec GPB-500S PC power supply unit
Highlights & Details
- Power supply unit output 500 W
- PCI-Express (6+2-Pin) 1x
- Cable management No
Technical specifications
- Product type
PC power supply unit
- PSU output power
500 W
- Modular
No
- Factory colour
Silver
- Dim
(W x H x D) 140 x 87 x 150 mm
- Depth
150 mm
- Height
87 mm
- Width
140 mm
- Weight
1250 g
- -12V / DC
0.3 A
- +12 V/DC (1)
38 A
- 5 V DC
17 A
- 20+4-pin.
3
- 6-pin PCIe
1
- Power rating
0 - 500 W
- Cable length
0 cm
- Design height
87 mm
- Keyboard layout
German, QWERTZ
- Cooling
Active
- Fan size
120 mm
- 3.3V DC
18 A
- Power supply (details)
200 - 240 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2901344 Chieftec GPB-500S PC power supply unit 500 W
Description
With the iARENA series, CHIEFTEC provides economical power supplies with first-class performance values and high efficiency at an attractive price. Of course, the iARENA power supplies comply with the Restriction of Hazardous Substances (RoHS) Directive. European PC manufacturers welcome the power supply fixed to 230 V, which, like the environment and resources, reduces the procurement costs.
This text is machine translated.
This text is machine translated.
Features
- Total power 500 W.
- AC input voltage 200 - 240 V
- AC input frequency 47 - 63 Hz Motherboard connector plug 20+4 pin ATX Purpose: PC
- Power Supply Unit (PSU) Form factor PS/2. Product color: Silver
- Cooling: Active
- Fan diameter 12 cm Width 140 mm
- Depth: 150 mm
- Height: 87 mm
