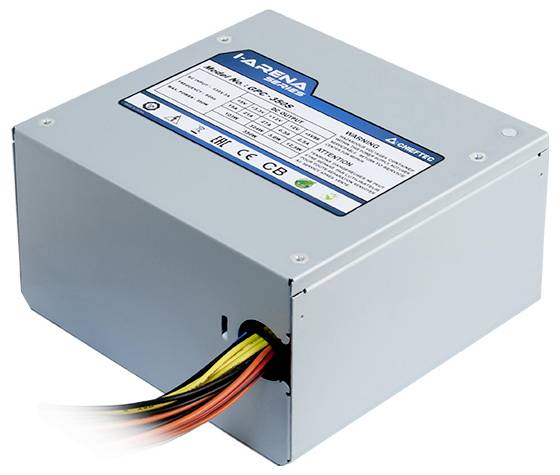

Chieftec GPC-700S PC power supply unit 700 W ATX No certification
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
700 W
Modular
No
Certification
No certification
Form factor
ATX
Chieftec GPC-700S PC power supply unit
Highlights & Details
- Power supply unit output 700 W
- PCI-Express (6+2-Pin) x
- Cable management No
- No certification
Technical specifications
- Power Supply Unit (PSU) Form factor PS/2
- Fan diameter 12 cm
- Number of fans: 1 fans
- Product type
PC power supply unit
- PSU output power
700 W
- Modular
No
- Certification
No certification
- Form factor
ATX
- Factory colour
Silver
- Dim
(W x H x D) 140 x 87 x 150 mm
- Depth
150 mm
- Height
87 mm
- Width
140 mm
- -12V / DC
0.3 A
- 5 V DC
22 A
- +5V / DC SB
2.5 A
- 24-pin
1
- 4-pin Molex
2
- 5-pin SATA
6
- Output rating > 500 W
700 W
- Output rating > 700 W
700 W
- Power rating
501 - 750 W
- Fan size
120 mm
- 3.3V DC
22 A
- Power supply (details)
230 V
- Operating voltage
230 V / AC
- UKCA
yes
- Combined power (+3.3V)
130 W
- Combined power (+5Vsb)
12.5 W
- Max output current (+12V1)
52.5 A
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3451858 Chieftec GPC-700S PC power supply unit 700 W ATX No certification
