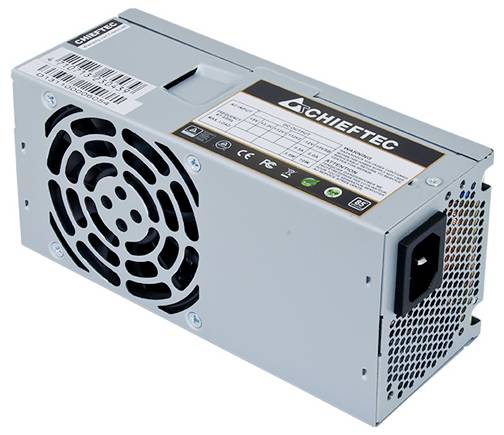

Chieftec GPF-350P Power supply unit 350 W TFX
EAN:
Part number:
Item no:
Product type
Power supply unit
PSU output power
350 W
Form factor
TFX
Factory colour
Silver
Dim
(W x H x D) 86 x 65 x 175 mm
Chieftec GPF-350P Power supply unit
Highlights & Details
- Power supply unit output 350 W
- PCI-Express (6+2-Pin) x
- Cable management
Technical specifications
- Fan diameter 8 cm
- Number of fans: 1 fans
- Product type
Power supply unit
- PSU output power
350 W
- Form factor
TFX
- Factory colour
Silver
- Dim
(W x H x D) 86 x 65 x 175 mm
- Depth
175 mm
- Height
65 mm
- Width
86 mm
- -12V / DC
0.3 A
- 5 V DC
16 A
- +5V / DC SB
2 A
- 4-pin Molex
2
- 5-pin SATA
2
- Output rating < 500 W
350 W
- Power rating
0 - 500 W
- Fan size
80 mm
- 3.3V DC
16 A
- Power supply (details)
115 - 230 V
- Operating voltage
100 - 240 V
- UKCA
yes
- Floppy disk drive connector
yes
- Efficiency
85 %
- On/off switch
no
- Power factor
0.9
- CPU P4 connector (4-pin)
1
- Combined power (+3.3V)
100 W
- Combined power (+12V)
300 W
- Combined power (+5V)
100 W
- Combined power (-12V)
3.6 W
- Combined power (+5Vsb)
10 W
- Max output current (+12V2)
15 A
- Max output current (+12V1)
15 A
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3492023 Chieftec GPF-350P Power supply unit 350 W TFX
Description
The latest generation of TFX power supplies comes with a new model therefore: GPF-350P (12V version 2.3). Equipped with both an ultra-modern interior and an efficiency of 85% at 115/230V, this power supply is best suited for home entertainment systems or small complete systems. Active PFC and a quiet, temperature-controlled fan round off the positive image.
