Name: Chieftec PC- Netzteil Chieftec Chieftronic PowerP PC power supply unit 850 W
Brand: Chieftec
SKU: 3412821

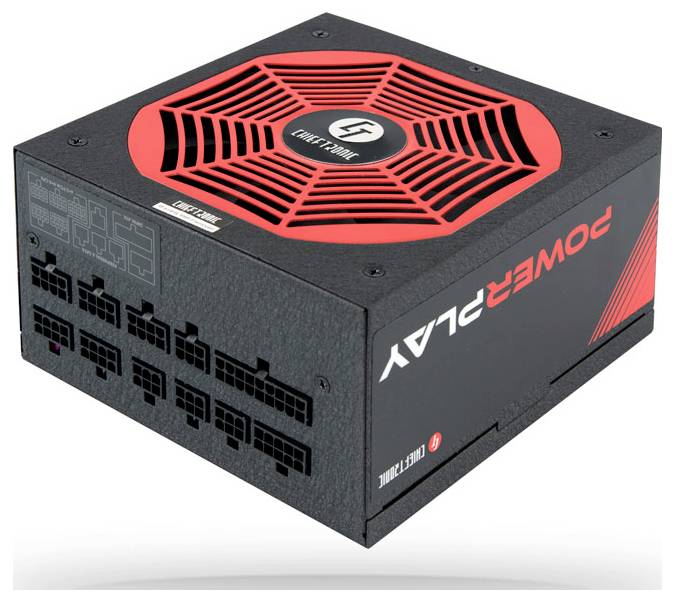

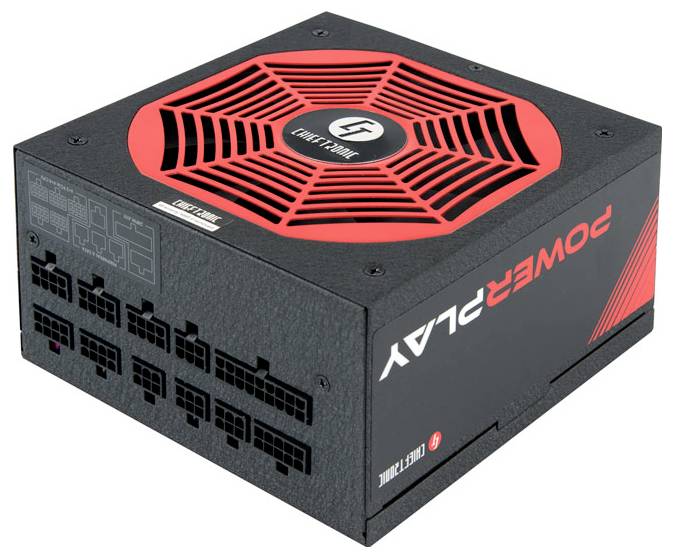

Black PC power supply with a red fan grille and multiple connection options. 'POWER PLAY' printed on the side.

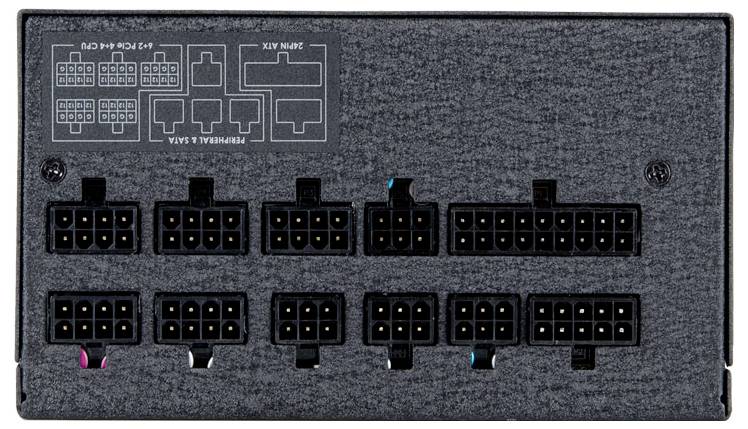

Rear view of a computer power supply unit with multiple black connector slots. A diagram with labels is located in the top left corner.

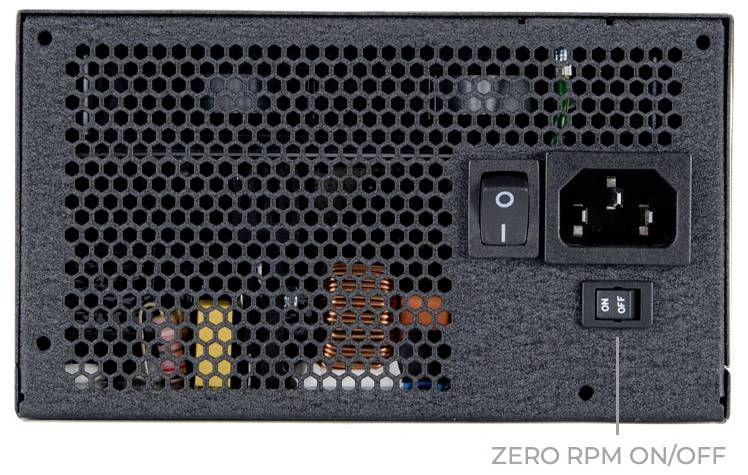

Back of a computer power supply with ventilation grille, mains cable connection, power on/off switch, and 'ZERO RPM ON/OFF' label.

Chiefttronic power supply packaging with a red fan grille visible from the front. Text: 'Power on, play on. Powerplay.' 80 Plus Platinum certification.

1/9

Product type

PC power supply unit

PSU output power

850 W

Factory colour

Black

Red

Dim

(W x H x D) 150 x 86 x 160 mm

Depth

160 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Chieftec PC- Netzteil Chieftec Chieftronic PowerP PC power supply unit

Power supply unit output 850 W
PCI-Express (6+2-Pin) 6x
Cable management

Technical specifications

80 Plus certification: 80 PLUS Platinum
Power Supply Unit (PSU) Form factor PS/2
Fan diameter 14 cm
Number of fans: 1 fans

Product type: PC power supply unit

PSU output power: 850 W

Factory colour: Black
Red

Dim: (W x H x D) 150 x 86 x 160 mm

Depth: 160 mm

Height: 86 mm

Width: 150 mm

Weight: 3.41 kg

-12V / DC: 0.3 A

+12 V/DC (1): 70.83 A

5 V DC: 20 A

+5V / DC SB: 3 A

4-pin Molex: 3

6-pin PCIe: 6

5-pin SATA: 9

Power rating: 751 W -

Cooling: Active

3.3V DC: 100 A

Power supply (details): 100 - 240 V

UKCA: yes

Motherboard power cable length: 60 cm

PCI Express power cable length: 60 cm

Floppy disk drive connector: yes

PCI Express connector: yes

On/off switch: yes

Floppy drive power connector: 1

EPS power connector (8-pin): yes

ATX power connector (20+4 pin): yes

Power factor: 0.9

Package weight: 3.82 kg

Combined power (+3.3V): 100 W

Combined power (+12V): 849.96 W

Combined power (+5V): 100 W

Combined power (-12V): 3.6 W

Combined power (+5Vsb): 15 W

Documents & Downloads

Datasheet

Datasheet 3412821 Chieftec PC- Netzteil Chieftec Chieftronic PowerP PC power supply unit 850 W

User & Safety Instructions

User & Safety Instructions 3412821 Chieftec PC- Netzteil Chieftec Chieftronic PowerP PC power supply unit 850 W

Description

The Chieftronic PowerPlay series builds on Chieftec's long-standing experience in the development of high-quality power supplies and offers an attractive combination of top specifications such as 80 PLUS Gold (at 550W, 650W, 750W) and 80 PLUS Platinum (at 850W, 1050W). High-quality Japanese capacitors for minimum ripple noise and the conspicuous fan grille design round off the whole, to offer a completely first-class product.

The power supplies are installed in a robust housing and measure in depth just 160 mm. As such, they fit without any problem in all power supply slots in the ATX V12 format and leave enough space for a clean cable management.

The combination of efficiency, performance and design make the Chieftronic PowerPlay a first-class power supply series, which is the leading product range from Chieftronic

This text is machine translated.

Features

Complete cable management,80 PLUS Platinum efficiency,High-quality Japanese capacitors for minimum ripple noise,High-quality housing with striking fan grille design
