Name: Chieftec TPS-500S PC power supply unit 500 W ATX 80 PLUS Bronze
Brand: Chieftec
SKU: 3451793

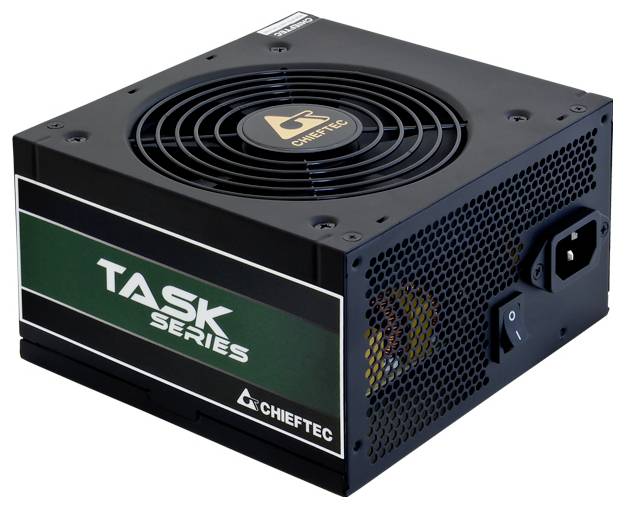

'Chieftec TASK Series' power supply unit with cooling fan, power switch, and cable port visible.

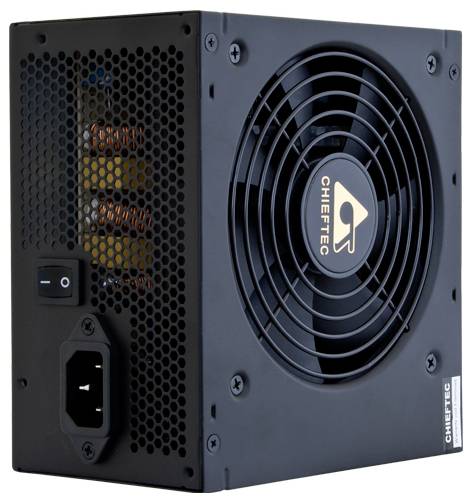

'Chieftec' power supply unit featuring a cooling fan, power switch, and AC input socket. Used to convert mains AC to low-voltage DC for computer components.

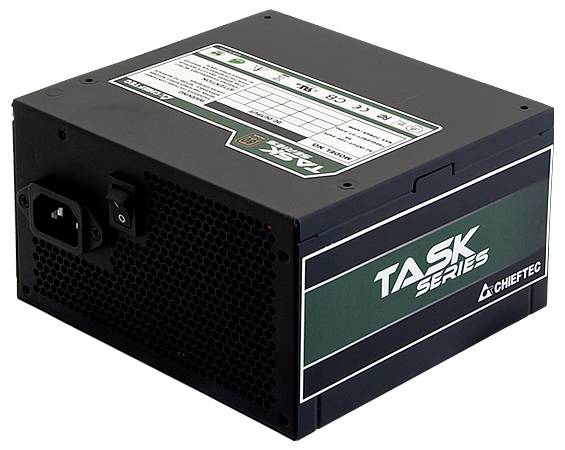

A black computer power supply unit labeled 'TASK Series' designed by Chieftec, with a visible power switch and ventilation grid.

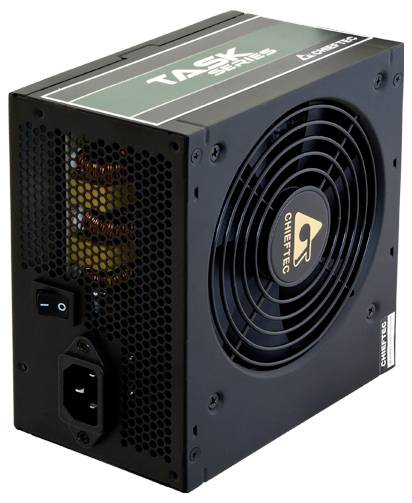

Chieftec TASK series power supply unit with a cooling fan and visible power port, designed for computer hardware.

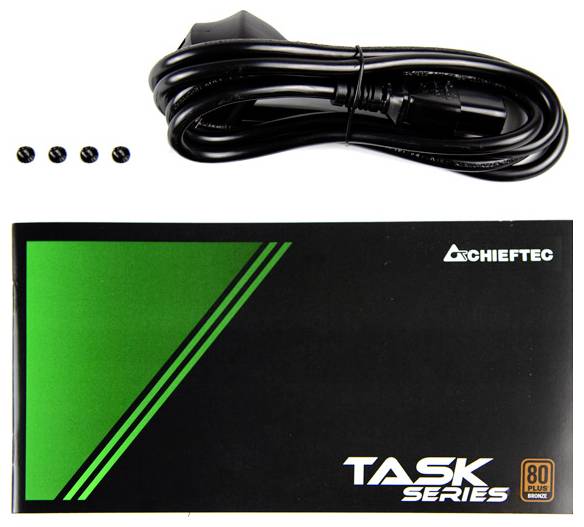

'Chieftec Task Series 80 Plus Bronze' power supply unit with a black and green design. Includes four screws and a power cable.

1/6

Product type

PC power supply unit

PSU output power

500 W

Certification

80 PLUS Bronze

Form factor

ATX

Factory colour

Black

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Chieftec TPS-500S PC power supply unit

Power supply unit output 500 W
PCI-Express (6+2-Pin) 2x
Cable management
80 PLUS Bronze

Technical specifications

80 Plus certification: 80 PLUS Bronze
Fan diameter 12 cm
Number of fans: 1 fans

Product type: PC power supply unit

PSU output power: 500 W

Certification: 80 PLUS Bronze

Form factor: ATX

Factory colour: Black

Dim: (W x H x D) 150 x 86 x 140 mm

Depth: 140 mm

Height: 86 mm

Width: 150 mm

Weight: 2

5 V DC: 17 A

+5V / DC SB: 2.5 A

4-pin Molex: 3

6-pin PCIe: 2

5-pin SATA: 5

Power rating: 0 - 500 W

Cooling: Active

3.3V DC: 18 A

Power supply (details): 115 - 230 V

Operating voltage: 230 V / AC

UKCA: yes

EPS power connector (4+4 pin): yes

Efficiency: 85 %

On/off switch: yes

Combined power (+3.3V): 110 W

Combined power (+5V): 110 W

Max output current (+12V1): 38 A

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3451793 Chieftec TPS-500S PC power supply unit 500 W ATX 80 PLUS Bronze

Description

The CHIEFTEC Task power supply series remains true to its name and must not hide itself from any task.

With a certified 80PLUS® Bronze efficiency and all the common protection and safety mechanisms, you are best equipped with this power supply. With cable lengths of 650 mm for motherboard and CPU plug, the power supplies in the Task series are perfectly suitable for installation in larger casings and for corresponding cable management. A reliable power supply for your system.

This text is machine translated.
