Buy Chieftec VEGA PPG-850-S (8 PC power supply unit 850 W ATX 80 PLUS Gold

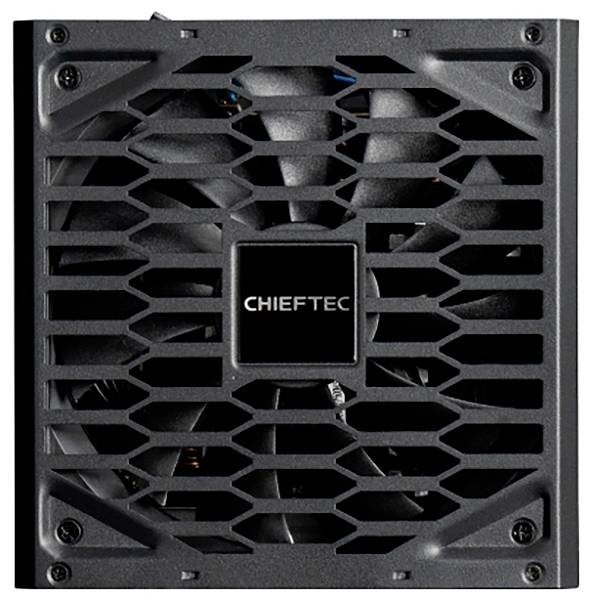

'Chieftec PC power supply with fan grille and view of the fan inside, providing cooling and power supply for computers.'

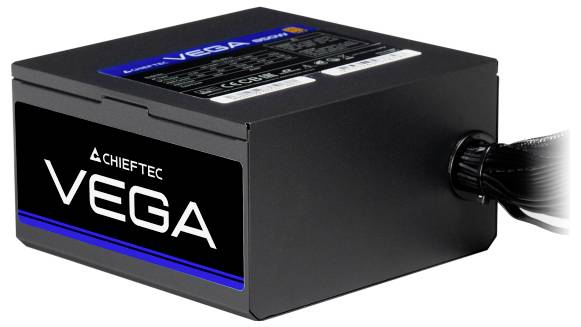

Chieftec computer power supply, 'VEGA' model, in a black enclosure with blue accents and labelled technical information.

SSD with the print 'Chieftec VEGA' and a blue line at the bottom.

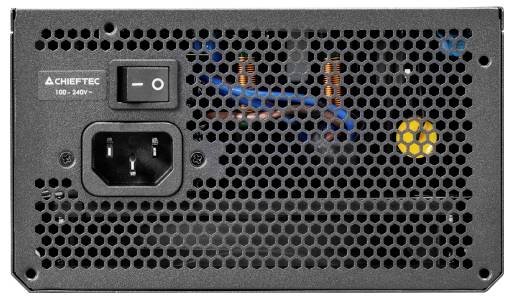

Black PC power supply with ventilation grilles, power switch, and cable connection.

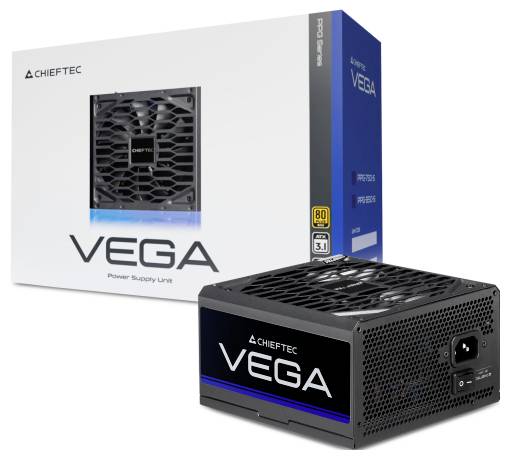

Power supply 'Chieftec Vega' shown before packaging, with distinctive fan grille and 80 Plus Gold certification.

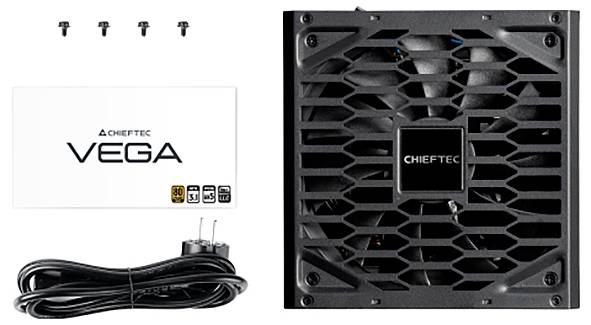

Power supply unit Chieftec Vega with accessories: screws, user manual, power cable. Black casing with ventilation grille.

1/8

Product type

PC power supply unit

PSU output power

850 W

Modular

Certification

80 PLUS Gold

Form factor

ATX

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Chieftec VEGA PPG-850-S (8 PC power supply unit

Highlights & Details

Power supply unit output 850 W
PCI-Express (6+2-Pin) 4x
Cable management No
80 PLUS Gold

Technical specifications

Model PPG-850-S
Cooling system 135 mm fan
Output Ports: 1 x Power 24-pin ATX with removable 4-pin section; 1 x Power 8-pin EPS12V; 4 x 8-pin PCI Express Power; 1 x 16-pin PCI Express power supply; 6 x SATA connector; 3 x Molex
Power compatibility: PC/server

Product type: PC power supply unit

PSU output power: 850 W

Modular: No

Certification: 80 PLUS Gold

Form factor: ATX

Factory colour: Black

Dim: (W x H x D) 15 x 8.5 x 15 cm

Depth: 15 cm

Height: 8.5 cm

Width: 15 cm

Weight: 2.07 kg

-12V / DC: 0.3 A

+12 V/DC (1): 70.8 A

5 V DC: 20 A

+5V / DC SB: 0.3 A

20+4-pin.: 1

4-pin Molex: 3

4+4 pin ATX/EPS 12V: 1

6-pin PCIe: 4

5-pin SATA: 6

Features: ATX 3.1

Power rating: 751 W -

Cooling: Active

3.3V DC: 20 A

Power supply (details): 100 - 240 V

Operating voltage: 100 - 240 V

UKCA: yes

Illumination: no

Motherboard power cable length: 60 cm

CPU power cable length: 65 cm

PCI Express power cable length: 60 cm

ATX Power connector (24-pin): yes

EPS power connector (4+4 pin): yes

PCI Express power connectors (12+4 pin): 1

EPS power connector (8-pin): yes

ATX power connector (20+4 pin): yes

CPU power connector (4+4 pin): yes

Package weight: 2.54 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3386627 Chieftec VEGA PPG-850-S (8 PC power supply unit 850 W ATX 80 PLUS Gold

Description

The Chieftec VEGA Series PPG-850-S power supply was developed to fulfill the diverse requirements of modern computer systems. It offers a robust performance of 850 watts with multiple cable options, including 8-pin EPS12V, SATA Express, Molex and 16-pin PCIe 5.0 cables. Thanks to the DC-DC technology and a liquid-mounted fan this power supply provides for reliable performance and efficient cooling in demanding tasks. The 80 PLUS Gold certification stands for high energy efficiency, enabling users to benefit from both performance and lower electricity bills.Security features such as overcurrent, overvoltage, overload, undervoltage and short circuit protection increase the reliability of the PPG-850-S. Active power factor correction (PFC) and high-temperature protection ensure stable operation and make the device a suitable choice for gaming and server applications. This power supply promises a safe and environmentally friendly solution for the power supply of devices.

This text is machine translated.

Features

Compliant with ATX 12V 3.1, Supports PCIe GEN5.80PLUS® Gold certified, LLC half bridge with DC-to-DC voltage transformer
