Cimco 106345 Cordless hydraulic punch press 18 V 2 Ah Li-ion
EAN:
Part number:
Item no:
Highlights & Details
Cimco 106345 Cordless hydraulic punch press 18 V 2 Ah Li-ion
- 18 V/2 Ah Li-ion battery
Technical specifications
- Operating pressure max. 650 bar
- Press duration: 3 - 7 sec.
- Product type
Cordless hydraulic punch press
- Voltage
18 V
- Capacity (mAh, Ah)
2 Ah
- Technology
Li-ion
- No. of power packs included
2
- Power supply (LOV)
rechargeable
- Press force
62 N
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3350568 Cimco 106345 Cordless hydraulic punch press 18 V 2 Ah Li-ion
Description

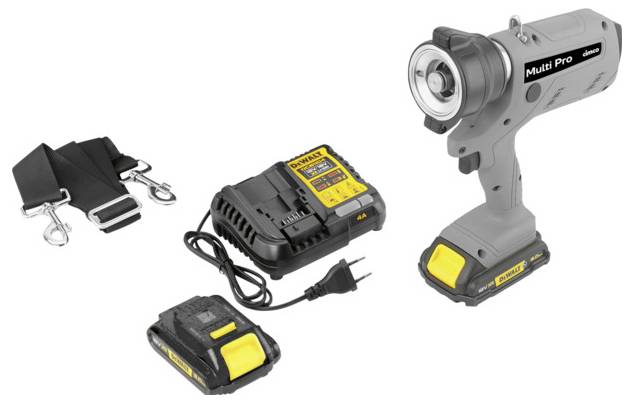

MultiPro basic unit in a case with a charger and 2x 2.0Ah batteries (without replaceable heads)
The MultiPro battery-hydraulic changing system enables the implementation of a wide range of applications with only one device in professional quality thanks to interchangeable heads. The base unit has a force of 62 kN and a stroke of 32 mm. An LED illuminates the work area and locking the exchangeable heads is easy to handle. The unit has an automatic return for cutting and pressing and a manual return option for emergencies. The balanced and ergonomic housing shape ensures easy handling. The motor brake also prevents a dangerous running down of the piston. With a cycle time of 3-7 seconds and a service cycle of 20,000 operations, the unit is efficient and durable. The heads can be rotated by 180°, WAS flexible inserts are possible A charging status display informs about the battery status, and the 18 V Li-ion Dewalt battery system provides for a reliable performance. Optionally a shoulder carrying strap can be attached, in order to increase the comfort further.
This text is machine translated.
The MultiPro battery-hydraulic changing system enables the implementation of a wide range of applications with only one device in professional quality thanks to interchangeable heads. The base unit has a force of 62 kN and a stroke of 32 mm. An LED illuminates the work area and locking the exchangeable heads is easy to handle. The unit has an automatic return for cutting and pressing and a manual return option for emergencies. The balanced and ergonomic housing shape ensures easy handling. The motor brake also prevents a dangerous running down of the piston. With a cycle time of 3-7 seconds and a service cycle of 20,000 operations, the unit is efficient and durable. The heads can be rotated by 180°, WAS flexible inserts are possible A charging status display informs about the battery status, and the 18 V Li-ion Dewalt battery system provides for a reliable performance. Optionally a shoulder carrying strap can be attached, in order to increase the comfort further.
This text is machine translated.
Features
- Basic device
- Force 62 kN
- Stroke: 32 mm
- LED to illuminate the work area
- Simple handling of the locking for changing the heads
- Automatic return flow for cutting and pressing
- Balanced and ergonomic casing shape
- Manual reverse as required and in case of emergency
- Motor brake, no dangerous running down of the piston
- Cycle time 3-7 seconds
- Service cycle: 20. 000 processes
- Heads can be rotated by 180° without stop
- Battery charge indicator
- 18 V Li-ion Dewalt battery system
- Optional attachment of a shoulder strap is possible
Scope of delivery

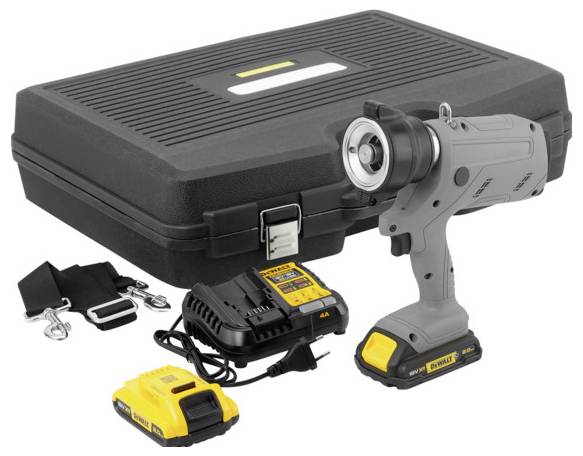

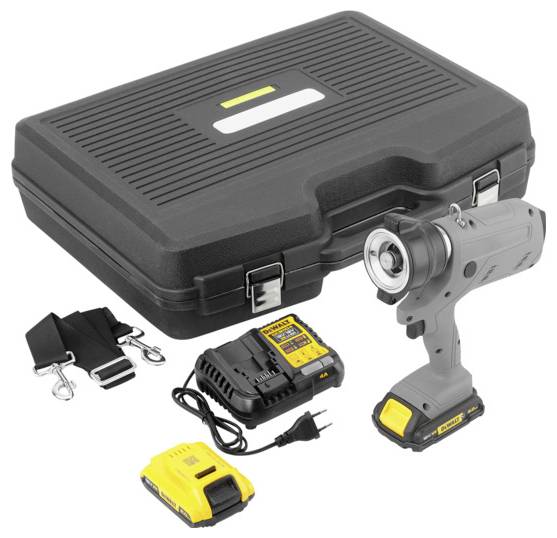

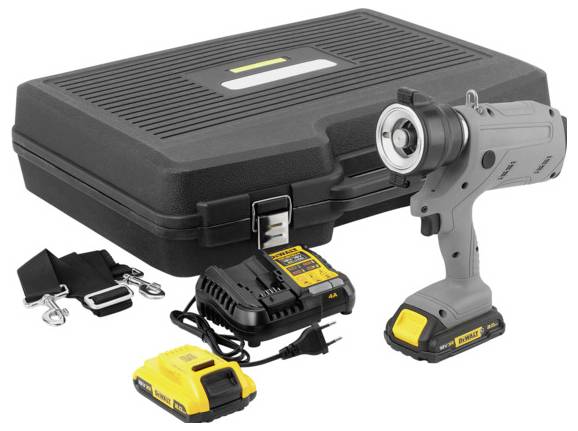

- 106345: Basic unit in case with a charger and 2 x 2.0Ah batteries (without changing heads)
