Cimco 106354 Cordless hydraulic punch press 18 V 2 Ah Li-ion

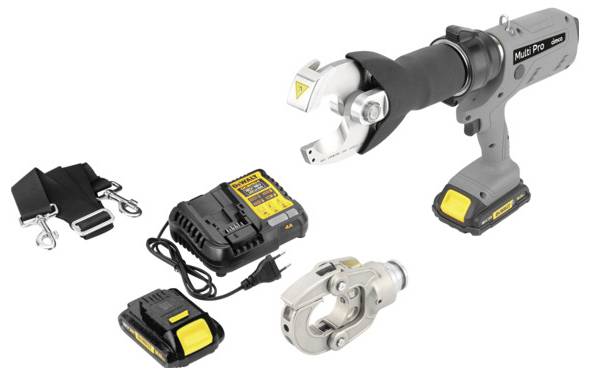

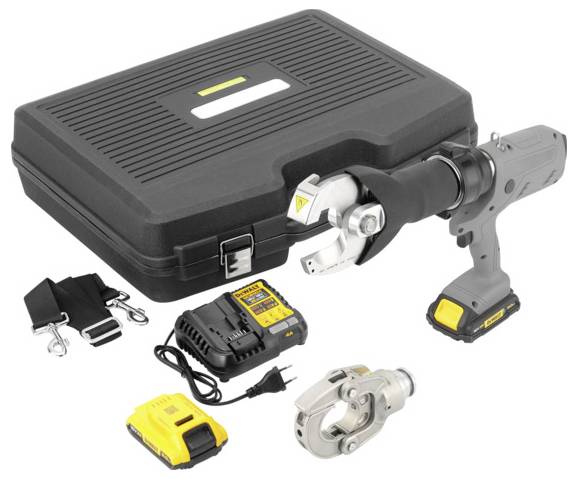

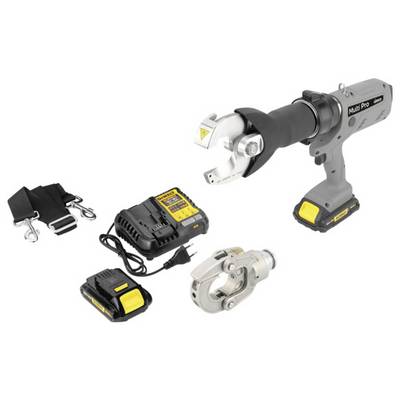

MultiPro set comprising of base unit, a press head and a cutting head

The MultiPro battery-hydraulic changing system enables the implementation of a wide range of applications with only one device in professional quality thanks to interchangeable heads. The base unit has a force of 62 kN and a stroke of 32 mm. An LED illuminates the work area and locking the exchangeable heads is easy to handle. The unit has an automatic return for cutting and pressing and a manual return option for emergencies. The balanced and ergonomic housing shape ensures easy handling. The motor brake also prevents a dangerous running down of the piston. With a cycle time of 3-7 seconds and a service cycle of 20,000 operations, the unit is efficient and durable. The heads can be rotated by 180°, WAS flexible inserts are possible A charging status display informs about the battery status, and the 18 V Li-ion Dewalt battery system provides for a reliable performance. Optionally a shoulder carrying strap can be attached, in order to increase the comfort further. The MultiPro changing system comprises the following replacement heads: The press head, which can be equipped with various press inserts, offers the possibility of pressing pipe cable shoes and connectors in the range of 6 to 300 mm². In addition, DIN 46235-compliant crimp terminals and connectors in the range of 6 to 300 mm² can be processed. It is also possible to press aluminum and AlCu cable lugs in the range of 10 to 300 mm². Furthermore, crimp cable lugs can be pressed in the range of 10 to 70 mm² in accordance with DIN 46228 and wire end sleeves in the range of 10 to 95 mm² in accordance with DIN 46234. Note: Crimp inserts are not included. The cutting head allows the cutting of aluminum and copper lines and the cutting of cables up to a diameter of 50 mm (cable class 2/5/6 according to IEC 60228). Note: The cutting head is not suitable for steel-reinforced lines (ACSR).

This text is machine translated.
