Cimco 111439 Voltage tester CAT IV Visual
EAN:
Part number:
Item no:
Technical specifications
- Product type
Voltage tester
- Reading type
Voltage testing
Continuity
Cycle counter
- Display
Visual
- V AC reading range
1 up to 1000 V
- V DC reading range
1 up to 1500 V
- Reading category
CAT IV
IP64
Manufacturer's standards (no certificate)
- V AC reading range (max.)
1000 V
- V AC reading range (min.)
1 V
- Voltage DC reading range (max.)
1500 V
- Voltage reading range DC (min.)
1 V
- Type
111439
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3818810 Cimco 111439 Voltage tester CAT IV Visual
Description

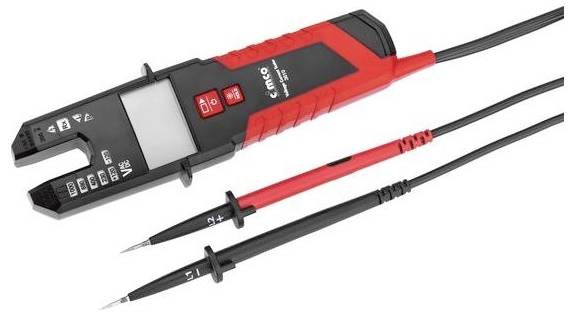

AC/DC voltage tester 1,000 V AC/1,500 V DC, the all-rounder including current measurement (fork) up to 200 A AC, true RMS measurement. Over-voltage category CAT III 1,000 V, CATIV 600 V. With LED- and LCD-display. Integrated single-pole, rotary field direction and continuity test Automatic polarity detection, resistance measurement up to 100k?, frequency range 15-800Hz. Self-test function Sound and vibration function for secure feedback. Quick one-handed testing on Schuko-sockets. Torch function, test tip protection. Protection class IP64, tested according to EN61010, EN61243-3:2014. Batteries included. Dimensions: 210x63x37 mm, weight 270 g
