Cimco 111492 Wallbox socket tester Type 2 3-phase
EAN:
Part number:
Item no:
Highlights & Details
Giant tool box technicians
- For type 2 chargers
- CP-Modes
- PE error
Technical specifications
- Measurement category CAT II 300 V
- Product type
Wallbox socket tester
- Charger connectors
Type 2
- Factory colour
Black
- Width
210.0000 mm
- Height
220.0000 mm
- No. of phases
3-phase
- Weight
0.4000
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3203496 Cimco 111492 Wallbox socket tester Type 2 3-phase
Description

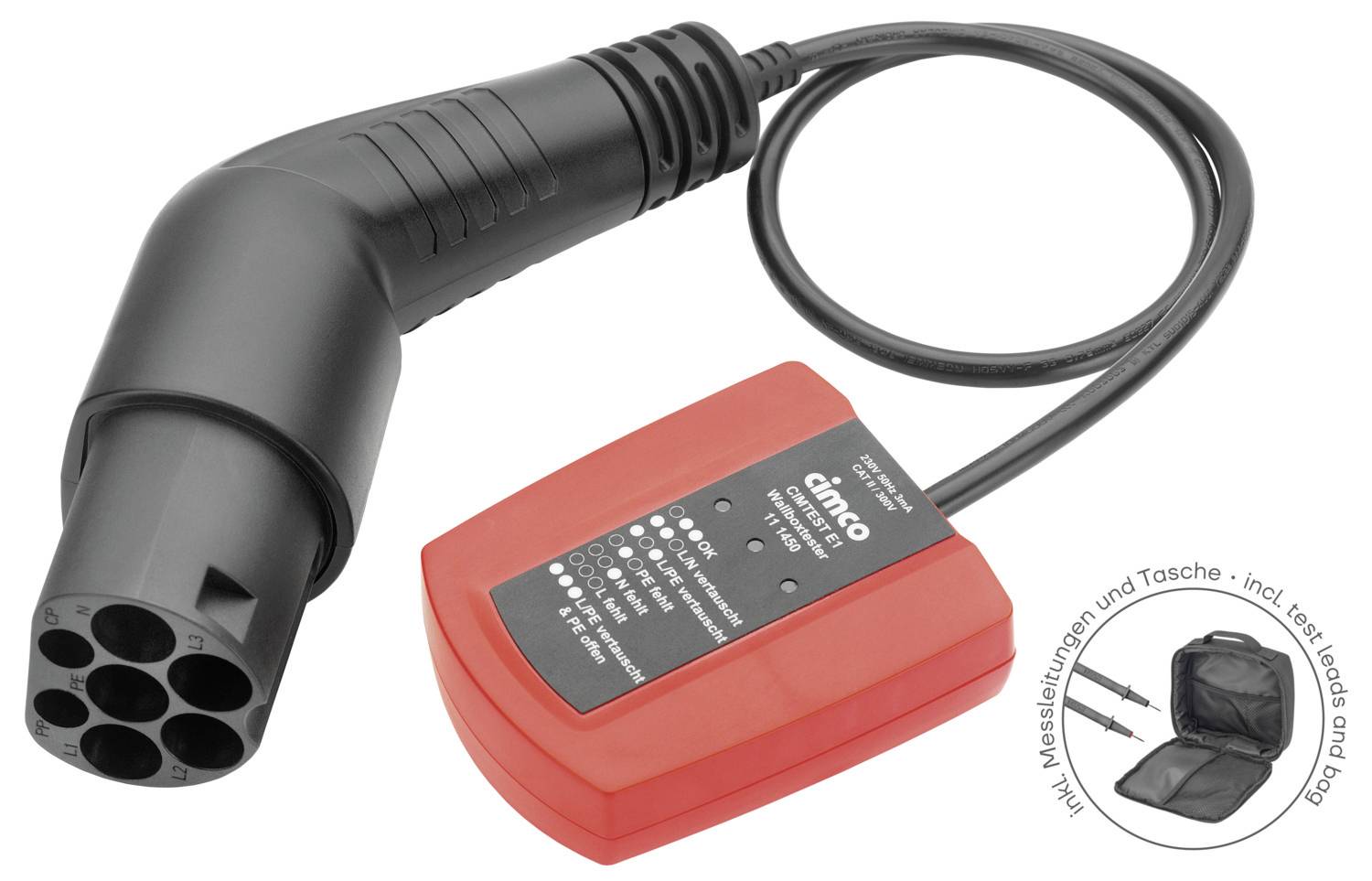

Cimtest E1, Wallbox Tester with Type 2 plug for direct connection to the EVSE charger column. Quick check of the correct wiring L1, N, PE of type 2 charging points. Slide switch with 4 positions for simulating vehicle states, CP modes A, B, C and E. PE errors are clearly indicated by LEDs. Permanently connected type 2 connector for quick and easy testing. 230/400 V AC 3 ~ 50/60Hz, CAT II/300V. Includes bag
