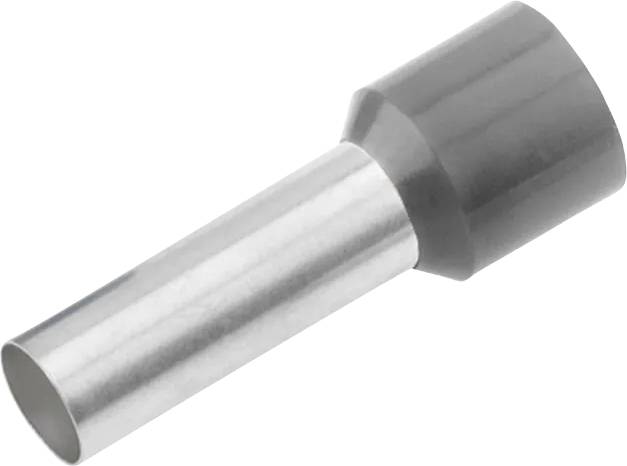

Cimco 187005 Ferrule 0.75 mm² Partially insulated Grey 100 pc(s)
EAN:
Part number:
Item no:
Product type
Ferrule
Cross section per core
0.75 mm²
Sleeve length
10 mm
Insulation type
Partially insulated
Content
100 pc(s)
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 5.03
5
6% = € 0.32
€ 4.71
10
9% = € 0.46
€ 4.57
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 0.05 / piece)
€ 5.03
plus VAT.
14-day return policy included
Highlights & Details
Insulation Wire-end sleeve 0,75mm² x 10mm, gray
- 16 mm
- Grey
Technical specifications
- Nominal cross-section: 0.75 mm²
- Surface protection: Tin-plated
- Material: Copper
- Colour: grey.
- Insulated: ✓
- Halogen-free: ✓
- Bandware: ×
- Total length 16 mm.
- Design: Standard
- For short-circuit proof lines: ×
- Insulation material: Polypropylene (PP)
- Sleeve length 10 mm
- With marking tag: ×
- Product type
Ferrule
- Cross section per core
0.75 mm²
- Sleeve length
10 mm
- Insulation type
Partially insulated
- Factory colour
Grey
- Content
100 pc(s)
- Contact material
Copper silver plated
- Manufacturer part #
187005
- Insulation material
Polypropylene (PP)
- Length
16 mm
- Cross-section x Length
0.75 mm² x 10 mm
- Type
Isol. Aderendh. 0,75mm²x10mm,grau
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3394482 Cimco 187005 Ferrule 0.75 mm² Partially insulated Grey 100 pc(s)
User & Safety Instructions
User & Safety Instructions 3394482 Cimco 187005 Ferrule 0.75 mm² Partially insulated Grey 100 pc(s)
Description
Insulated wire-end sleeves according to DIN 46228-4, made of high-quality copper-HP. The surface is galvanically tin-plated with a minimum layer thickness of 3 µm for maximum corrosion protection. The plastic collar made of polypropylene provides for a simple insertion of copper conductor. Temperature resistant up to 105°C, for cables Class 5 / 6 according to IEC 60228
This text is machine translated.
This text is machine translated.
