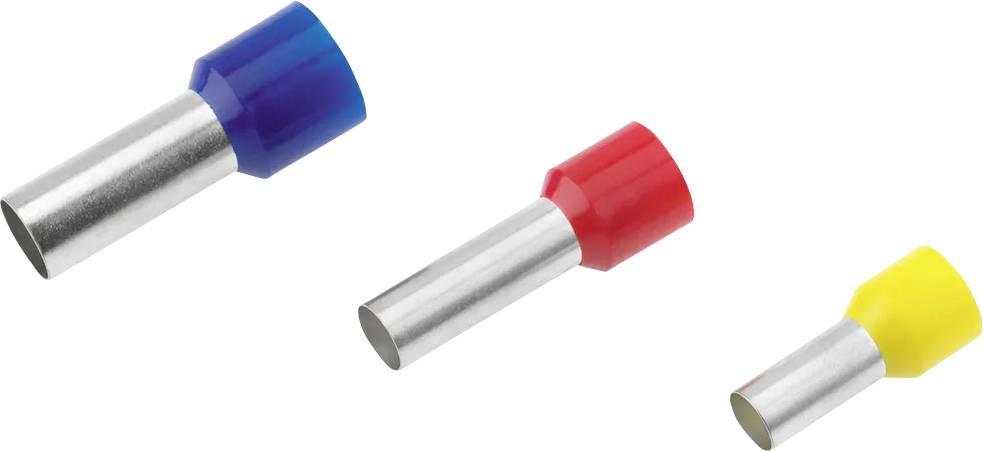

Cimco 187032 Ferrule 35 mm² Partially insulated Red 50 pc(s)
EAN:
Part number:
Item no:
Product type
Ferrule
Cross section per core
35 mm²
Sleeve length
18 mm
Insulation type
Partially insulated
Content
50 pc(s)
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 17.64
3
5% = € 0.88
€ 16.76
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 0.35 / piece)
€ 17.64
plus VAT.
14 days return policy included
Highlights & Details
Insulation Wire-end sleeve 35mm² x 18mm, red
- 30 mm
- Red
Technical specifications
- Nominal cross-section: 35 mm²
- Surface protection: Tin-plated
- Material: Copper
- Colour: red.
- Insulated: ✓
- Halogen-free: ✓
- Bandware: ×
- Total length 30 mm.
- Design: Standard
- For short-circuit proof lines: ×
- Insulation material: Polypropylene (PP)
- Sleeve length 18 mm
- With marking tag: ×
- Product type
Ferrule
- Cross section per core
35 mm²
- Sleeve length
18 mm
- Insulation type
Partially insulated
- Factory colour
Red
- Content
50 pc(s)
- Contact material
Copper silver plated
- Manufacturer part #
187032
- Insulation material
Polypropylene (PP)
- Length
30 mm
- Cross-section x Length
35 mm² x 18 mm
- Type
Isol. Aderendh. 35mm² x 18mm, rot
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3394509 Cimco 187032 Ferrule 35 mm² Partially insulated Red 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3394509 Cimco 187032 Ferrule 35 mm² Partially insulated Red 50 pc(s)
Description
Insulated wire-end sleeves according to DIN 46228-4, made of high-quality copper-HP. The surface is galvanically tin-plated with a minimum layer thickness of 3 µm for maximum corrosion protection. The plastic collar made of polypropylene provides for a simple insertion of copper conductor. Temperature resistant up to 105°C, for cables Class 5 / 6 according to IEC 60228
