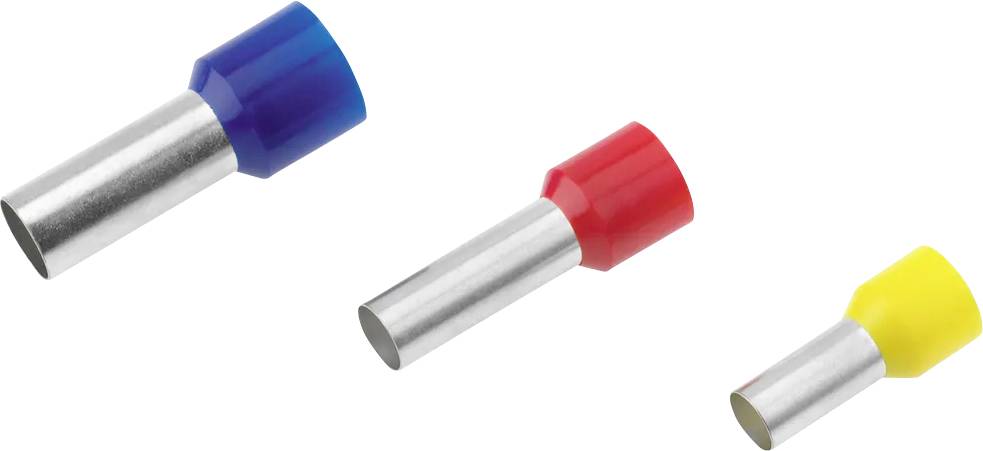

Cimco 187038 Ferrule 120 mm² Partially insulated Blue 25 pc(s)
EAN:
Part number:
Item no:
Product type
Ferrule
Cross section per core
120 mm²
Sleeve length
27 mm
Insulation type
Partially insulated
Content
25 pc(s)
Datasheet (PDF)
Total (€ 1.48 / piece)
€ 36.97
plus VAT.
14-day return policy included
Highlights & Details
Insulation Wire-end sleeve 120mm² x 27mm, blue
- 48 mm
- Blue
Technical specifications
- Nominal cross-section: 120 mm²
- Surface protection: Tin-plated
- Material: Copper
- Colour: Blue
- Insulated: ✓
- Halogen-free: ✓
- Bandware: ×
- Total length 48 mm.
- Design: Standard
- For short-circuit proof lines: ×
- Insulation material: Polypropylene (PP)
- Sleeve length 27 mm
- With marking tag: ×
- Product type
Ferrule
- Cross section per core
120 mm²
- Sleeve length
27 mm
- Insulation type
Partially insulated
- Factory colour
Blue
- Content
25 pc(s)
- Contact material
Copper silver plated
- Manufacturer part #
187038
- Insulation material
Polypropylene (PP)
- Length
48 mm
- Cross-section x Length
120 mm² x 27 mm
- Type
Isol. Aderendh. 120mm² x 27mm,blau
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3394515 Cimco 187038 Ferrule 120 mm² Partially insulated Blue 25 pc(s)
User & Safety Instructions
User & Safety Instructions 3394515 Cimco 187038 Ferrule 120 mm² Partially insulated Blue 25 pc(s)
Description
Insulated wire-end sleeves made from high quality copper-HP. The surface is galvanically tin-plated with a minimum layer thickness of 3 µm for maximum corrosion protection. The plastic collar made of polypropylene provides for a simple insertion of copper conductor. Temperature resistant up to 105°C, for cables Class 5 / 6 according to IEC 60228
