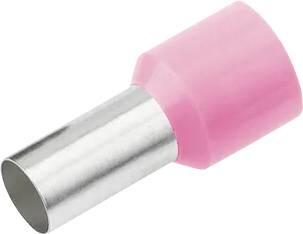

Cimco 187104 Ferrule 0.34 mm² Partially insulated Rose 100 pc(s)
EAN:
Part number:
Item no:
Product type
Ferrule
Cross section per core
0.34 mm²
Sleeve length
6 mm
Insulation type
Partially insulated
Content
100 pc(s)
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 5.03
5
6% = € 0.32
€ 4.71
10
9% = € 0.46
€ 4.57
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 100 pc(s))
Total (€ 0.05 / piece)
€ 5.03
plus VAT.
14-day return policy included
Highlights & Details
Insulation Wire-end sleeve 0,34mm² x 6mm, pink
- 10 mm
- Rose
Technical specifications
- Nominal cross-section: 0.34 mm²
- Surface protection: Tin-plated
- Material: Copper
- Colour: pink
- Insulated: ✓
- Halogen-free: ✓
- Bandware: ×
- Total length 10 mm.
- Design: Standard
- For short-circuit proof lines: ×
- Insulation material: Polypropylene (PP)
- Sleeve length 6 mm
- With marking tag: ×
- Product type
Ferrule
- Cross section per core
0.34 mm²
- Sleeve length
6 mm
- Insulation type
Partially insulated
- Factory colour
Rose
- Content
100 pc(s)
- Contact material
Copper silver plated
- Manufacturer part #
187104
- Insulation material
Polypropylene (PP)
- Length
10 mm
- Cross-section x Length
0.34 mm² x 6 mm
- Type
Isol. Aderendh. 0,34mm² x 6mm,rosa
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3394521 Cimco 187104 Ferrule 0.34 mm² Partially insulated Rose 100 pc(s)
User & Safety Instructions
User & Safety Instructions 3394521 Cimco 187104 Ferrule 0.34 mm² Partially insulated Rose 100 pc(s)
Description
Insulated wire-end sleeves made from high quality copper-HP. The surface is galvanically tin-plated with a minimum layer thickness of 3 µm for maximum corrosion protection. The plastic collar made of polypropylene provides for a simple insertion of copper conductor. Temperature resistant up to 105°C, for cables Class 5 / 6 according to IEC 60228
