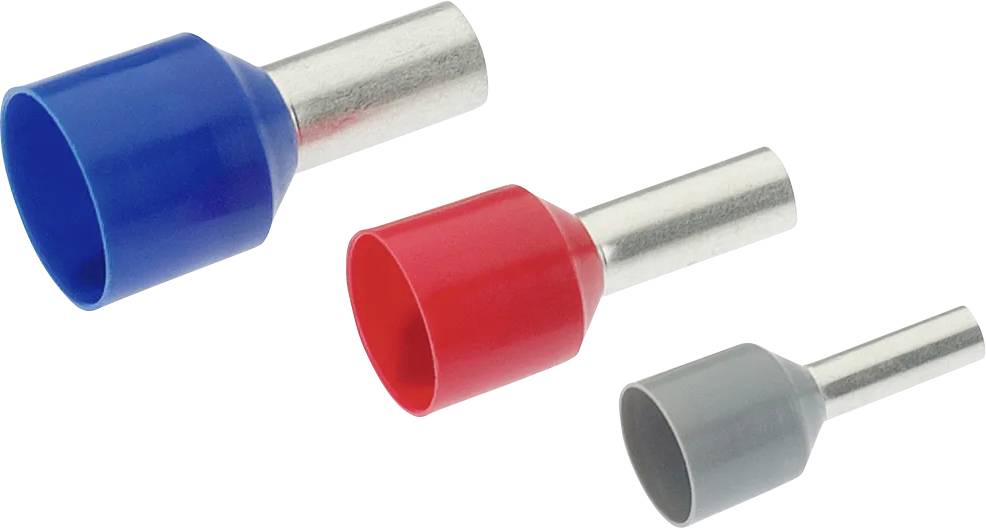

Cimco 187302 Ferrule 2.5 mm² Partially insulated Blue 100 pc(s)
EAN:
Part number:
Item no:
Product type
Ferrule
Cross section per core
2.5 mm²
Sleeve length
8 mm
Insulation type
Partially insulated
Content
100 pc(s)
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 0.10 / piece)
€ 10.08
plus VAT.
Highlights & Details
Insulation Wire-end sleeve 2.5mm² x 8 mm, blue
- 17.5 mm
- Blue
Technical specifications
- Nominal cross-section: 2.5 mm²
- Surface protection: Tin-plated
- Material: Copper
- Colour: Blue
- Insulated: ✓
- Halogen-free: ✓
- Bandware: ×
- Length: 17.5 mm.
- Design: Standard
- For short-circuit proof lines: ✓
- Insulation material: Polypropylene (PP)
- Sleeve length 8 mm
- With marking tag: ×
- Product type
Ferrule
- Cross section per core
2.5 mm²
- Sleeve length
8 mm
- Insulation type
Partially insulated
- Factory colour
Blue
- Content
100 pc(s)
- Contact material
Copper silver plated
- Manufacturer part #
187302
- Insulation material
Polypropylene (PP)
- Length
17.5 mm
- Cross-section x Length
2.5 mm² x 8 mm
- Type
Isol. Aderendh. 2,5mm² x 8 mm, blau
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3394599 Cimco 187302 Ferrule 2.5 mm² Partially insulated Blue 100 pc(s)
User & Safety Instructions
User & Safety Instructions 3394599 Cimco 187302 Ferrule 2.5 mm² Partially insulated Blue 100 pc(s)
Description
Insulated wire-end sleeves for short-circuit proof cables up to 3 kV with stronger insulation sheathing, made of high-quality copper-HP. The surface is galvanically tin-plated with a minimum layer thickness of 3 µm for maximum corrosion protection. The plastic collar has a significantly larger design, so that even wider cable insulation can be fitted under the collar. Temperature resistant up to 105°C, for cables Class 5 / 6 according to IEC 60228
