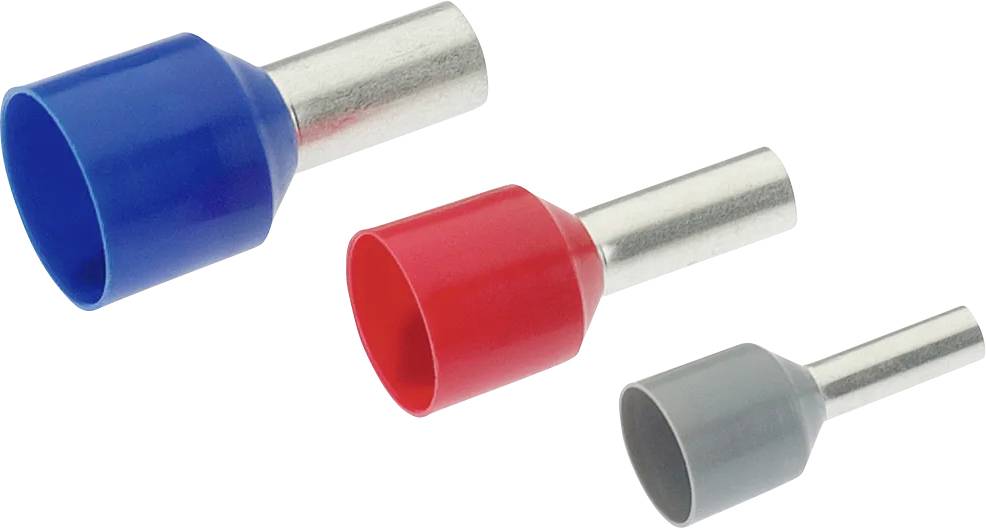

Cimco 187306 Ferrule 10 mm² Partially insulated Red 100 pc(s)
EAN:
Part number:
Item no:
Product type
Ferrule
Cross section per core
10 mm²
Sleeve length
10 mm
Insulation type
Partially insulated
Content
100 pc(s)
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 21.00
3
4% = € 0.92
€ 20.08
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 100 pc(s))
Total (€ 0.21 / piece)
€ 21.00
plus VAT.
Only 2 Set(s) available
Highlights & Details
Insulation Wire-end sleeve 10mm² x 12 mm, red
- 17 mm
- Red
Technical specifications
- Nominal cross-section: 10 mm²
- Surface protection: Tin-plated
- Material: Copper
- Colour: red.
- Insulated: ✓
- Halogen-free: ✓
- Bandware: ×
- Total length 17 mm.
- Design: Standard
- For short-circuit proof lines: ✓
- Insulation material: Polypropylene (PP)
- Sleeve length 10 mm
- With marking tag: ×
- Product type
Ferrule
- Cross section per core
10 mm²
- Sleeve length
10 mm
- Insulation type
Partially insulated
- Factory colour
Red
- Content
100 pc(s)
- Contact material
Copper silver plated
- Manufacturer part #
187306
- Insulation material
Polypropylene (PP)
- Length
17 mm
- Cross-section x Length
10 mm² x 10 mm
- Type
Isol. Aderendh. 10mm² x 12 mm, rot
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3394603 Cimco 187306 Ferrule 10 mm² Partially insulated Red 100 pc(s)
User & Safety Instructions
User & Safety Instructions 3394603 Cimco 187306 Ferrule 10 mm² Partially insulated Red 100 pc(s)
Description
Insulated wire-end sleeves for short-circuit proof cables up to 3 kV with stronger insulation sheathing, made of high-quality copper-HP. The surface is galvanically tin-plated with a minimum layer thickness of 3 µm for maximum corrosion protection. The plastic collar has a significantly larger design, so that even wider cable insulation can be fitted under the collar. Temperature resistant up to 105°C, for cables Class 5 / 6 according to IEC 60228
