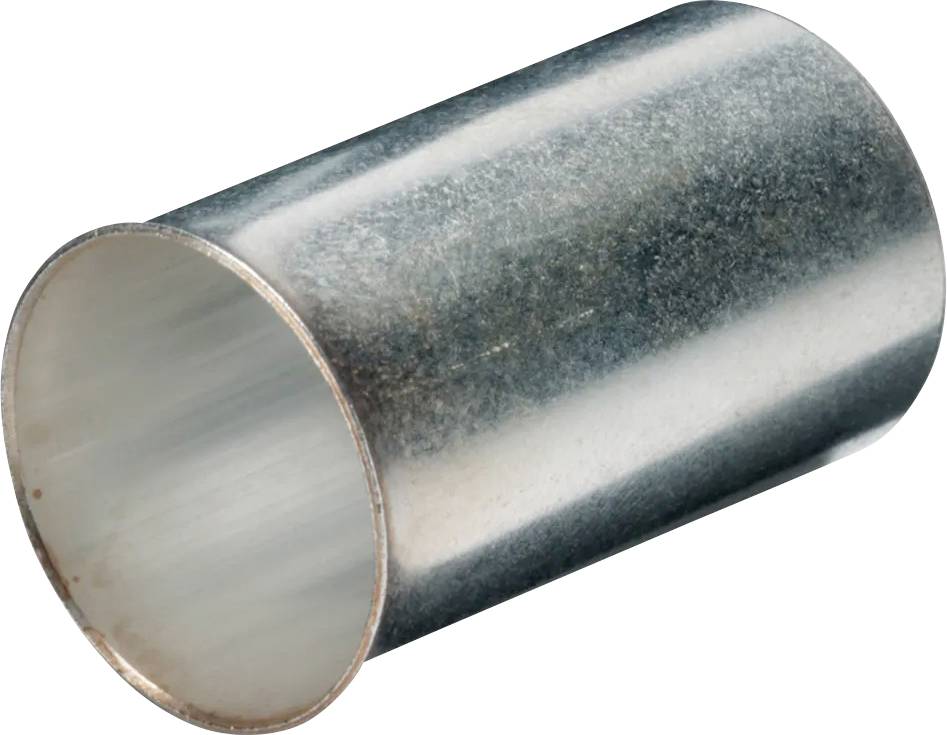

Cimco 187463 Ferrule 35 mm² Not insulated Tin 100 pc(s)
EAN:
Part number:
Item no:
Product type
Ferrule
Cross section per core
35 mm²
Sleeve length
22 mm
Insulation type
Not insulated
Content
100 pc(s)
Datasheet (PDF)
Number (Package size 100 pc(s))
Total (€ 0.14 / piece)
€ 14.28
plus VAT.
Only 3 Set(s) available
Highlights & Details
Wire-end sleeve uninsulated 35 mm2 x 22 mm
- 22 mm
- Tin
Technical specifications
- Nominal cross-section: 35 mm²
- Surface protection: Tin-plated
- Material: Copper
- Colour: Tin
- Insulated: ×
- Halogen-free: ✓
- Bandware: ×
- Total length 22 mm.
- Design: Standard
- For short-circuit proof lines: ×
- Sleeve length 22 mm
- With marking tag: ×
- Product type
Ferrule
- Cross section per core
35 mm²
- Sleeve length
22 mm
- Insulation type
Not insulated
- Factory colour
Tin
- Content
100 pc(s)
- Contact material
Copper silver plated
- Manufacturer part #
187463
- Length
22 mm
- Cross-section x Length
35 mm² x 22 mm
- Type
Aderendhülse unisol. 35mm² x 22mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3394460 Cimco 187463 Ferrule 35 mm² Not insulated Tin 100 pc(s)
User & Safety Instructions
User & Safety Instructions 3394460 Cimco 187463 Ferrule 35 mm² Not insulated Tin 100 pc(s)
Description
Non-insulated wire-end sleeves made from high quality copper-HP. The surface is galvanically tin-plated with a minimum layer thickness of 3 µm for maximum corrosion protection
