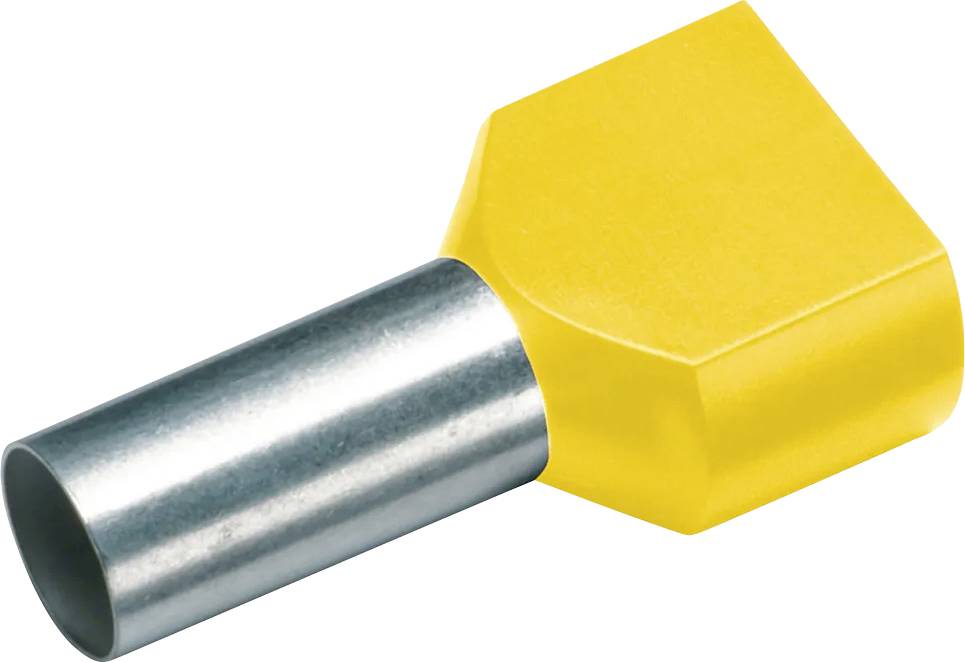

Cimco 187712 Twin ferrule 6 mm² Partially insulated Yellow 100 pc(s)
EAN:
Part number:
Item no:
Product type
Twin ferrule
Cross section per core
6 mm²
Sleeve length
14 mm
Insulation type
Partially insulated
Content
100 pc(s)
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 17.64
3
5% = € 0.88
€ 16.76
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 100 pc(s))
Total (€ 0.18 / piece)
€ 17.64
plus VAT.
Only 6 Set(s) available
Highlights & Details
Intermediate wire end sleeves 2 x 6 mm² x 14 mm yellow
- 26 mm
- Yellow
Technical specifications
- Nominal cross-section: 6 mm²
- Surface protection: Tin-plated
- Material: Copper
- Colour: yellow.
- Insulated: ✓
- Halogen-free: ✓
- Bandware: ×
- Total length 26 mm.
- Twin ferrule
- For short-circuit proof lines: ×
- Insulation material: Polypropylene (PP)
- Sleeve length 14 mm
- With marking tag: ×
- Product type
Twin ferrule
- Cross section per core
6 mm²
- Sleeve length
14 mm
- Insulation type
Partially insulated
- Factory colour
Yellow
- Content
100 pc(s)
- Contact material
Copper silver plated
- Manufacturer part #
187712
- Insulation material
Polypropylene (PP)
- Length
26 mm
- Cross-section x Length
6 mm² x 14 mm
- Type
Zw.Aderendh. 2x6,0mm² x 14mm, gelb
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3394617 Cimco 187712 Twin ferrule 6 mm² Partially insulated Yellow 100 pc(s)
User & Safety Instructions
User & Safety Instructions 3394617 Cimco 187712 Twin ferrule 6 mm² Partially insulated Yellow 100 pc(s)
Description
Insulated twin cable end sleeves, made from high quality copper-HP. The surface is galvanically tin-plated with a minimum layer thickness of 3 µm for maximum corrosion protection. The plastic collar made of polypropylene provides for a simple insertion of copper conductor. Temperature resistant up to 105°C, for cables Class 5 / 6 according to IEC 60228
