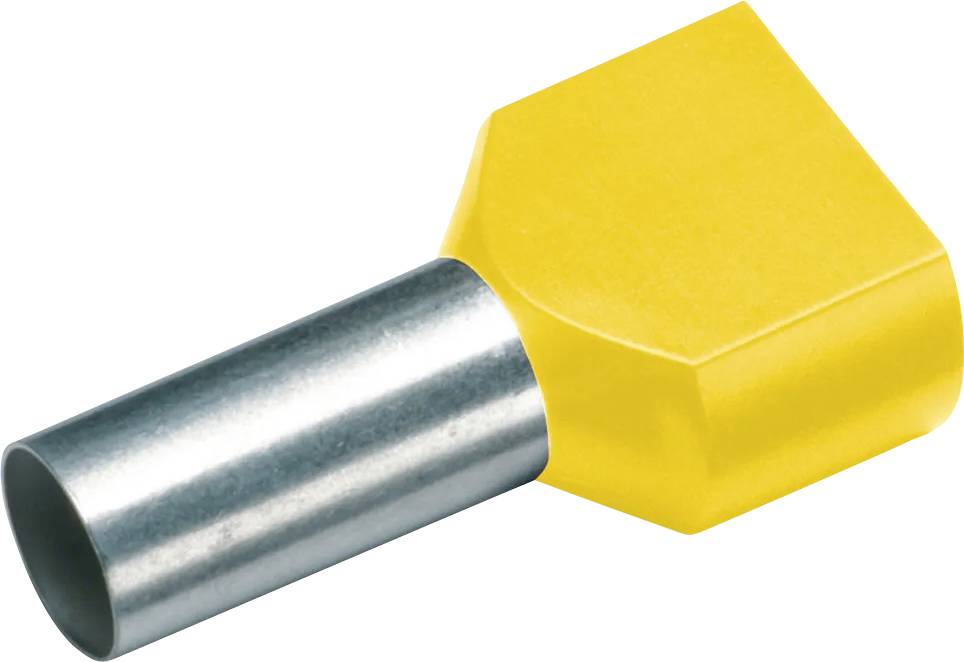

Cimco 187736 Twin ferrule 1 mm² Partially insulated Yellow 100 pc(s)
EAN:
Part number:
Item no:
Product type
Twin ferrule
Cross section per core
1 mm²
Sleeve length
10 mm
Insulation type
Partially insulated
Content
100 pc(s)
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 6.71
5
6% = € 0.41
€ 6.30
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 100 pc(s))
Total (€ 0.07 / piece)
€ 6.71
plus VAT.
Only 5 Set(s) available
Highlights & Details
Intermediate wire end sleeves 2 x 1 mm² x 10 mm yellow
- 17 mm
- Yellow
Technical specifications
- Nominal cross-section: 1 mm²
- Surface protection: Tin-plated
- Material: Copper
- Colour: yellow.
- Insulated: ✓
- Halogen-free: ✓
- Bandware: ×
- Total length 17 mm.
- Twin ferrule
- For short-circuit proof lines: ×
- Insulation material: Polypropylene (PP)
- Sleeve length 10 mm
- With marking tag: ×
- Product type
Twin ferrule
- Cross section per core
1 mm²
- Sleeve length
10 mm
- Insulation type
Partially insulated
- Factory colour
Yellow
- Content
100 pc(s)
- Contact material
Copper silver plated
- Manufacturer part #
187736
- Insulation material
Polypropylene (PP)
- Length
17 mm
- Cross-section x Length
1 mm² x 10 mm
- Type
Zw.Aderendh. 2x1,0mm² x 10mm, gelb
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3394640 Cimco 187736 Twin ferrule 1 mm² Partially insulated Yellow 100 pc(s)
User & Safety Instructions
User & Safety Instructions 3394640 Cimco 187736 Twin ferrule 1 mm² Partially insulated Yellow 100 pc(s)
Description
Insulated twin cable end sleeves, made from high quality copper-HP. The surface is galvanically tin-plated with a minimum layer thickness of 3 µm for maximum corrosion protection. The plastic collar made of polypropylene provides for a simple insertion of copper conductor. Temperature resistant up to 105°C, for cables Class 5 / 6 according to IEC 60228
This text is machine translated.
This text is machine translated.
