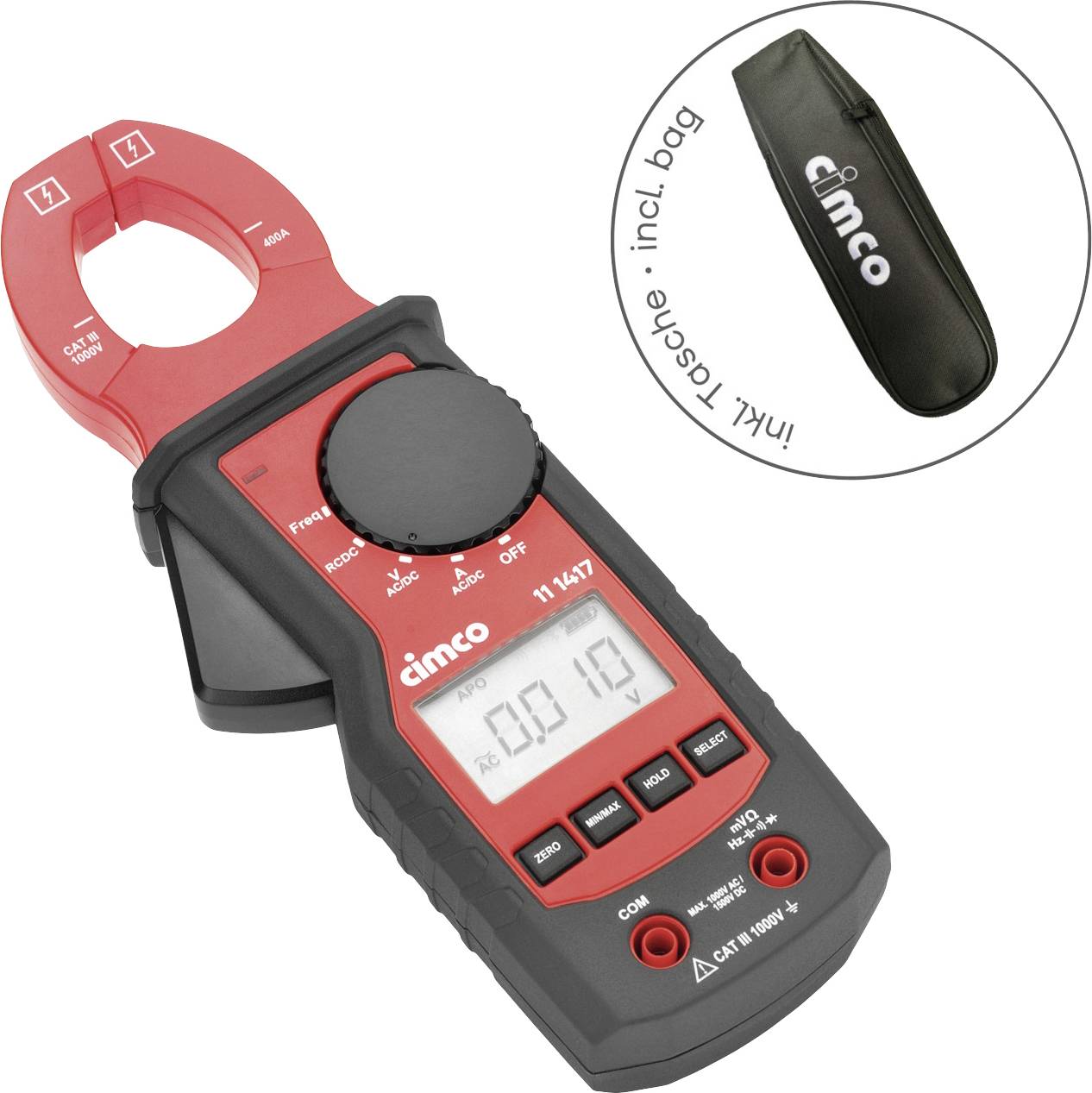

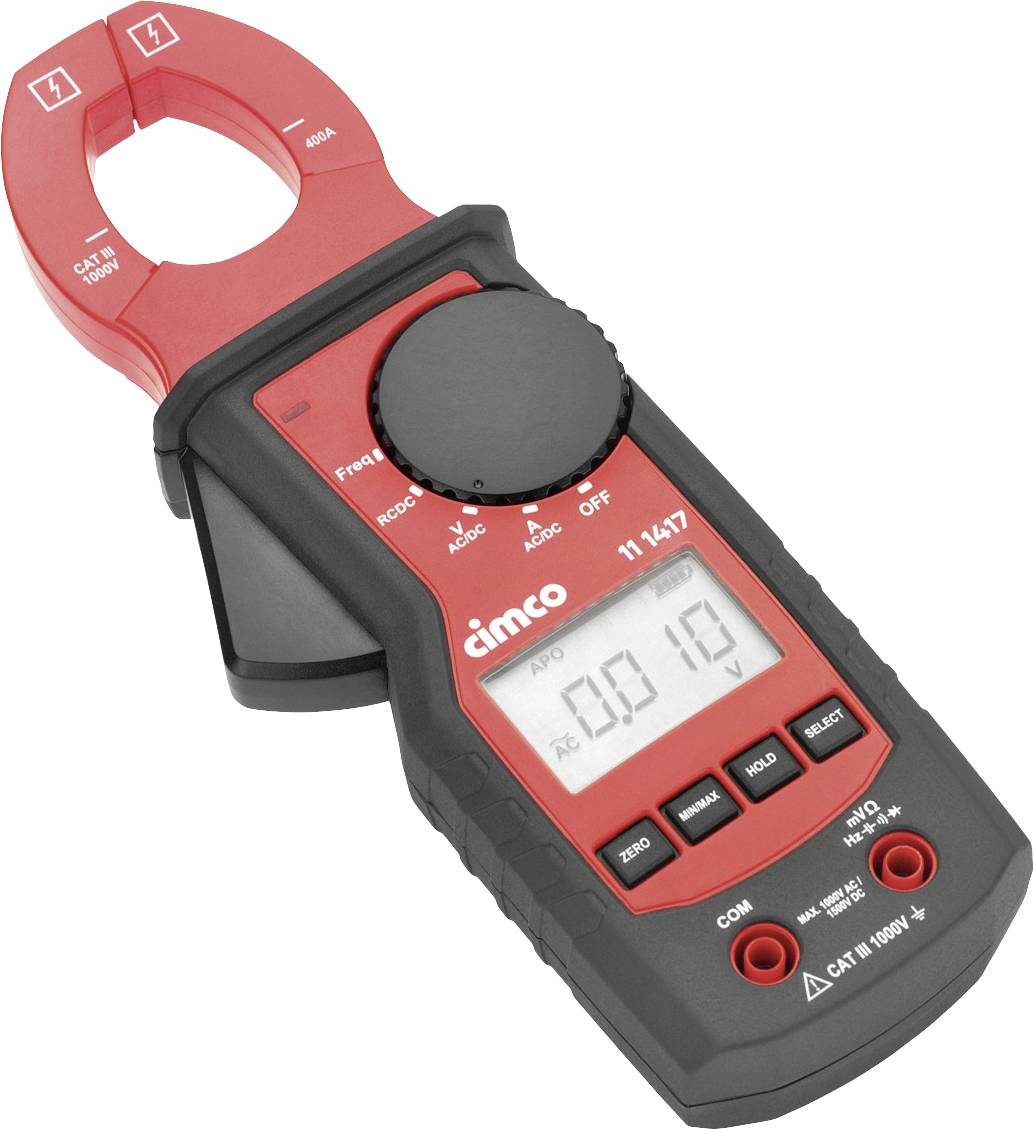

Cimco 3100 Clamp meter Digital incl. bag CAT III 1000 V
EAN:
Part number:
Item no:
Highlights & Details
AC/DC clip-on ammeter 3100 incl. bag
- CAT III 1000 V
Technical specifications
- Product type
Clamp meter
- Voltage DC reading range (max.)
1500 V
- V AC reading range (max.)
1000 V
- Amperage reading range DC (min.)
10 A
- A DC reading range (max.)
400 A
- A AC reading range (min.)
10 A
- Amperage reading range AC (max.)
400 A
- Measurement type (details)
True RMS
- Height
90.0000 mm
- Width
230.0000 mm
- Weight
0.3000
Manufacturer's standards (no certificate)
- Reading category
CAT III 1000 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
3100
- Display
Digital
- Dim
(W x H) 230.0000 mm x 90.0000 mm
- Features
incl. bag
- Opening range of current clamps
35 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3203494 Cimco 3100 Clamp meter Digital incl. bag CAT III 1000 V
Description
AC/DC current clamp 3100 CAT III/1000 V. Current measurement AC/DC up to 400A, voltage measurement up to 1000 V AC and 1500 V DC. Measurement of resistance (..40 MOhm), capacity (10 nF..100 uF) and frequency (..10MHz). Diode test and continuity check. With automatic switch-off and self-test function. Inclusive 2 test leads and 2 batteries Includes bag
