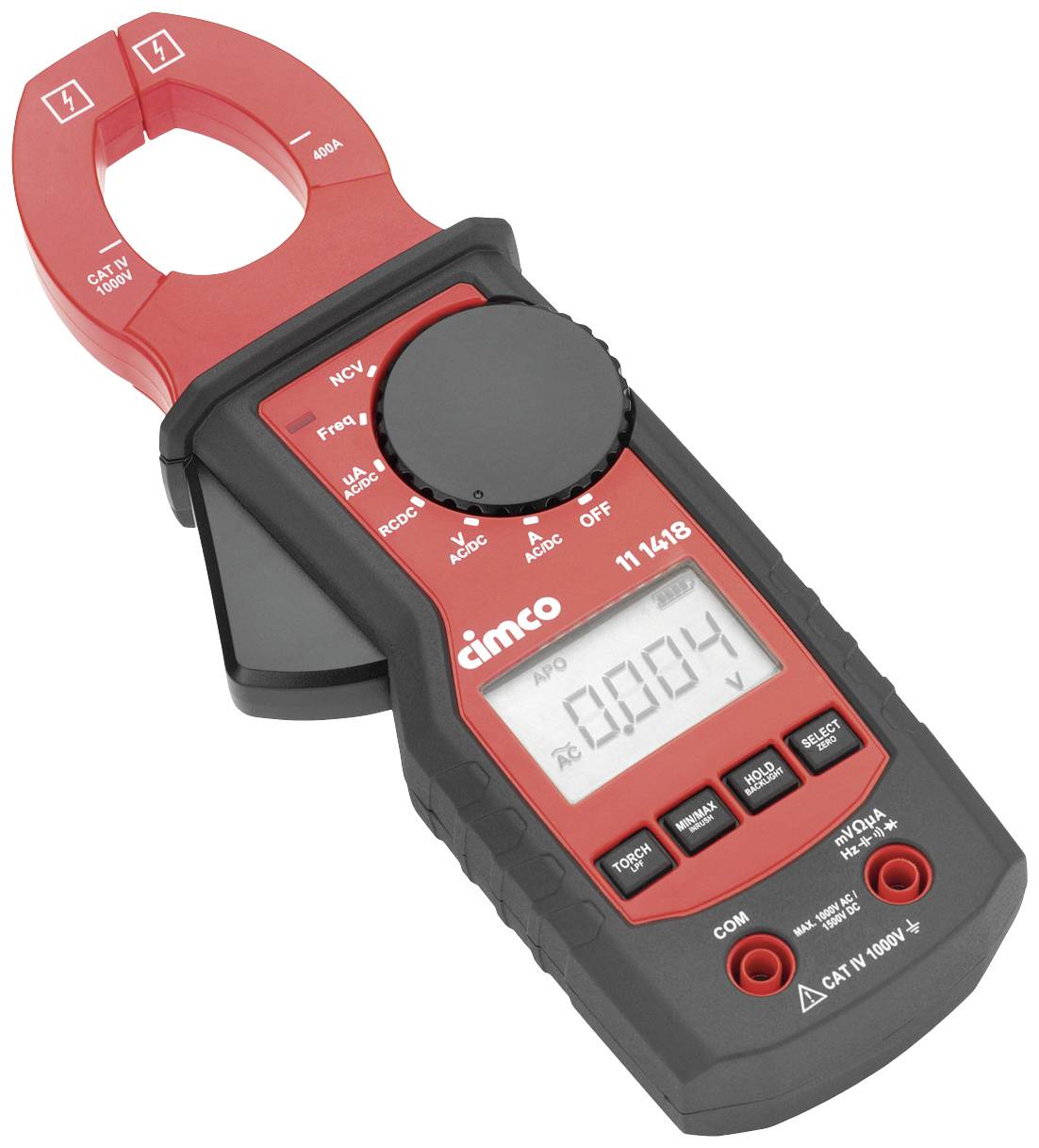

Cimco 4100 Clamp meter Digital incl. testing cable CAT IV 1000 V
EAN:
Part number:
Item no:
Highlights & Details
4100
- CAT IV 1000 V
Technical specifications
- Product type
Clamp meter
- Voltage DC reading range (max.)
1500 V
- V AC reading range (max.)
1000 V
- Amperage reading range DC (min.)
10 A
- A DC reading range (max.)
400 A
- A AC reading range (min.)
10 A
- Amperage reading range AC (max.)
400 A
- Reading range - resistance
Up to 40 MΩ
- Reading range - capacity
10 - 100 µF
- Frequency reading range
Till 10 MHz
- Measurement type (details)
True RMS
- Height
90.0000 mm
- Width
230.0000 mm
- Weight
0.2700
Manufacturer's standards (no certificate)
- Reading category
CAT IV 1000 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
4100
- Display
Digital
- Dim
(W x H) 230.0000 mm x 90.0000 mm
- Features
incl. testing cable
- Opening range of current clamps
35 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3203484 Cimco 4100 Clamp meter Digital incl. testing cable CAT IV 1000 V
Description
AC/DC current clamp 4100 TRMS CAT IV/1000 V - CAT III/1500 V for highest safety. Current measurement AC / DC to 400A, Voltage measurement up to 1000 V AC and 1500 V DC, µA AC / DC measurement for HVAC. Measurement of resistance (..40 MOhm), capacity (10 nF..100 uF) and frequency (..10MHz). TRMS, contact-free voltage detection (NCV), LPF, diode test and continuity test. With automatic switch-off and self-test function. Torch, LCD display with illumination. Inclusive 2 test leads and 2 batteries
