Cimco Abisolierer PV-STRIP Pro 1,5-16 qmm 120057 Electrician Cable stripper tool 1.50 up to 16 mm² 6 up to 16 awg 5 up t
EAN:
Part number:
Item no:
Highlights & Details
Stripper PV-STRIP Pro
- 1.5 - 16 mm2 Length stop 5-26 mm
Technical specifications
- Product type
Cable stripper tool
- Suitable for
Solar cables
- Operating range (diameter)
5 up to 26 mm
- Working area diameter (min.)
5 mm
- Operating range (diameter) (max.)
26 mm
- Working area (cross section)
1.50 up to 16 mm²
- Working area cross section (min.)
1.50 mm²
- Operating range (cross section) (max.)
16 mm²
- Operating range (AWG diameter)
6 up to 16 awg
- Range of use
Electrician
- Operating range (AWG cross section) (min.)
16 awg
- Operating range (AWG cross section) (max.)
6 awg
- Length stop range
5 up to 26 mm
- Length stop (min.)
5 mm
- Length stop (max.)
26 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3350559 Cimco Abisolierer PV-STRIP Pro 1,5-16 qmm 120057 Electrician Cable stripper tool 1.50 up to 16 mm² 6 up to 16 awg 5 up t
Description

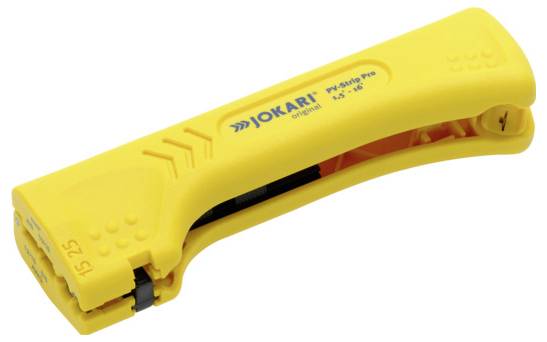

PV-STRIP Pro, cable stripper for solar, safety and power cables from 1.5 - 16mm² (16 - 6 AWG). Four-chamber system for easy handling of different cross-sections (1.5 mm² / 2.5 mm² / 4 mm² + 6 mm² / 10 mm² + 16 mm²). Length stop suitable for each solar plug adjustable from 5-26mm. Additional blade for executing a longitudinal cut. Ergonomic design and low weight, suitable for left and right-handed persons.
