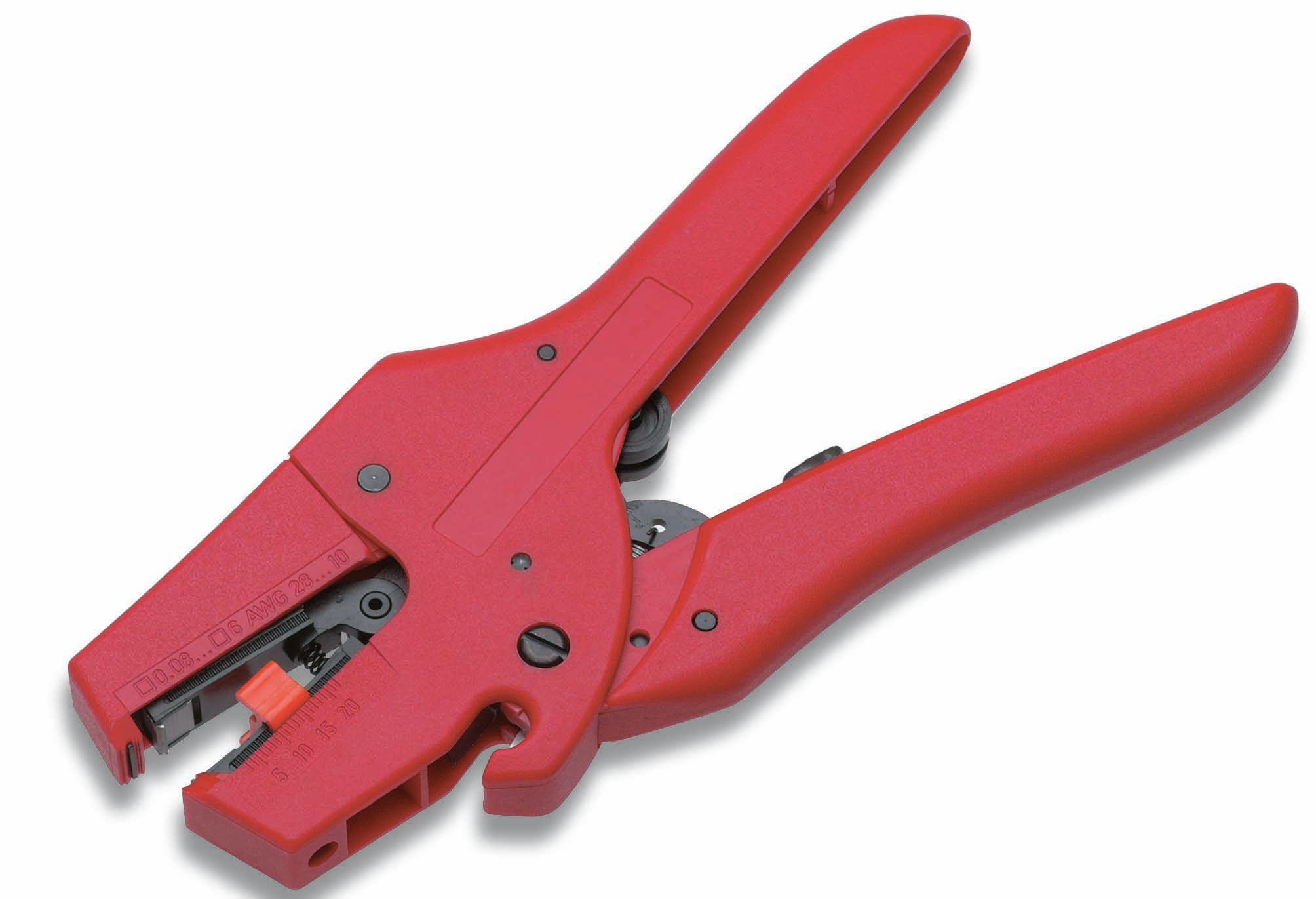

Cimco Cimco Werkzeuge 100730 Automatic stripper 0.08 up to 6 mm² 9 up to 28 0.32 up to 3 mm
EAN:
Part number:
Item no:
Technical specifications
- Product type
Automatic stripper
- Suitable for
Stranded cables
Cables
- Operating range (diameter)
0.32 up to 3 mm
- Working area diameter (min.)
0.32 mm
- Operating range (diameter) (max.)
3 mm
- Working area (cross section)
0.08 up to 6 mm²
- Working area cross section (min.)
0.08 mm²
- Operating range (cross section) (max.)
6 mm²
- Operating range (AWG diameter)
9 up to 28
- Operating range (AWG cross section) (min.)
28
- Operating range (AWG cross section) (max.)
9 awg
- Length stop range
4 up to 18 mm
- Length stop (min.)
4 mm
- Length stop (max.)
18 mm
- Length
232 mm
- Width
79 mm
- Weight
173 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 809440 Cimco Cimco Werkzeuge 100730 Automatic stripper 0.08 up to 6 mm² 9 up to 28 0.32 up to 3 mm
Description
Automatic wire stripper for flexible braids and solid conductors from 0.08 - 6 mm2. Mains separation takes place automatically
Features
- Stripping length adjustable from 4 - 18 mm
- With wire cutter.
Hints
This text is machine translated.
