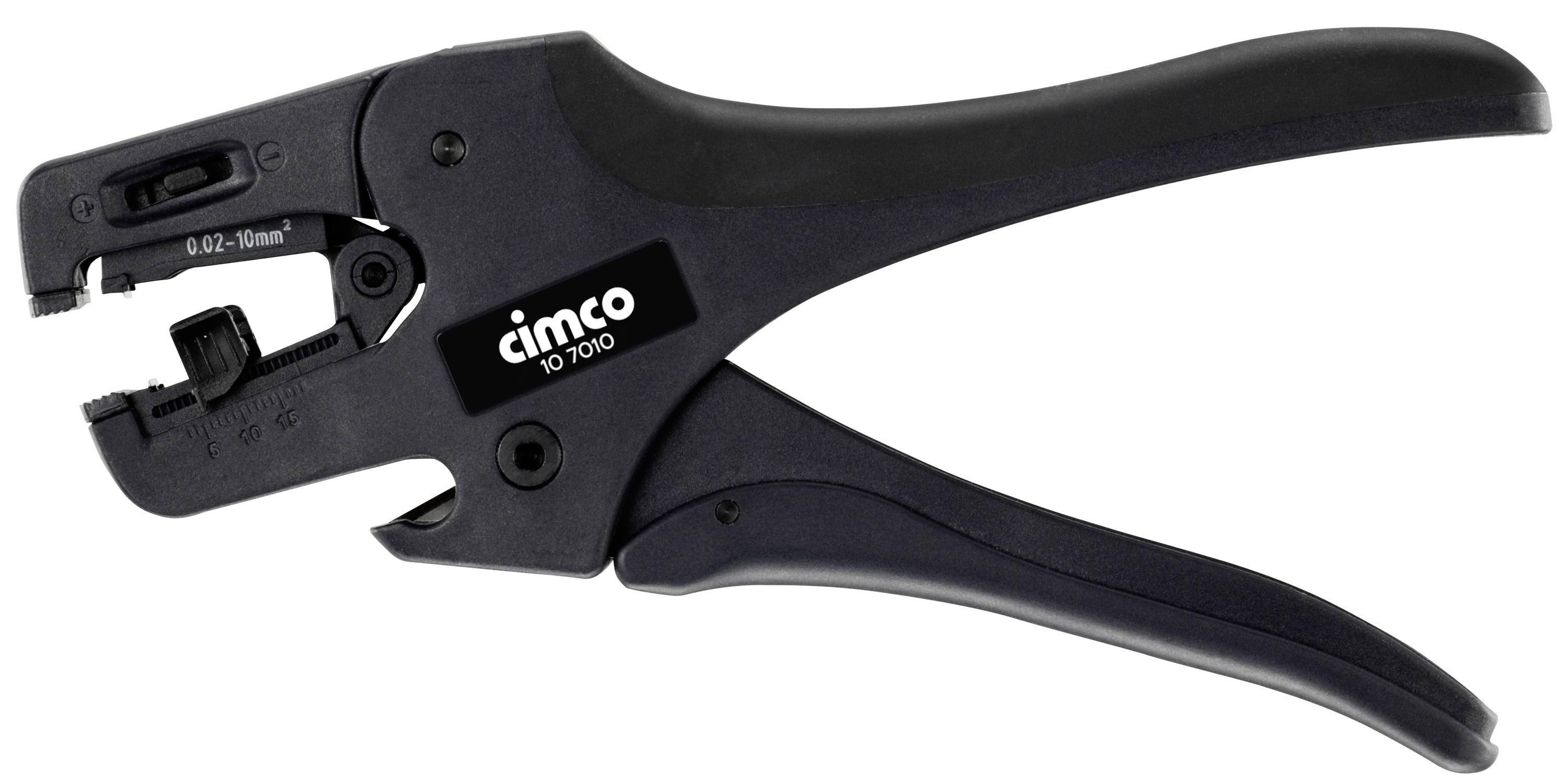

Cimco Flexi-Strip 10 107010 Electrician Automatic stripper 0.02 up to 10 mm² 24 (min) Suitable for brand (pliers) Cimco
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Automatic wire stripper Flexible STRIP 10
- For PVC cables 0,02-10 mm²
Technical specifications
- Product type
Automatic stripper
- Suitable for
PVC-coated cables
- Working area (cross section)
0.02 up to 10 mm²
- Working area cross section (min.)
0.02 mm²
- Operating range (cross section) (max.)
10 mm²
- Operating range (AWG diameter)
24 (min)
- Range of use
Electrician
- Operating range (AWG cross section) (min.)
24
- Length stop range
3 up to 18 mm
- Length stop (min.)
3 mm
- Length stop (max.)
18 mm
- Suitable for
Cimco
- Width
197.0000 mm
- Weight
161.00
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2987747 Cimco Flexi-Strip 10 107010 Electrician Automatic stripper 0.02 up to 10 mm² 24 (min) Suitable for brand (pliers) Cimco
User & Safety Instructions
User & Safety Instructions 2987747 Cimco Flexi-Strip 10 107010 Electrician Automatic stripper 0.02 up to 10 mm² 24 (min) Suitable for brand (pliers) Cimco
Description
The FLEXI-STRIP 10 is a self-adjusting cutting and stripping tool for the cross-section range 0.02 - 10 mm², with an adjustable stripping length of 3 - 18 mm. Fine adjustment of the straight blade allows you to easily remove thin, thick cable insulation without damaging the conductor. In addition to its ergonomic design, the Flexi-STRIP 10 also boasts a robust frame and a reliable mechanism. Both were tested for over 150,000 stripping operations (with 1.5 mm²/PVC lines). The long-lasting cutting function offers the possibility of cutting flexible conductors up to 10 mm² and rigid conductors up to 1.5 mm². The stripping cassettes can be changed without tools, in order to offer the best comfort for different cross-section ranges.
