Cimco Flexi-Strip 16 107000 Universal Automatic stripper Fine adjustment 0.02 up to 16 mm²
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Automatic stripper FLEXI-STRIP 16 System
- 2 Inserts 0.02-10/4-16 mm², f. PVC cable
Technical specifications
- Product type
Automatic stripper
- Suitable for
Plastic-coated cables
- Working area (cross section)
0.02 up to 16 mm²
- Working area cross section (min.)
0.02 mm²
- Operating range (cross section) (max.)
16 mm²
- Range of use
Universal
- Length stop range
3 up to 18 mm
- Length stop (min.)
3 mm
- Length stop (max.)
18 mm
- Width
197.0000 mm
- Weight
0.1680
- Features
Fine adjustment
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2986987 Cimco Flexi-Strip 16 107000 Universal Automatic stripper Fine adjustment 0.02 up to 16 mm²
User & Safety Instructions
User & Safety Instructions 2986987 Cimco Flexi-Strip 16 107000 Universal Automatic stripper Fine adjustment 0.02 up to 16 mm²
Description

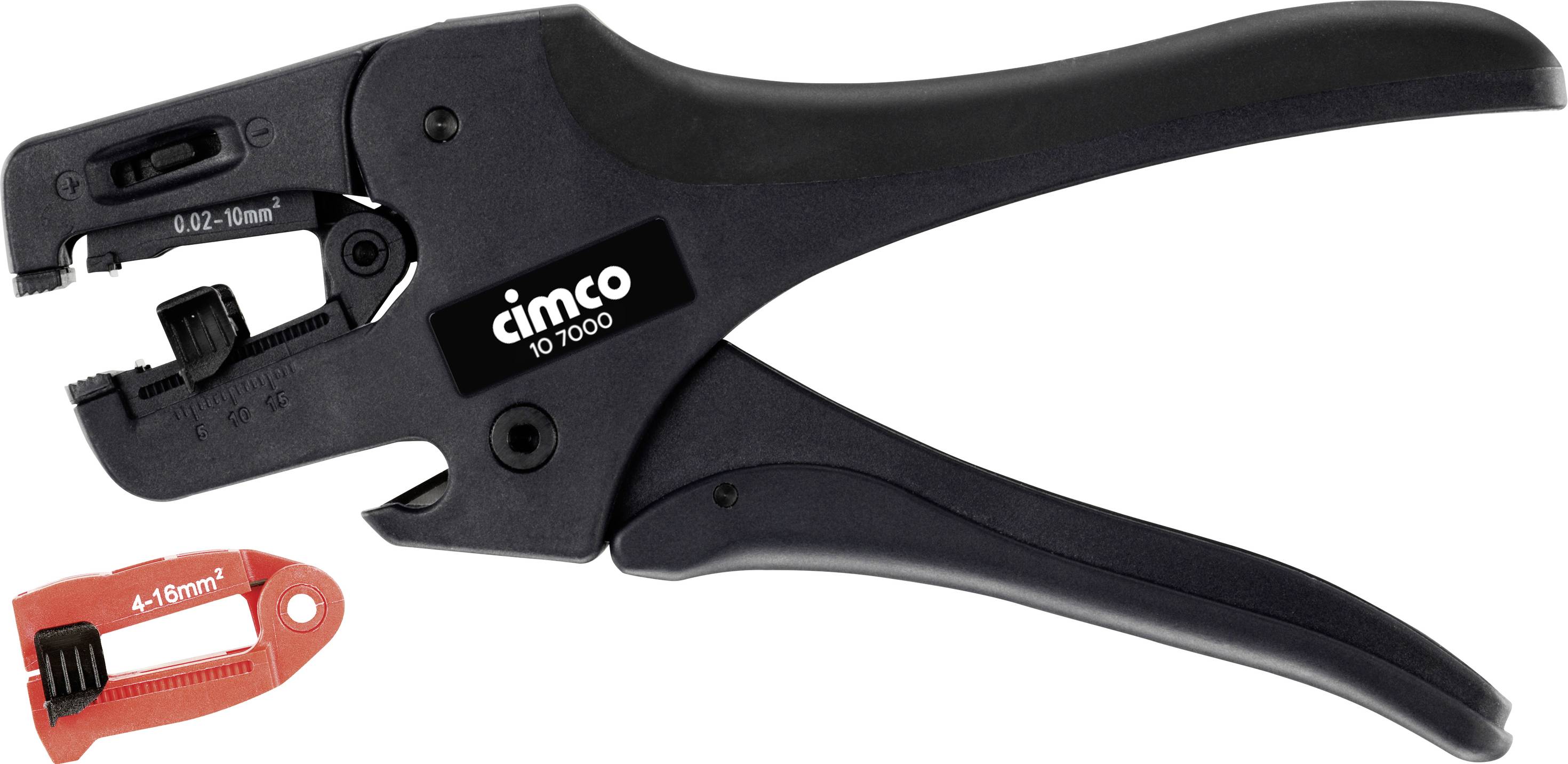

The set FLEXI-STRIP 16 SYSTEM consists of a frame with two different stripping cassettes. It is a self-adjusting cutting and stripping tool for the cross-section range 0.02 - 10 mm² (black cassette) and 4 - 16 mm² (red cassette), with an adjustable stripping length of 3 - 18 mm. Fine adjustment of the blades makes it easy to remove thin, thick cable insulation without damaging the conductor. In addition to its ergonomic design, the FLEXI-STRIP 16 system also has a robust frame and a reliable mechanism. Both were tested for over 150,000 stripping operations (with 1.5 mm²/PVC lines). The long-lasting cutting function offers the possibility of cutting flexible conductors up to 10 mm² and rigid conductors up to 1.5 mm². The stripping cassettes can be changed without tools, in order to offer the best comfort for different cross-section ranges.
