Cimco Flexi-Strip 4 PTFE 107030 Automatic stripper 0.1 up to 4 mm² Suitable for brand (pliers) Cimco
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

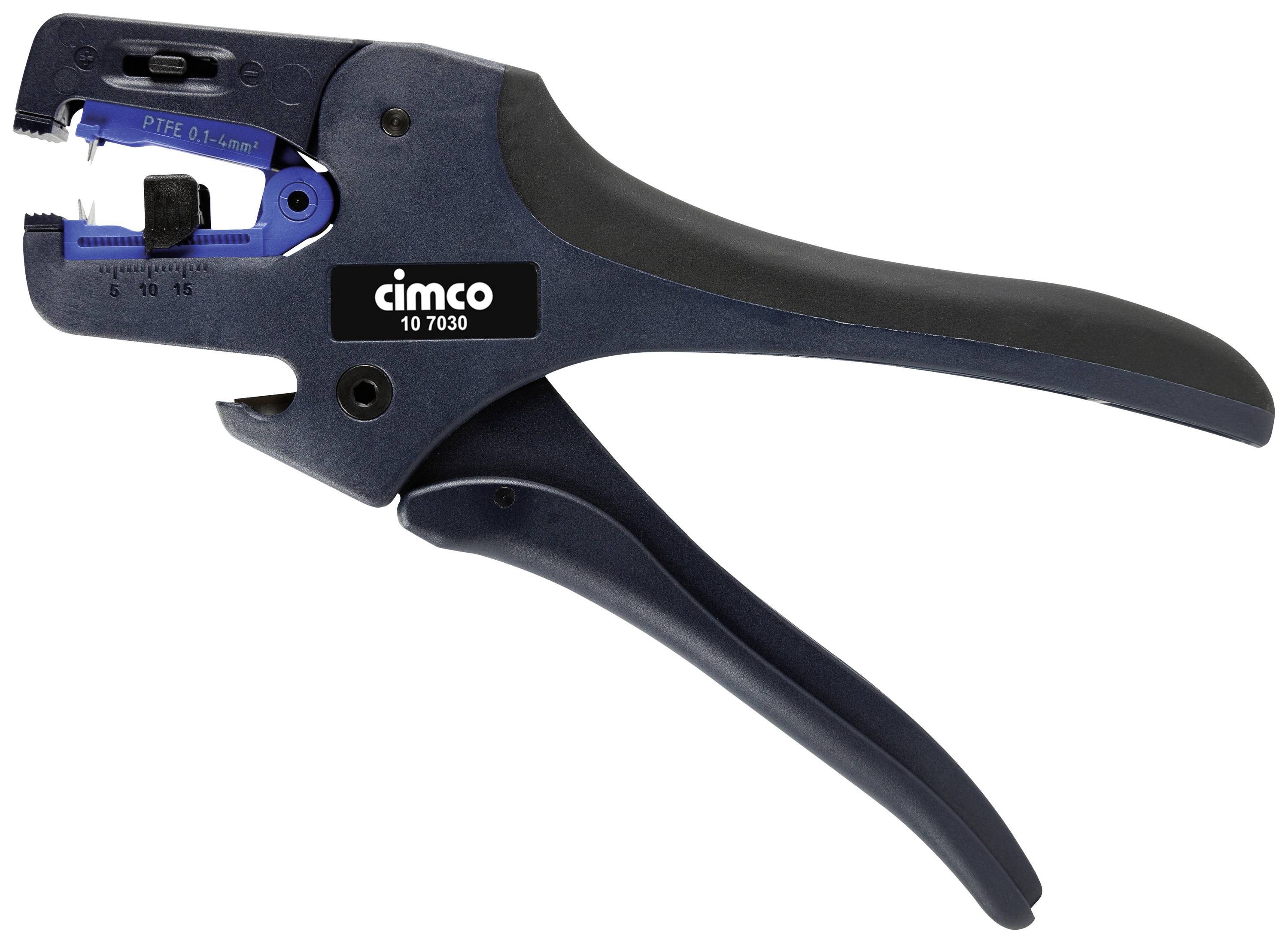

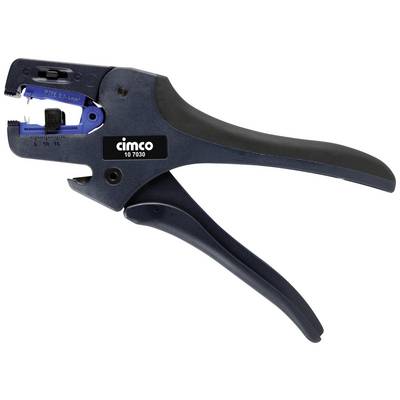

Automatic wire stripper Flexible STRIP 4 PTFE
- For PVC-/PTFE-lines 0,1-4 mm²
Technical specifications
- Product type
Automatic stripper
- Suitable for
PTFE-coated cables
- Working area (cross section)
0.1 up to 4 mm²
- Working area cross section (min.)
0.1 mm²
- Operating range (cross section) (max.)
4 mm²
- Length stop range
3 up to 18 mm
- Length stop (min.)
3 mm
- Length stop (max.)
18 mm
- Suitable for
Cimco
- Width
197.0000 mm
- Weight
0.1610
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2987749 Cimco Flexi-Strip 4 PTFE 107030 Automatic stripper 0.1 up to 4 mm² Suitable for brand (pliers) Cimco
User & Safety Instructions
User & Safety Instructions 2987749 Cimco Flexi-Strip 4 PTFE 107030 Automatic stripper 0.1 up to 4 mm² Suitable for brand (pliers) Cimco
Description
The FLEXI-STRIP 4 PTFE is a self-adjusting cutting and stripping tool for the cross-section range from 0.1 - 4 mm² with an adjustable stripping length from 3 - 18 mm. Fine adjustment of the V-shaped blade allows you to easily remove thin and thick cable insulation without damaging the conductor. The geometry of the blade also enables the insulation of high temperature resistant PTFE lines to be removed. In addition to its ergonomic design, the Flexi-STRIP 16 also boasts a robust frame and a reliable mechanism. The frame has been tested for over 150,000 stripping operations (with 1.5 mm²/PVC lines). The long-lasting cutting function offers the possibility of cutting flexible conductors up to 10 mm² and rigid conductors up to 1.5 mm². The stripping cassettes can be changed without tools, in order to offer the best comfort for different cross-section ranges.
This text is machine translated.
This text is machine translated.
