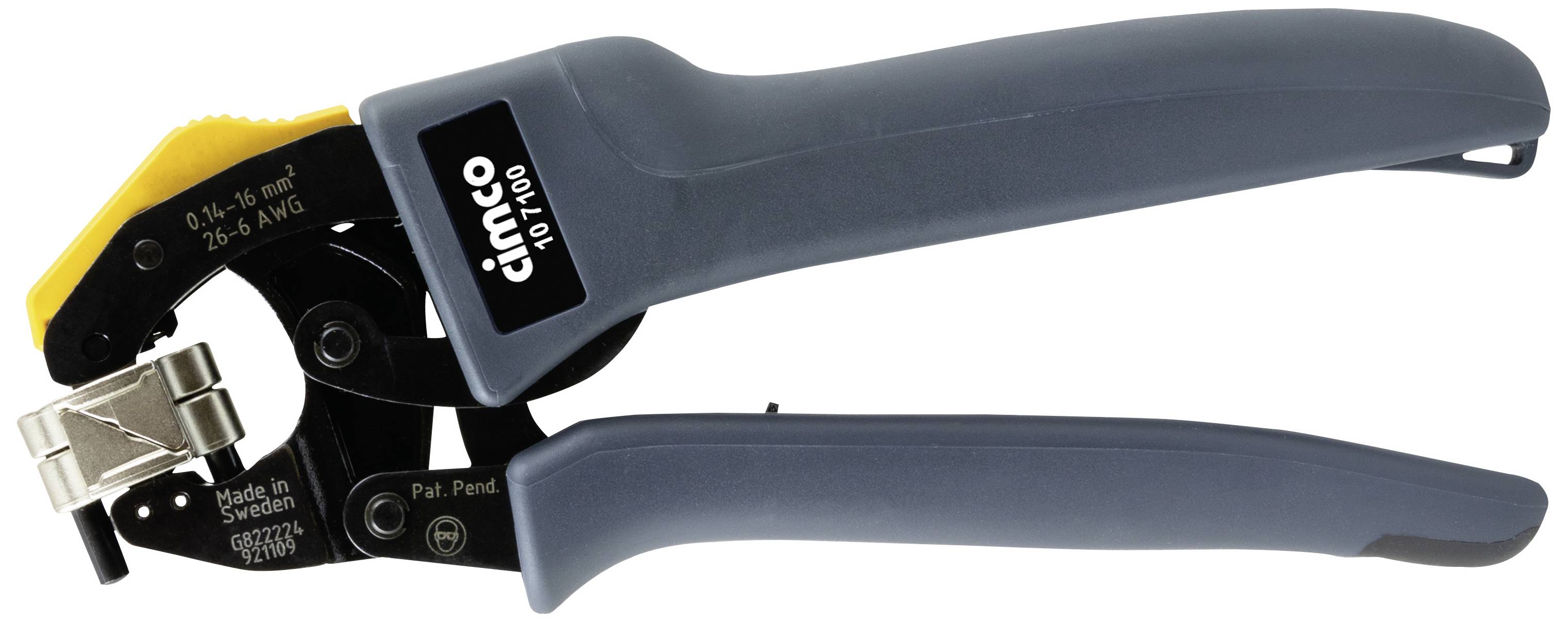

Cimco Power-Crimp twist 107100 Crimper 1-piece Ferrules 0.14 up to 16 mm²
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Twist pliers POWER-CRIMP
- Countersunk, wire end sleeves 0.14-16mm²
Technical specifications
- Product type
Crimper
- Manufacturer part #
107100
- Range of uses
Ferrules
- Crimp area
0.14 up to 16 mm²
- Crimp area (min.)
0.14 mm²
- Crimp area (max.)
16 mm²
- Length
180 mm
- Width
178.0000 mm
- Height
65.0000 mm
- Weight
0.3250
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2986992 Cimco Power-Crimp twist 107100 Crimper 1-piece Ferrules 0.14 up to 16 mm²
User & Safety Instructions
User & Safety Instructions 2986992 Cimco Power-Crimp twist 107100 Crimper 1-piece Ferrules 0.14 up to 16 mm²
Description
The POWER-CRIMP Twist is a crimping tool for wire-end sleeves to DIN 46228. It works self-adjusting and is suitable for the cross-section range 0.14 - 16 mm² with single wire-end sleeves and 2 x 0.5 - 2 x 6 mm² with twin wire-end sleeves. The POWER-CRIMP Twist offers a rotating head, which can be adjusted to any working situation Ideal, as the sink can be adjusted to a lateral or front feed of the wire-end sleeve. The compact pliers body has a small opening width, in order to ensure an ergonomic handling with each press. The anti-skid hand grips also guarantee a safe working under various conditions.
