Cimco Solar 100774 Automatic stripper 1.5 up to 6 mm² 9 up to 15 1.3 up to 3 mm
EAN:
Part number:
Item no:
Technical specifications
- Product type
Automatic stripper
- Suitable for
Solar cables
- Operating range (diameter)
1.3 up to 3 mm
- Working area diameter (min.)
1.3 mm
- Operating range (diameter) (max.)
3 mm
- Working area (cross section)
1.5 up to 6 mm²
- Working area cross section (min.)
1.5 mm²
- Operating range (cross section) (max.)
6 mm²
- Operating range (AWG diameter)
9 up to 15
- Operating range (AWG cross section) (min.)
15
- Operating range (AWG cross section) (max.)
9 awg
- Length
240 mm
- Width
160 mm
- Weight
240 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 809443 Cimco Solar 100774 Automatic stripper 1.5 up to 6 mm² 9 up to 15 1.3 up to 3 mm
Description

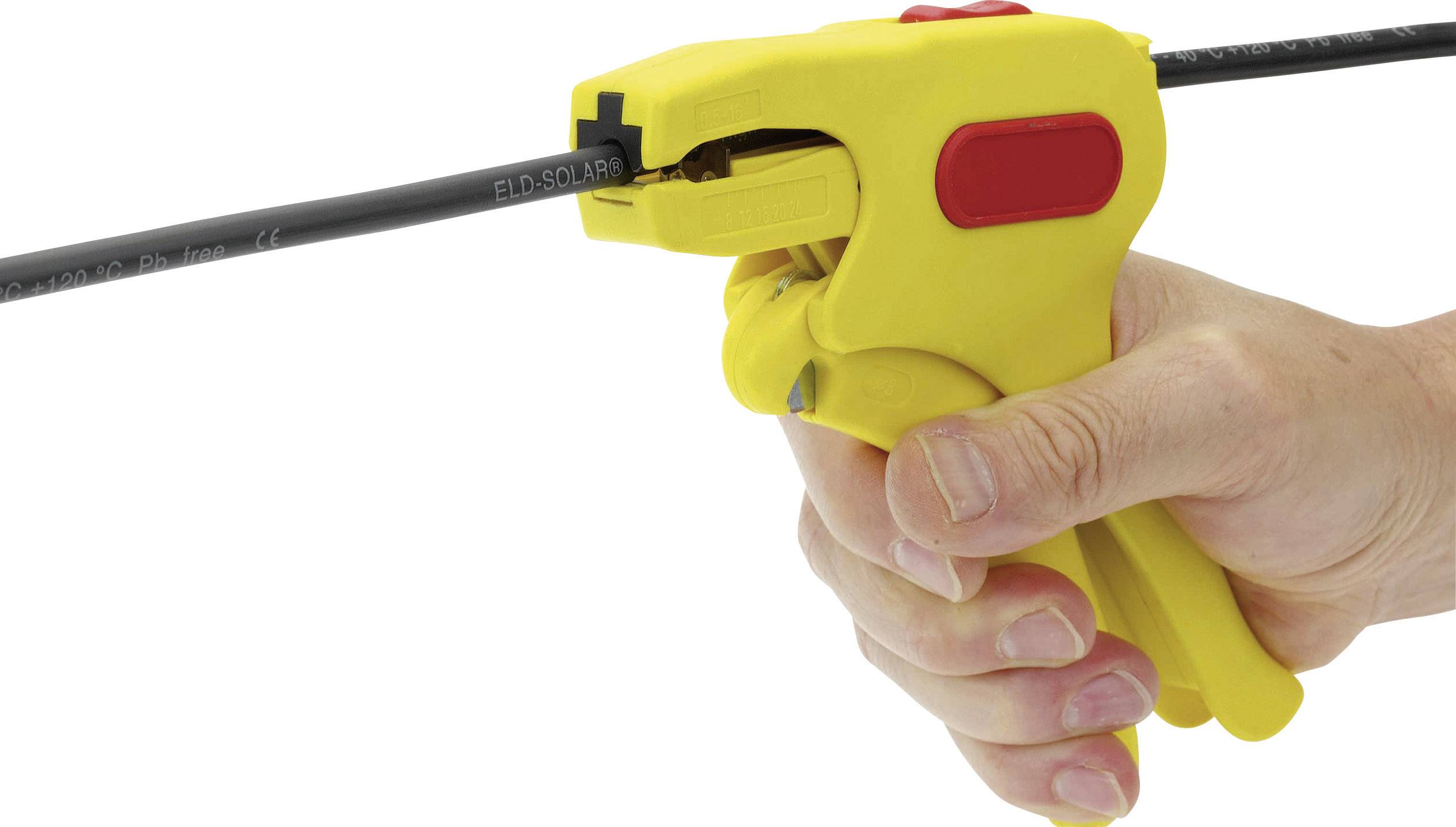

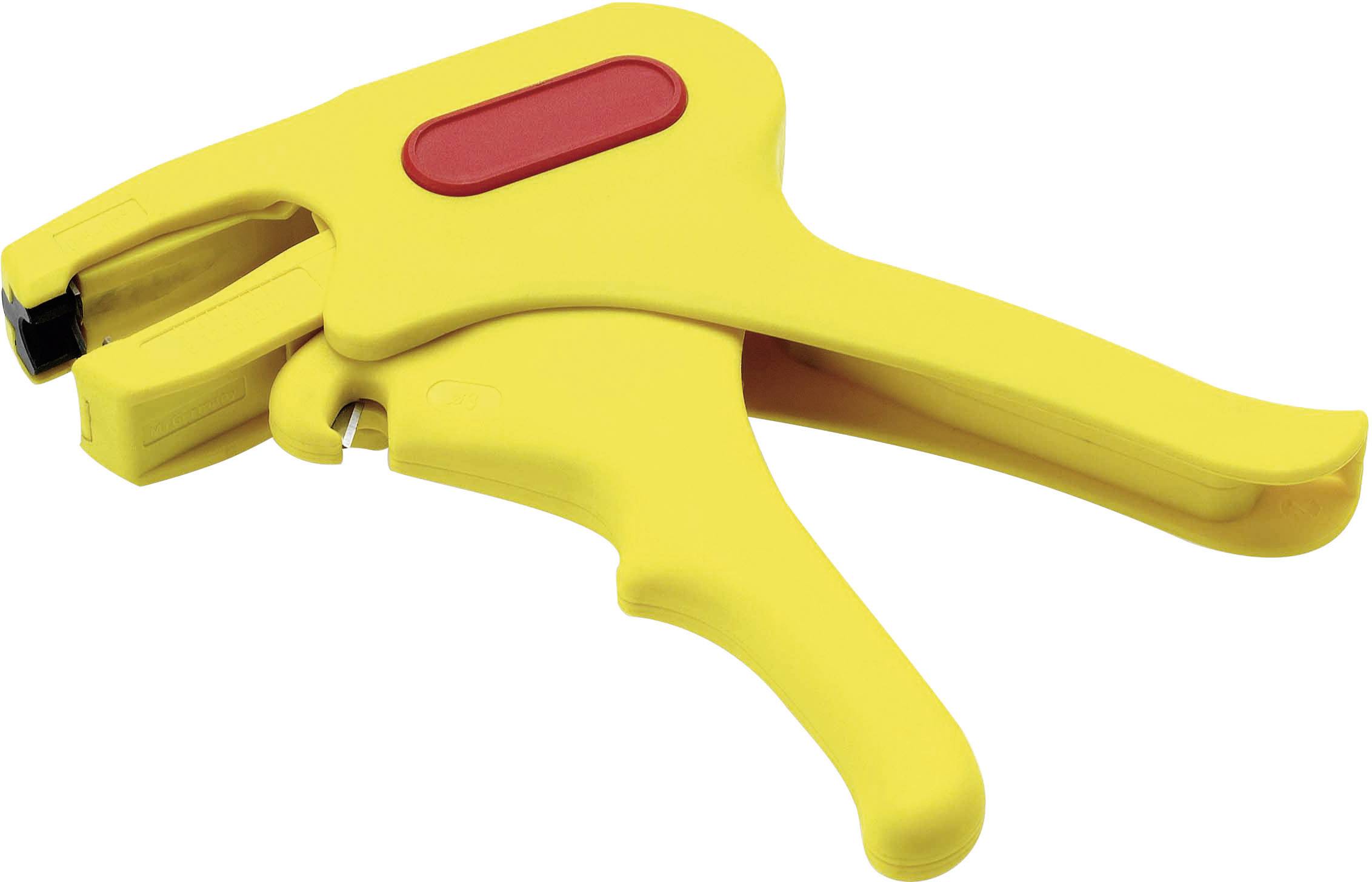

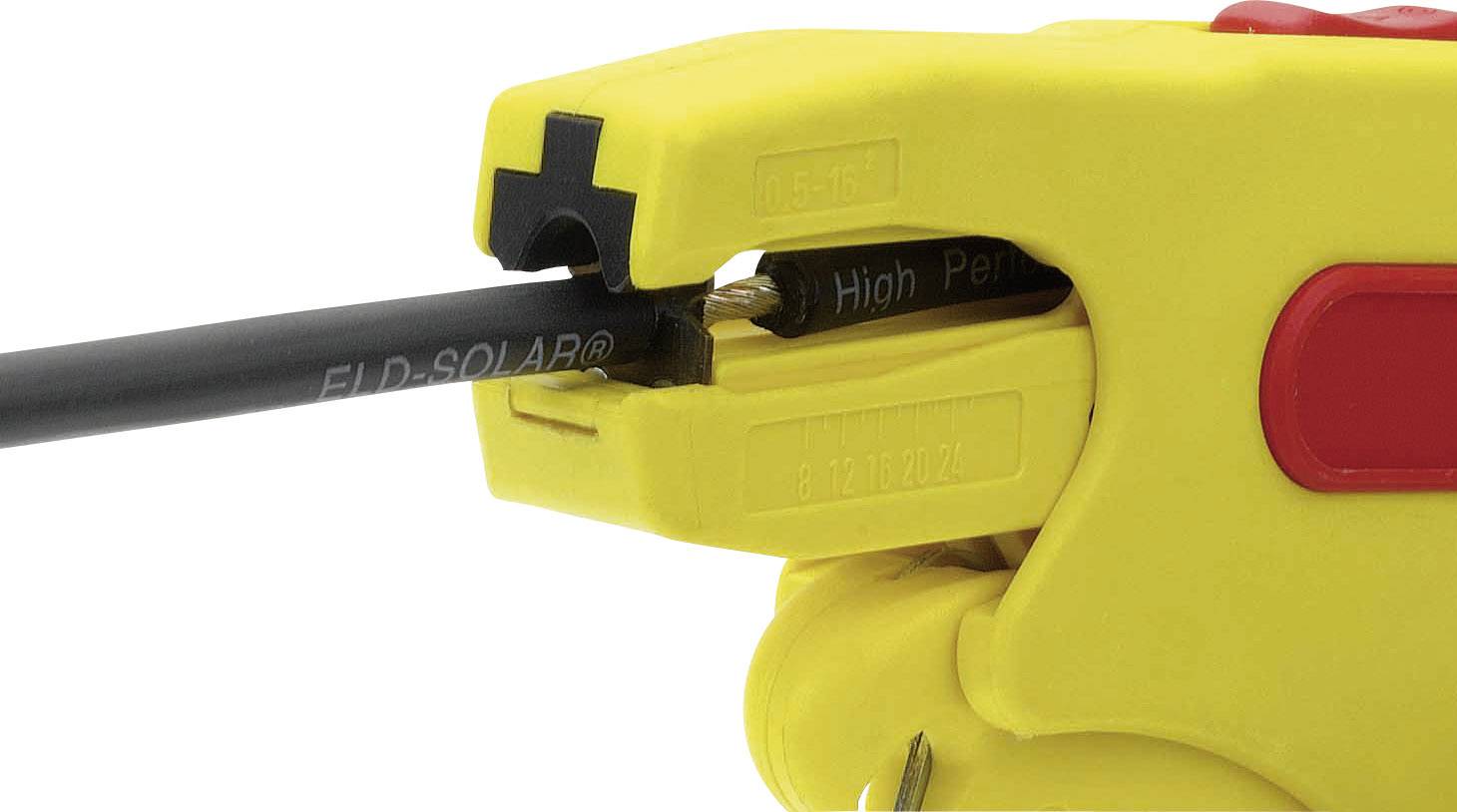

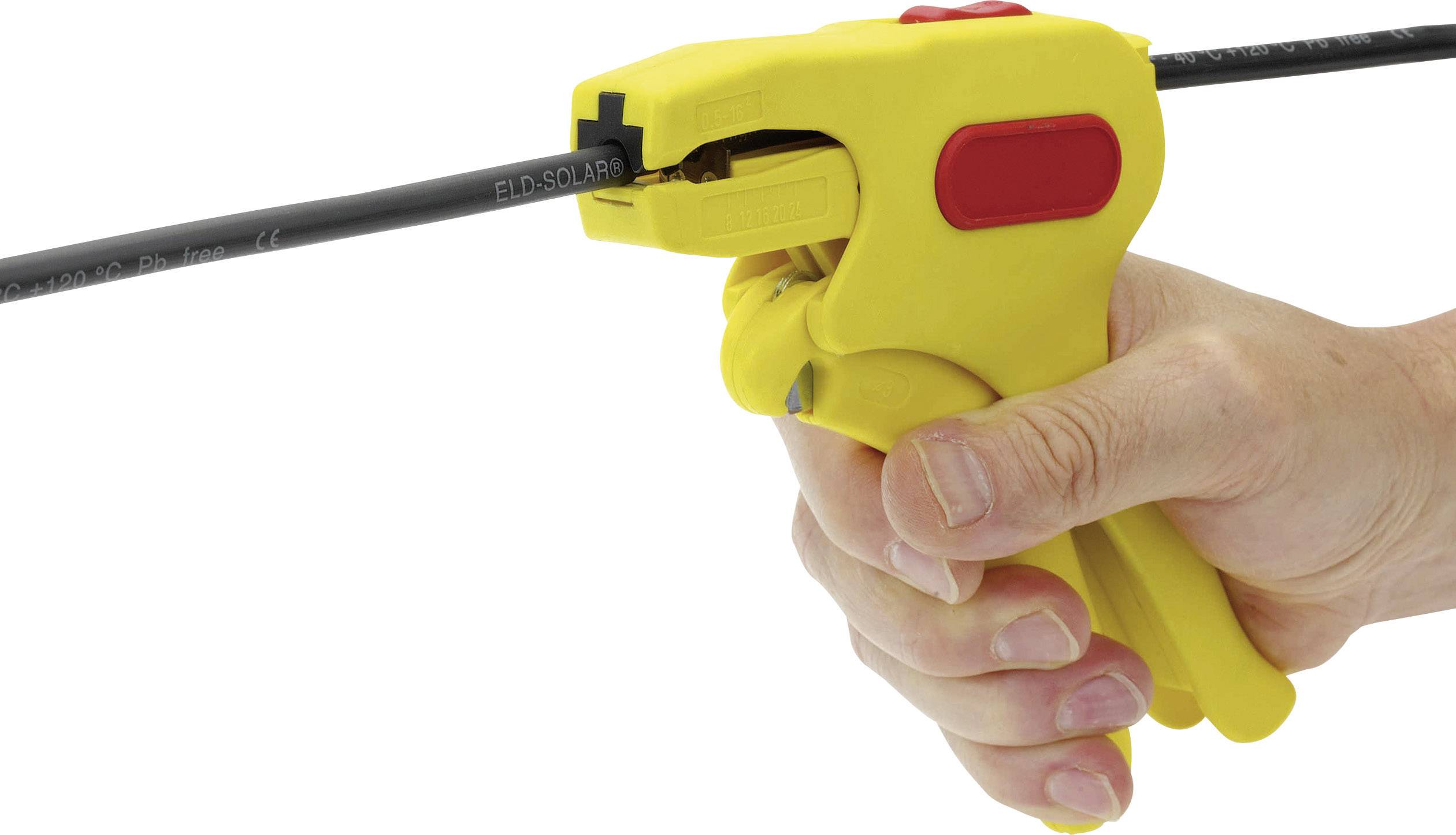

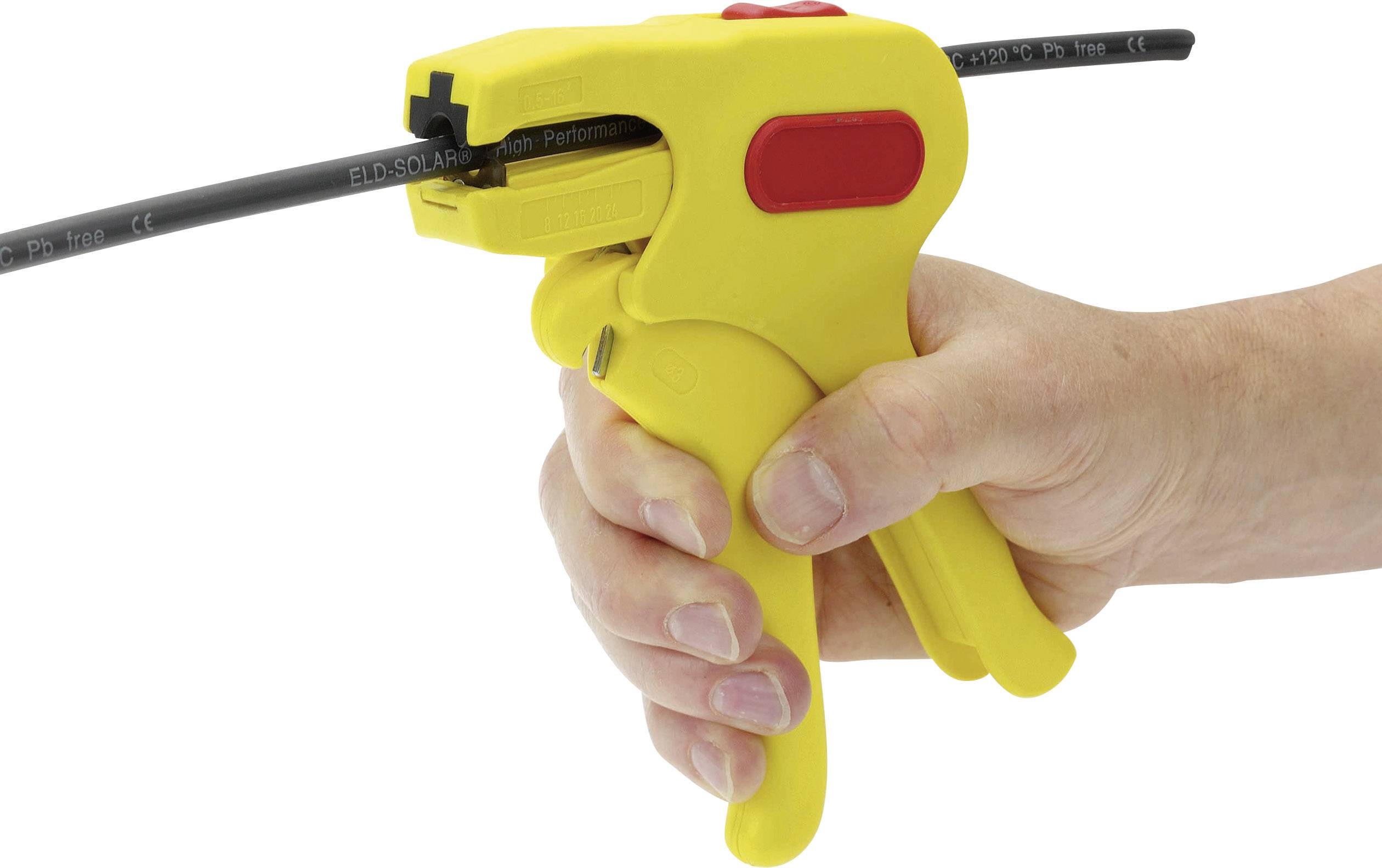

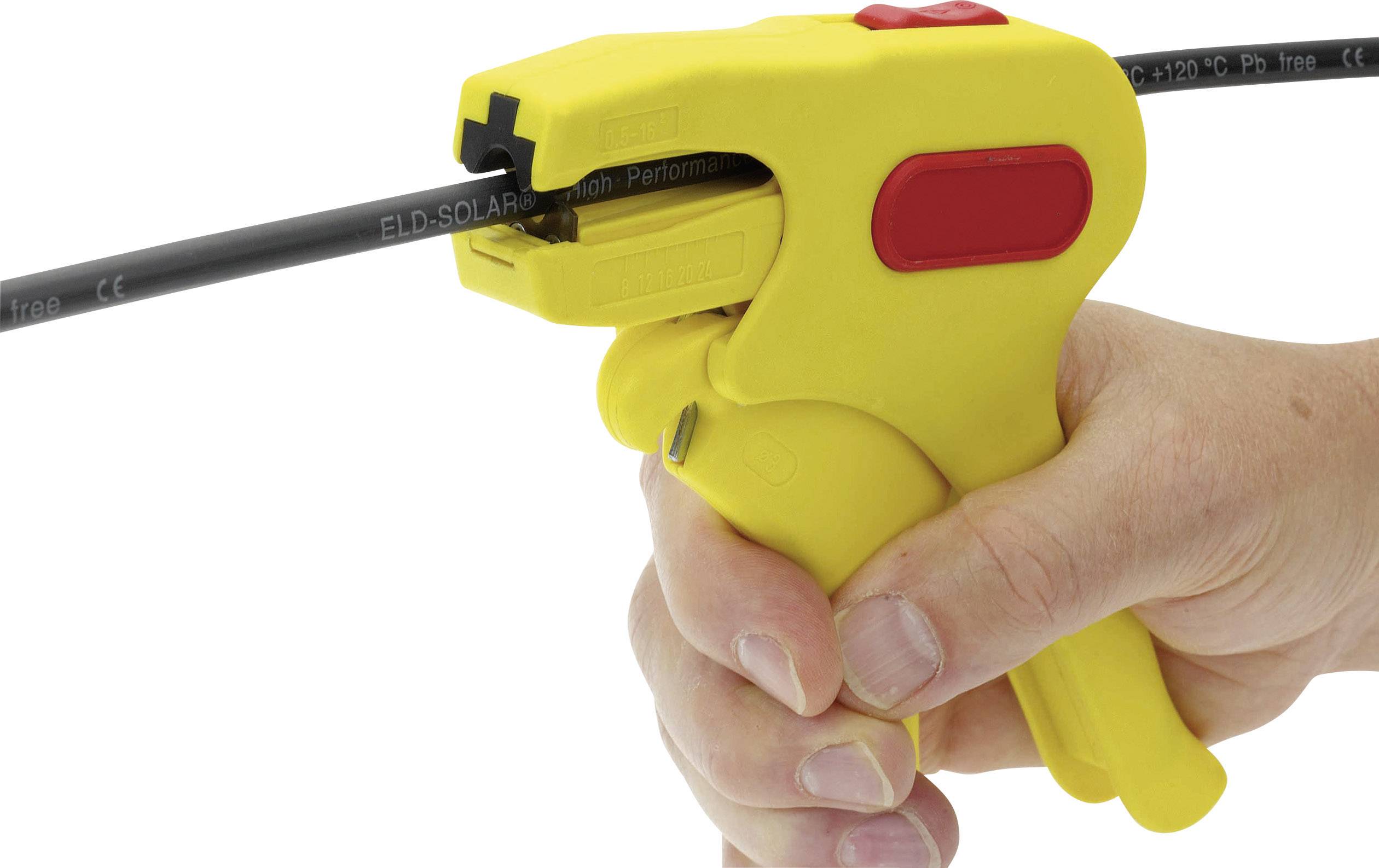

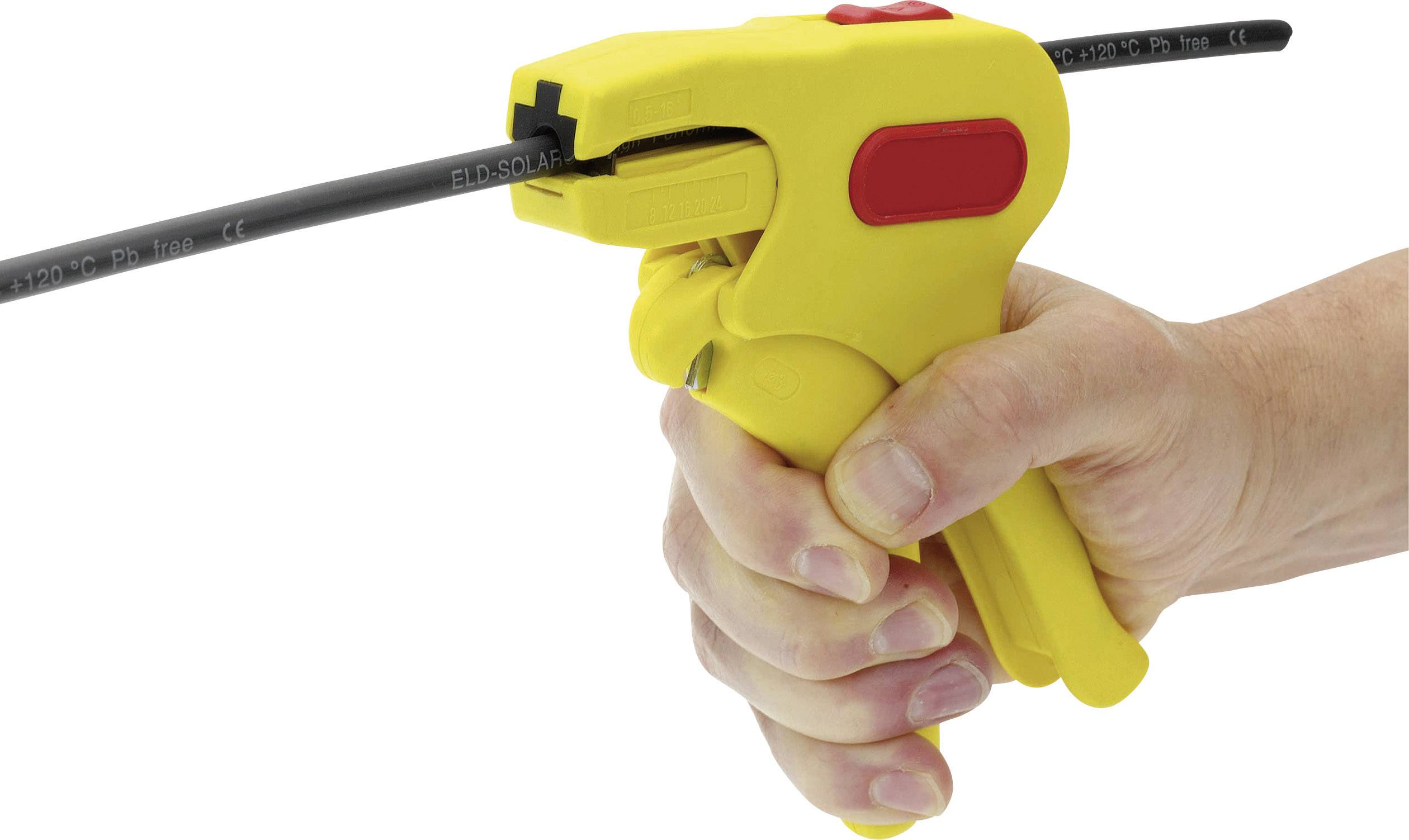

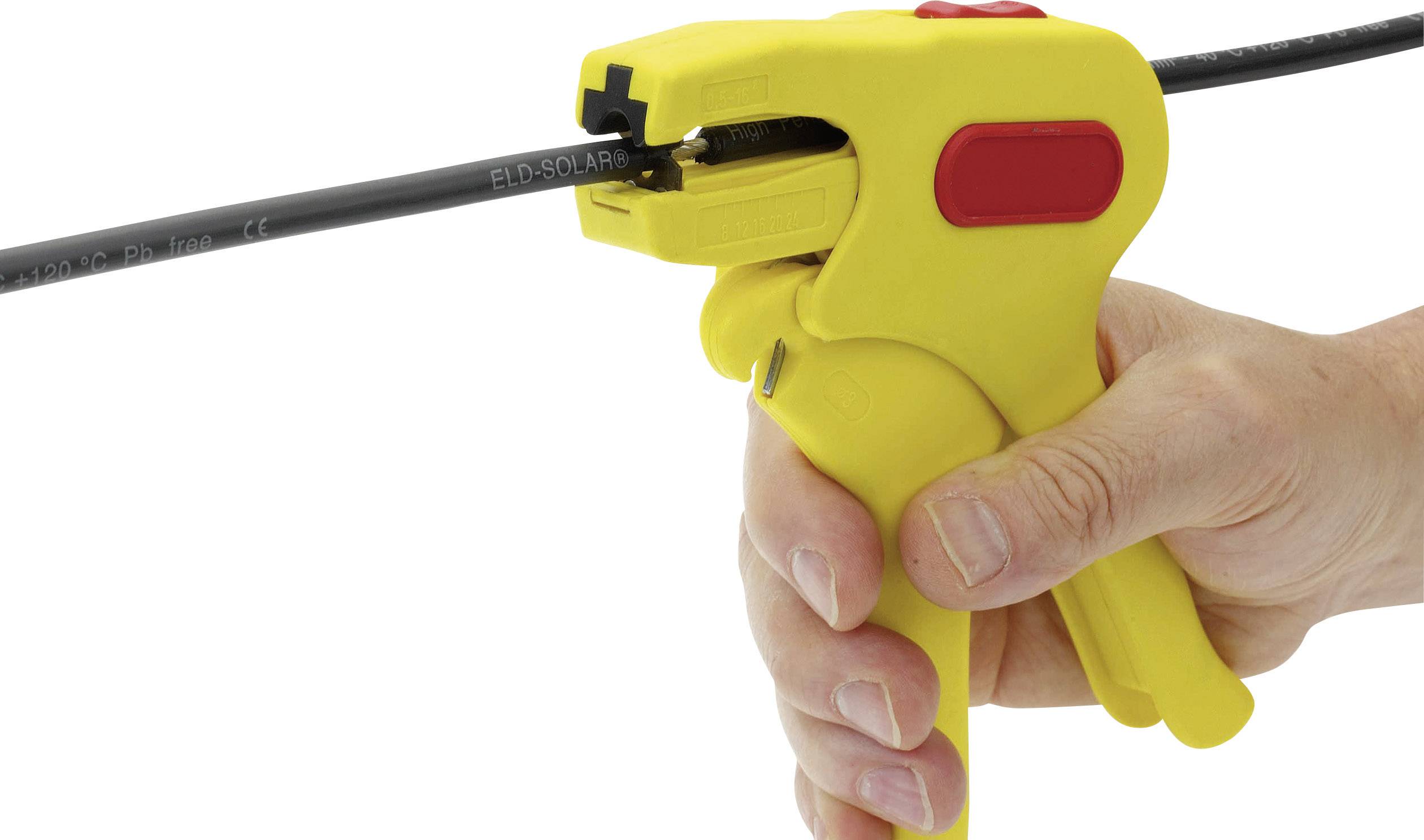

Automatic wire stripper for all common solar cable of 1.5 mm² up to 6 mm², in the area of photovoltaics. Through the 5 level adjustable fine alignment, the removal of multilevel insulation of solar cables is possible without difficulties. Optical length from 8 to 24 mm. With integrated, well accessible side cutter for cable up to 3 mm ø. Ergonomic pistol grip for fatigue-free working.
Hints
This text is machine translated.
