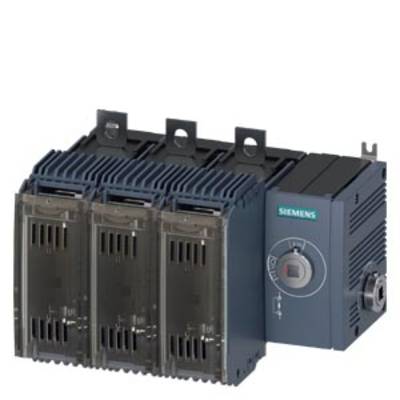

Circuit breakers 3-pin 125 A 690 V AC Siemens 3KF23124RF11
EAN:
Part number:
Item no:
Product type
Circuit breakers
Nominal voltage
690 V AC
Number of pins
3
Nominal current - rounded value
125 A
Operating voltage
690 V AC
Datasheet (PDF)
Number
Total (€ 231.09 / piece)
€ 231.09
plus VAT.
Technical specifications
- Protection class: IP20
- Isolation voltage: 1000 V
- Ambient temperature: -25 °C to +70 °C
- Surge voltage resistance: 12 kV
- Mechanical life: 12000
- Electrical life: 8000
- Mounting type: floor mounting
- Design of the electrical connection: flat connector
- Size of the switch disconnector: 2
- Power loss: 45.6 W
- Product type
Circuit breakers
- Operating voltage
690 V AC
- Nominal voltage
690 V AC
- Number of pins
3

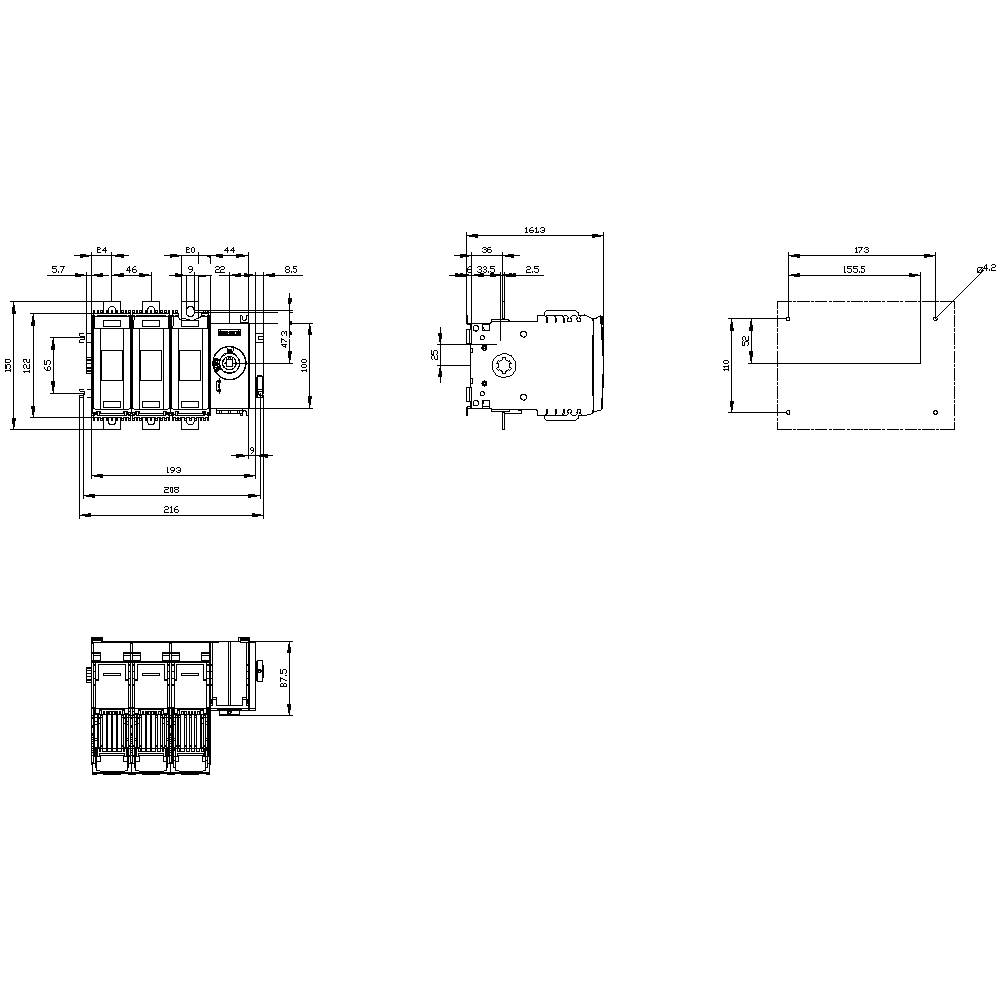

- Dim
(W x H x D) 203.7 x 150 x 161.5 mm
- Nominal current
125 A
- Nominal current - rounded value
125 A
- Type
Switch disconnectors with fuses 3 KF
- Width
203.7 mm
- Height
150 mm
- Depth
161.5 mm
Other
125 A
3
100 kA
IP00
NH000, NH00
FALSE
Flat plug-in connection
TRUE
Other
TRUE
TRUE
55 kW
5 kA
TRUE
FALSE
FALSE
690 V
FALSE
FALSE
Right
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1744358 Circuit breakers 3-pin 125 A 690 V AC Siemens 3KF23124RF11
User & Safety Instructions
User & Safety Instructions 1744358 Circuit breakers 3-pin 125 A 690 V AC Siemens 3KF23124RF11
Description
Accessory for 3KF size 1 Mounting bracket for surface mounting for mounting of auxiliary switch module contains 1 unit Comprehensive accessories for increased flexibility. From bridging bars through auxiliary switches to various drives, fourth poles or contact covers: With a wide range of accessories, the switch disconnectors and transfer switching equipment can be used for a wide variety of requirements and retrofitted at any time. www.siemens.com/switching-devices. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
