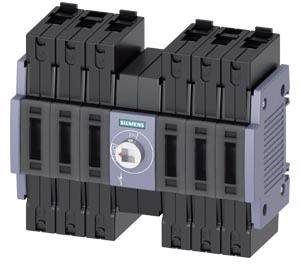

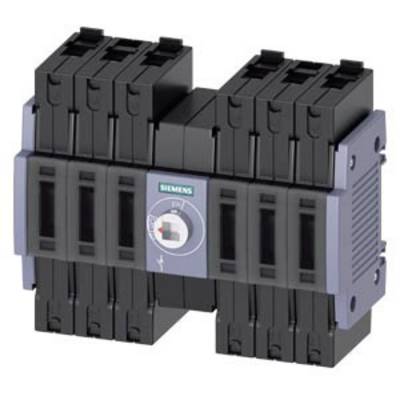

Circuit breakers 6-pin 16 A 4 change-overs 1200 V Siemens 3KD16602ME200
EAN:
Part number:
Item no:
Product type
Circuit breakers
Nominal voltage
1200 V
Number of pins
6
Nominal current - rounded value
16 A
Contact type
4 change-overs
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 335.29 / piece)
€
Technical specifications
- Protection class: IP20
- Insulation voltage 1250 V.
- Ambient temperature: -25 °C to +70 °C
- Surge voltage resistance: 8 kV
- Mechanical life 15000
- Electrical life 1500
- Power loss: 0.6 W
- Electrical connection type: Frame terminal
- Size of the switch disconnector: 1
- Mounting type: Screw and DIN rail mounting 35 mm
- Product type
Circuit breakers
- Contact type
4 change-overs
- Operating voltage
1200 V
- Nominal voltage
1200 V
- Number of pins
6

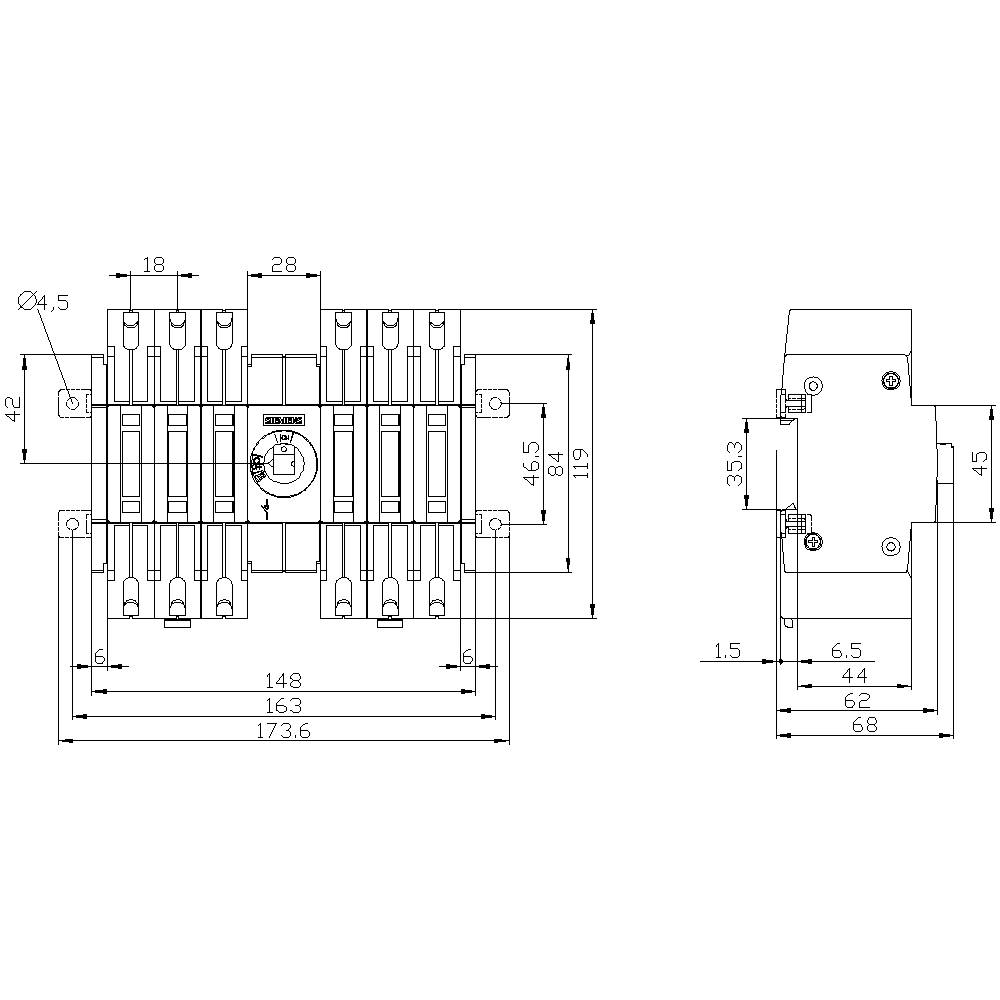

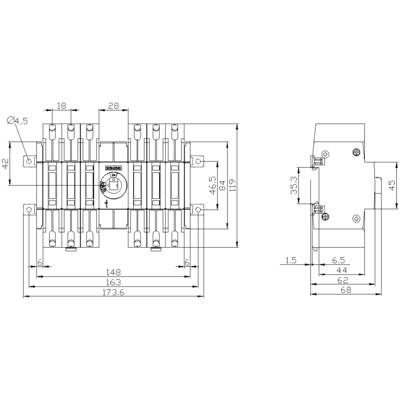

- Dim
(W x H x D) 148 x 119 x 68 mm
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Type
DC switch
- Width
148 mm
- Height
119 mm
- Depth
68 mm
0
0
16 A
6
IP20
4
1
FALSE
FALSE
Frame clamp
TRUE
None
TRUE
TRUE
TRUE
Other
TRUE
FALSE
FALSE
TRUE
TRUE
FALSE
FALSE
Built-in device fixed built-in technique
FALSE
Other
Documents & Downloads
Datasheet
Datasheet 1702186 Circuit breakers 6-pin 16 A 4 change-overs 1200 V Siemens 3KD16602ME200
User & Safety Instructions
User & Safety Instructions 1702186 Circuit breakers 6-pin 16 A 4 change-overs 1200 V Siemens 3KD16602ME200
Description
SITOR fuse link, with female thread on both sides, NH3, In: 1000 A, aR, Un AC: 690 V, Un DC: 440 V, front indicator SITOR 3NE and 3NC semiconductor fuses protect power semiconductors from the effects of short circuits. As an important element of the SENTRON protective component line for electronic installations, the SITOR fuse system from Siemens provides effective protection for personnel, equipment and plants with reliable shutdown in the event of an overload or short circuit. The area of application also includes frequency converters with fuses in the input circuit and in the DC link and also UPS systems and soft-starters for motors. Key features of the Siemens SITOR fuses: 1. Extremely fast-acting switch-off characteristic compared to conventional LV HRC fuses. 2. Power semiconductors are also reliably protected in the event of a short-circuit. 3. The Siemens quality standard ensures very good characteristic curve accuracy. 4. SITOR cylindrical fuses are approved in accordance with IEC and UL and largely also CCC and can therefore be used worldwide. 5. In some cases suitable for installation in LV HRC fuse bases, in LV fuse switch disconnectors and switch disconnectors with fuses. www.siemens.com/fuses. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution boards as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
