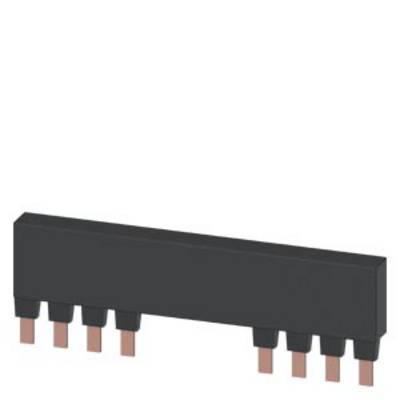

Circuit breaker accessories 4-pin Siemens 3KC91182
EAN:
Part number:
Item no:
Product type
Circuit breaker accessories
Number of pins
4
Compatible with (details)
3KC0 MTSE

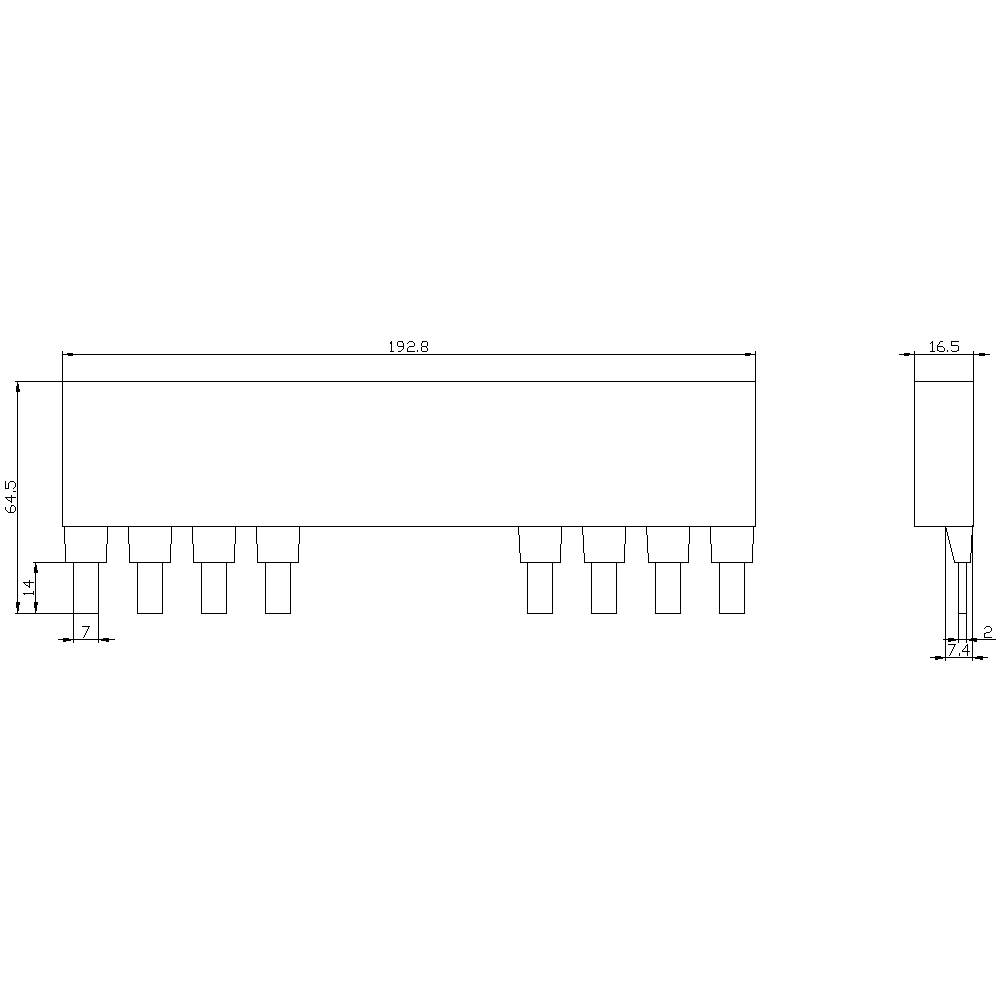

Dim
(W x H x D) 192.8 x 78.5 x 163.5 mm
Type
Frame Clamp
Datasheet (PDF)
Number
Total (€ 96.63 / piece)
€ 96.63
plus VAT.
14-day return policy included
Technical specifications
- Accessories for mains change-over switch
- Net weight: 298 g
- Product type
Circuit breaker accessories
- Compatible with (details)
3KC0 MTSE
- Number of pins
4
- Dim
(W x H x D) 192.8 x 78.5 x 163.5 mm
- Type
Frame Clamp
- Width
192.8 mm
- Height
78.5 mm
- Depth
163.5 mm
Connecting bridge
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1743824 Circuit breaker accessories 4-pin Siemens 3KC91182
User & Safety Instructions
User & Safety Instructions 1743824 Circuit breaker accessories 4-pin Siemens 3KC91182
Description
SENTRON, transfer switching equipment 3KC, manually operated, MTSE, size: 5, 4-pole, Iu: 1250 A, Ue AC: 415 V, Ie at AC-33 B at 415 V: 800 A, Ie at AC-23 A at 690 V: 800 A, screw mounting, front operating mechanism, at the left end, without handle, busbar connection
