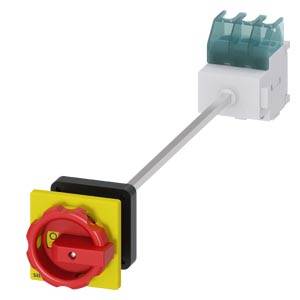

Circuit breakers Red, Yellow 3-pin 16 mm² 32 A 690 V AC Siemens 3LD22480TK53
EAN:
Part number:
Item no:
Product type
Circuit breakers
Nominal voltage
690 V AC
Number of pins
3
Nominal current - rounded value
32 A
Operating voltage
690 V AC
Datasheet (PDF)
Number
Total (€ 55.45 / piece)
€ 55.45
plus VAT.
14-day return policy included
Technical specifications
- IP65 rating
- Isolation voltage: 690 V
- Operating frequency: 50/60 Hz
- Ambient temperature: -25 °C to +55 °C
- Surge voltage resistance: 6 kV
- Mechanical life: 100000
- Electrical life: 6000
- Color of the actuator: red
- Size of the switch disconnector: 2
- Power loss: 5.4 W
- Product type
Circuit breakers
- Operating voltage
690 V AC
- Nominal voltage
690 V AC
- Factory colour
Red
Yellow
- Cross section
16 mm²
- Number of pins
3
- Dim
(W x H x D) 67 x 79 x 368 mm
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Type
Emergency stop switch
- Width
67 mm
- Height
79 mm
- Depth
368 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1743152 Circuit breakers Red, Yellow 3-pin 16 mm² 32 A 690 V AC Siemens 3LD22480TK53
User & Safety Instructions
User & Safety Instructions 1743152 Circuit breakers Red, Yellow 3-pin 16 mm² 32 A 690 V AC Siemens 3LD22480TK53
Description
AS-i compact module K60 digital 4 DI/4 DQ, IP67 4 x input, max. 200 mA 4 x output, 1 A, 24 V DC 8 x M12 standard sockets Special assignment Studer Mounting plate 3RK1901-0CA00 must be ordered separately
