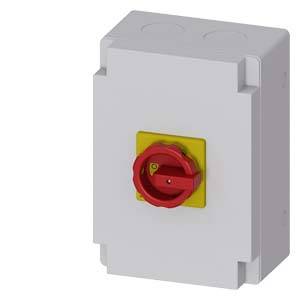

Circuit breakers Red, Yellow 3-pin 50 mm² 125 A 1 maker, 1 breaker 690 V AC Siemens 3LD28661GP53
EAN:
Part number:
Item no:
Product type
Circuit breakers
Nominal voltage
690 V AC
Number of pins
3
Nominal current - rounded value
125 A

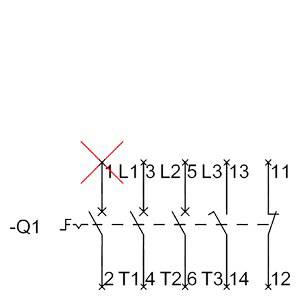

Contact type
1 maker
1 breaker
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 382.35 / piece)
€
Technical specifications
- IP65 rating
- Isolation voltage: 690 V
- Operating frequency: 50/60 Hz
- Ambient temperature: -25 °C to +55 °C
- Surge voltage resistance: 6 kV
- Mechanical life: 100000
- Electrical life: 6000
- Color of the actuator: red
- Size of the switch disconnector: 4
- Power loss: 36 W
- Product type
Circuit breakers
- Contact type
1 maker
1 breaker
- Operating voltage
690 V AC
- Nominal voltage
690 V AC
- Factory colour
Red
Yellow
- Cross section
50 mm²
- Number of pins
3

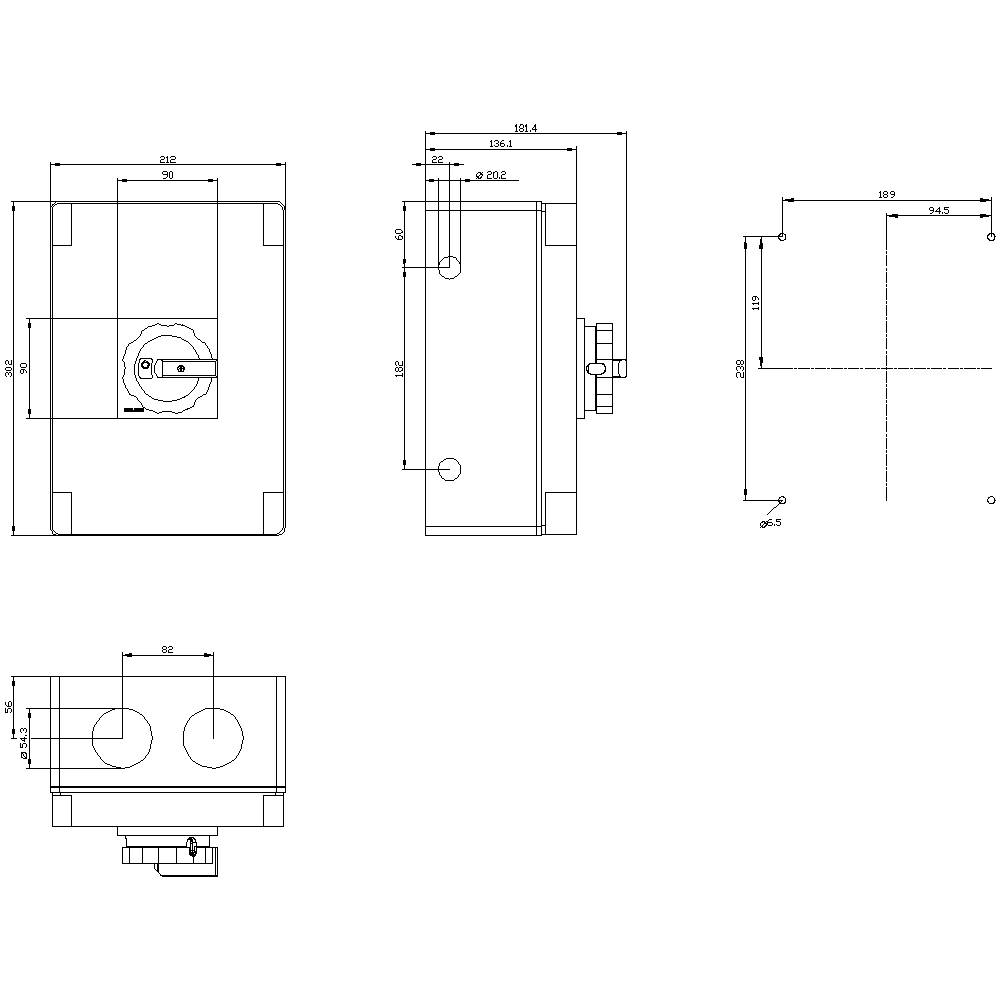

- Dim
(W x H x D) 212 x 302 x 181 mm
- Nominal current
125 A
- Nominal current - rounded value
125 A
- Type
Emergency stop switch
- Width
212 mm
- Height
302 mm
- Depth
181 mm
37 kW
1
1
125 A
3
IP65
0
1
TRUE
FALSE
Frame clamp
TRUE
Short thumb-grip
TRUE
TRUE
TRUE
45 kW
2 kA
Red
FALSE
FALSE
TRUE
FALSE
FALSE
690 V
FALSE
FALSE
Built-in device fixed built-in technique
125 A
FALSE
80
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1744383 Circuit breakers Red, Yellow 3-pin 50 mm² 125 A 1 maker, 1 breaker 690 V AC Siemens 3LD28661GP53
User & Safety Instructions
User & Safety Instructions 1744383 Circuit breakers Red, Yellow 3-pin 50 mm² 125 A 1 maker, 1 breaker 690 V AC Siemens 3LD28661GP53
Description
F-DS1E-X for ET 200S Fail-safe DOL starter Setting range 2.4...16 A Mechanical switching Electronic protection AC-3, up to 7.5 kW / 400 V expandable for brake control module for 2DI control module
