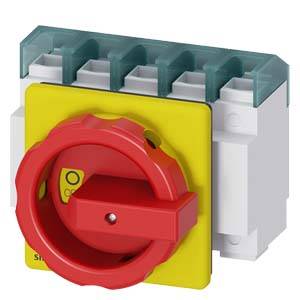

Circuit breakers Red, Yellow 4-pin 50 mm² 100 A 690 V AC Siemens 3LD27042TC53
EAN:
Part number:
Item no:
Product type
Circuit breakers
Nominal voltage
690 V AC
Number of pins
4
Nominal current - rounded value
100 A
Operating voltage
690 V AC
Datasheet (PDF)
Number
Total (€ 168.06 / piece)
€ 168.06
plus VAT.
14-day return policy included
Technical specifications
- IP65 rating
- Isolation voltage: 690 V
- Operating frequency: 50/60 Hz
- Ambient temperature: -25 °C to +55 °C
- Surge voltage resistance: 6 kV
- Mechanical life: 100000
- Electrical life: 6000
- Color of the actuator: red
- Size of the switch disconnector: 4
- Power loss: 30 W
- Product type
Circuit breakers
- Operating voltage
690 V AC
- Nominal voltage
690 V AC
- Factory colour
Red
Yellow
- Cross section
50 mm²
- Number of pins
4
- Dim
(W x H x D) 90 x 107 x 112.5 mm
- Nominal current
100 A
- Nominal current - rounded value
100 A
- Type
Emergency stop switch
- Width
90 mm
- Height
107 mm
- Depth
112.5 mm
30 kW
0
0
100 A
4
IP65
0
1
TRUE
FALSE
Frame clamp
TRUE
Short thumb-grip
TRUE
TRUE
TRUE
37 kW
2 kA
Red
FALSE
TRUE
FALSE
FALSE
FALSE
690 V
FALSE
FALSE
Built-in device fixed built-in technique
100 A
FALSE
70
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1744362 Circuit breakers Red, Yellow 4-pin 50 mm² 100 A 690 V AC Siemens 3LD27042TC53
User & Safety Instructions
User & Safety Instructions 1744362 Circuit breakers Red, Yellow 4-pin 50 mm² 100 A 690 V AC Siemens 3LD27042TC53
Description
Power contactor, AC-3 65 A, 30 kW / 400 V 24 V DC, 2 NO + 2 NC 3-pole, Size S3, Screw terminal Captive auxiliary switch for SUVA applications !!! Phased-out product !!! Successor is SIRIUS 3RT2 Preferred successor type is 3RT2037-1KB44-3MA0
