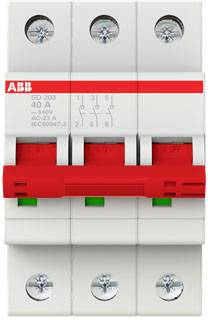

Circuit breakers Grey 3-pin 40 A 3 makers ABB 2CDD283101R0040
EAN:
Part number:
Item no:
Product type
Circuit breakers
Number of pins
3
Nominal current - rounded value
40 A
Contact type
3 makers
Operating voltage
12 V
Datasheet (PDF)
Technical specifications
- Color of the dome: Gray
- Lamp base: -
- Voltage type: AC
- Max. Lamp power: -
- Number of contacts as changer: 0
- Width in division units: 3
- Installation depth 69
- Rated current 40
- Rated breaking capacity: -
- Min Rated voltage 12
- Forced separation (according to DIN VDE 0113): Yes
- Protection class (IP): IP20
- Number of poles: 3
- Light bulb: -
- With signal lamp: No.
- Short circuit resistance (ICW) 25
- Switching function: Off switch
- Number of contacts as NC contact: 0
- Number of contacts as NO contact: 3
- Rated voltage 440
- Product type
Circuit breakers
- Contact type
3 makers
- Operating voltage
12 V
- Factory colour
Grey
- Number of pins
3
- Nominal current
40 A
- Nominal current - rounded value
40 A
- No. of partitions
3
- Depth
69 mm
AC
FALSE
69 mm
40 A
440 V
3
3
IP20
0
3
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2323773 Circuit breakers Grey 3-pin 40 A 3 makers ABB 2CDD283101R0040
User & Safety Instructions
User & Safety Instructions 2323773 Circuit breakers Grey 3-pin 40 A 3 makers ABB 2CDD283101R0040
Description
The SD 200 extends the tried and tested system pro M compact® with switch disconnectors. The series is available in 1 to 4-pole versions with rated currents from 16 to 63 A and have isolating characteristics according to DIN EN 60947-3. The SD 200 opens up new possibilities with a rated voltage of 253/440 V AC, a conditional short-circuit resistance of 25 kA, cylinder lift terminal with 2 clamping points and rear plug protection. The “Real CPI” switch position indicator clearly indicates the switching state of the device. A clear full compatibility with all MCB accessories makes it unique in its field.
