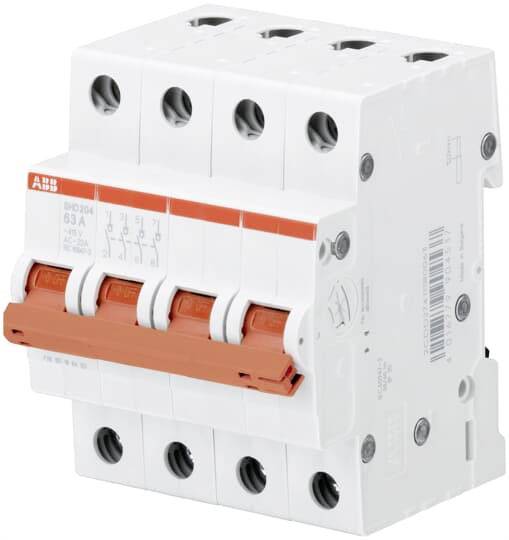

Circuit breakers Metal Grey 4-pin 63 A 4 makers ABB 2CDD274111R0063
EAN:
Part number:
Item no:
Product type
Circuit breakers
Number of pins
4
Nominal current - rounded value
63 A
Contact type
4 makers
Operating voltage
12 V
Datasheet (PDF)
Technical specifications
- Color of the dome: Gray
- Lamp base: -
- Voltage type: AC
- Max. Lamp power: -
- Number of contacts as changer: 0
- Width in division units: 4
- Installation depth 69
- Rated current 63
- Rated breaking capacity: -
- Min Rated voltage 12
- Forced separation (according to DIN VDE 0113): Yes
- Protection class (IP): IP20
- Number of pins: 4
- Light bulb: -
- With signal lamp: No.
- Short circuit resistance (ICW): -
- Switching function: Off switch
- Number of contacts as NC contact: 0
- Number of contacts as NO contact: 4
- Rated voltage 415
- Product type
Circuit breakers
- Contact type
4 makers
- Operating voltage
12 V
- Factory colour
Grey
- Number of pins
4
- Nominal current
63 A
- Nominal current - rounded value
63 A
- No. of partitions
4
- Material
Metal
- Depth
69 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2322319 Circuit breakers Metal Grey 4-pin 63 A 4 makers ABB 2CDD274111R0063
User & Safety Instructions
User & Safety Instructions 2322319 Circuit breakers Metal Grey 4-pin 63 A 4 makers ABB 2CDD274111R0063
Description
With the SHD 200, the tried and tested system pro M compact® is extended by a new series of switch disconnectors. The new series is available in a 1- to 4-pole version with rated currents of 16 to 63 A and has isolating characteristics according to DIN EN 60947-3. The operating voltage of 240/415 V AC and a conditional short-circuit resistance of 10 kA ensure a wide range of applications.
