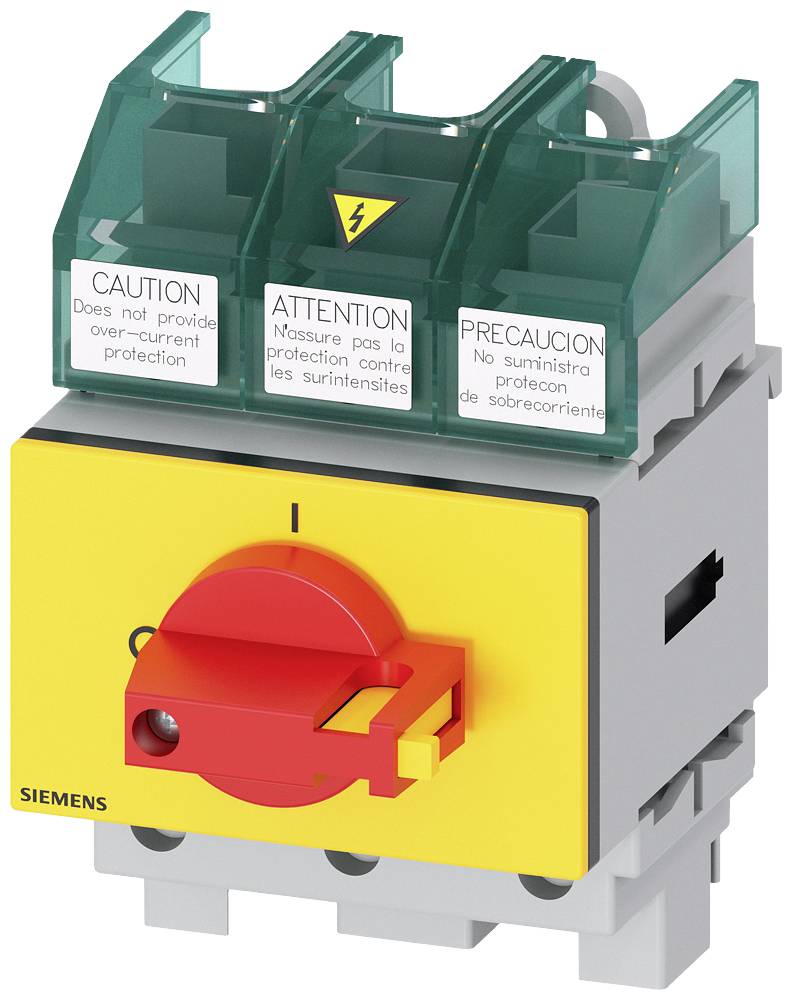

Circuit breakers Siemens 3LD52000TK13
EAN:
Part number:
Item no:
Product type
Circuit breakers
Number of pins
3
Rated operation power at AC-3, 400 V
30 kW
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Datasheet (PDF)
Technical specifications
- Product type
Circuit breakers
- Number of pins
3
30 kW
0
0
63 A
3
IP00
0
1
TRUE
FALSE
Frame clamp
TRUE
Toggle
TRUE
TRUE
TRUE
30 kW
2 kA
Red
TRUE
FALSE
FALSE
690 V
FALSE
FALSE
63 A
FALSE
63
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2870117 Circuit breakers Siemens 3LD52000TK13
User & Safety Instructions
User & Safety Instructions 2870117 Circuit breakers Siemens 3LD52000TK13
Description
SENTRON, 3LD5 UL switch disconnectors, emergency stop switch, 3-pole, UL489 approved, UL60947-4-1 and IEC60947-3, UL: 60A, SCCR 50kA at 480VAC, operating power @ 480VAC 3-phase: 40hp, IEC: 63A, operating power at AC-23A at 400V: 30kW, bottom mounting with direct drive, red/yellow including terminal covers for the infeed side SENTRON 3LD5 main and emergency-OFF switch for safe switching off of loads in many areas of the industrial machinery on the US market.
Modular design, quick and easy fitting of auxiliary switches, N-PE terminal or 4. Pin Optimum mains separation from 16 A to 160 A by lockable the rotary drive. Can be used versatile thanks to international approvals. The UL489 certification makes it ideal for export to NAFTA countries. Owing to the variety of accessories it is particularly suitable as main disconnect switch. It can also be used as a manual motor control because it is also certified to UL60947-4-1.
The 3LD main and emergency-OFF switches are available in a wide range of versions for front mounting, mounting plate, DIN rail or distributor installation, optionally with direct or door coupling rotary drive. With 3LD2, variants for DC applications are also available.
3LD main and emergency-OFF switch - consistent safety for users and systems.
This text is machine translated.
Modular design, quick and easy fitting of auxiliary switches, N-PE terminal or 4. Pin Optimum mains separation from 16 A to 160 A by lockable the rotary drive. Can be used versatile thanks to international approvals. The UL489 certification makes it ideal for export to NAFTA countries. Owing to the variety of accessories it is particularly suitable as main disconnect switch. It can also be used as a manual motor control because it is also certified to UL60947-4-1.
The 3LD main and emergency-OFF switches are available in a wide range of versions for front mounting, mounting plate, DIN rail or distributor installation, optionally with direct or door coupling rotary drive. With 3LD2, variants for DC applications are also available.
3LD main and emergency-OFF switch - consistent safety for users and systems.
This text is machine translated.
