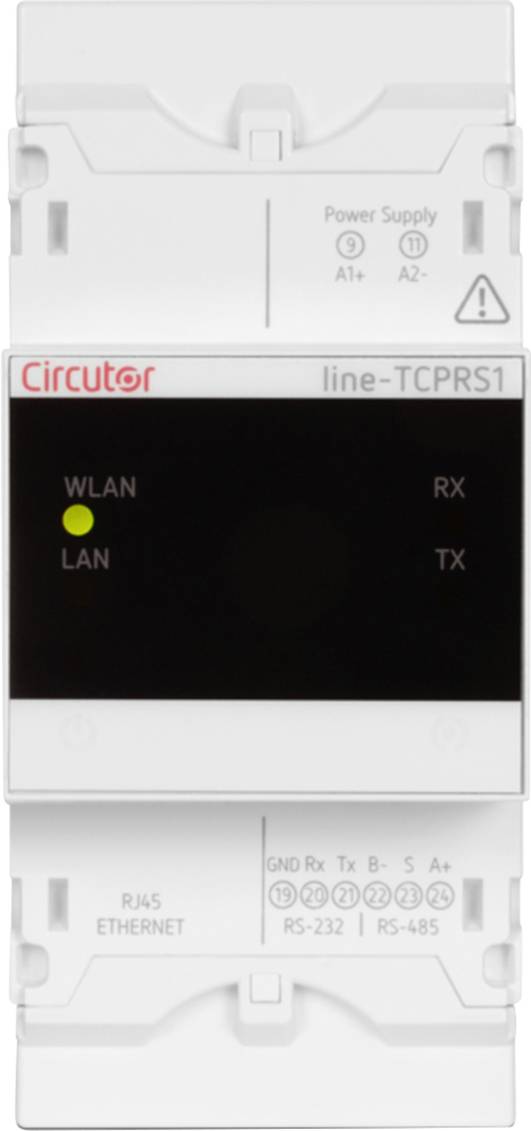

Circutor Line-TCPRS1 Expansion
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 298.32 / piece)
€ 298.32
plus VAT.
Highlights & Details
- 6 display LEDs
- RS-485
- RS232
- Ethernet
- WiFi
- Bluetooth
Technical specifications
- Product type
Expansion
- Type
Line-TCPRS1
- Display technology
LCD
IP30
IP40 (Front)
- Recess width
53 mm
- Recess height
118 mm
- Operating voltage
230 V DC/AC
- Dim
(L x W x H) 74 x 53 x 118 mm
- Weight
170 g
- Max. operating voltage
300 V DC
- Min. operating voltage
100 V DC
- Display lighting
white
- Recess depth
74 mm
- Factory colour
White
- Reading category
CAT III 300 V
- Width
53 mm
- Height
118 mm
- Length
74 mm
- Frame width
53 mm
- Interfaces
1 x Ethernet/LAN
Wi-Fi
RS485
RS232
Bluetooth®
- Interfaces
Ethernet
RS485
Documents & Downloads
Datasheet
Datasheet 2390055 Circutor Line-TCPRS1 Expansion
User & Safety Instructions
User & Safety Instructions 2390055 Circutor Line-TCPRS1 Expansion
Information
Information 2390055 Circutor Line-TCPRS1 Expansion
Description
Line-TCPRS1 is a gateway of the CIRCUTOR Line system for monitoring and controlling plants.
Line-TCPRS1 is a gateway designed to transform a physical RS-485 or RS232 environment into Ethernet and/or Wi-Fi. The device has a web server and an app, MyConfig (Android) uses Bluetooth connectivity®, which allows the user to fully edit the device configuration parameters. The device can be connected to up to 7 line-series devices (Line-CVM-D32 and Line-M expansion modules) via the side connection. It also has RS-485 and RS232 communication ports (external bus) so that it can be connected simultaneously to other devices outside the line area.
This text is machine translated.
Line-TCPRS1 is a gateway designed to transform a physical RS-485 or RS232 environment into Ethernet and/or Wi-Fi. The device has a web server and an app, MyConfig (Android) uses Bluetooth connectivity®, which allows the user to fully edit the device configuration parameters. The device can be connected to up to 7 line-series devices (Line-CVM-D32 and Line-M expansion modules) via the side connection. It also has RS-485 and RS232 communication ports (external bus) so that it can be connected simultaneously to other devices outside the line area.
This text is machine translated.
