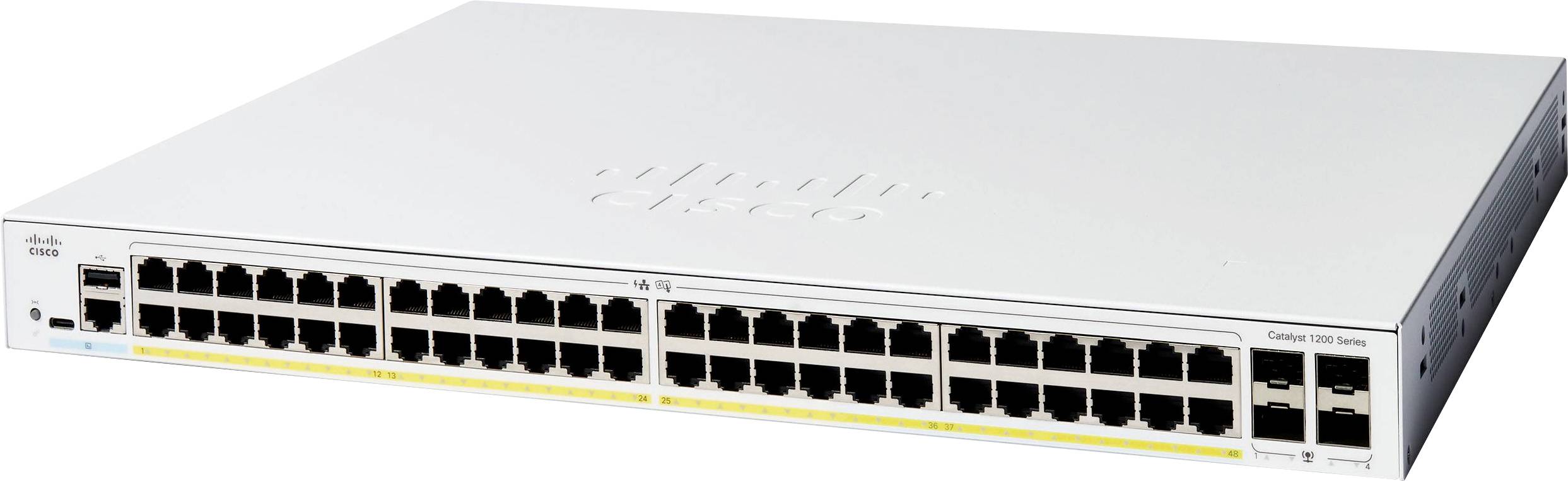

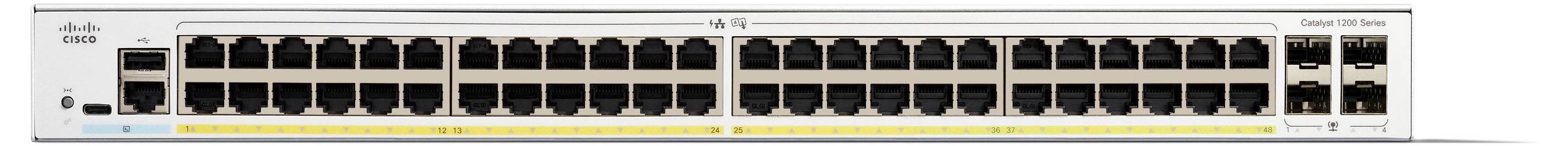

Cisco C1200-48P-4G CISCO Catalyst 1200 48-port GE PoE Network switch 1 GBit/s PoE
EAN:
Part number:
Item no:
Cisco C1200-48P-4G network switch managed L2/L3 Gigabit Ethernet (10/100/1000) white
Highlights & Details
- Managed L2/L3 Web-based management
- Quality of Service (QoS) Support Site Settings Configuration (CLI)
- Number of basic switching RJ-45 Ethernet ports: 48
- Access control list
- AC power supply included
Technical specifications
- Energy source: AC
- Power plug type C
- Product type
Network switch
- LAN transfer rate
1000 MBit/s
- Transfer rate
1 GBit/s
- Working principle
Managed switch
- Ethernet ports
52
- PoE ports
48
- SFP ports
4 x
- No. of 100 Mbps/1Gbps/10Gbps ports
48 x
- 10/100/1000 Mbps ports
48 x
- Fibre-optic ports
4
- Router features
PoE
- Width
350 mm
- Height
43.9 mm
- Depth
444.5 mm
- Type
CISCO Catalyst 1200 48-port GE PoE
- Rack size
483 mm (19")
- Interfaces
RJ45
- Factory colour
White
- Operating voltage
230 V
- Material (details)
Metal
- CPU speed
1400 MHz
1024 MB
- Safety
HTTPS
SSH
SSL/TLS
- UKCA
yes
- Operating temperature (T-T)
0 - 50 °C
- Installed SFP modules quantity
1
- Basic switching RJ-45 Ethernet ports quantity
48
- Storage relative humidity (H-H)
10 - 90 %
- ARP inspection
yes
- Jumbo frames
9000
- Flow control support
yes
- MAC address filtering
yes
- Quality of Service (QoS) support
yes
- Port mirroring
yes
- Jumbo frames support
yes
- Multicast support
yes
- Broadcast storm control
yes
- Static route
yes
- Configuring Location Settings (CLI)
yes
- Web-based management
yes
- Access Control List (ACL)
yes
- Reset button
yes
- Flash memory
512 MB
- SSH/SSL support
yes
- IGMP snooping
yes
- Spanning tree protocol
yes
- Head-of-line (HOL) blocking
yes
- Operating relative humidity (H-H)
10 - 90 %
- VLAN support
yes
- Storage temperature (T-T)
-25 - 70 °C
- Package weight
6.95 kg
- Power supply included
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3737532 Cisco C1200-48P-4G CISCO Catalyst 1200 48-port GE PoE Network switch 1 GBit/s PoE
Description
The Cisco Catalyst 1200 Series offers affordable, intelligent switches specially designed and built to meet the needs of small and medium-sized enterprises (SMBs)
Experience a perfect combination of high performance, comprehensive security and easy management
An overview of the advantages:
Simple management: Configure and monitor your network effortlessly via the intuitive Cisco business dashboard, the modern web-interface or the convenient Cisco business mobile APP
Advanced features: Take advantage of Layer 3 static routing to segment and make your network more efficient, and robust security features (such as IEEE 802.1X, ACLs and DoS protection) that reliably protect your business data
Power over Ethernet (PoE+): Many models support PoE+ (up to 30 watts per port) so you can power IP phones, surveillance cameras, and WLAN access points conveniently and cost-effectively using a single network cable
Energy-efficient: Thanks to the support of the Energy Efficient Ethernet standard (IEEE 802.3az) and the fan-less design in many models, you save electricity, reduce operating costs and benefit from a quieter operation.
Cisco Catalyst 1200 48-port GE PoE (C1200-48P-4G): Maximum scalability for growing networks. You can connect a multitude of devices centrally and reliably with an impressive 48 Gigabit PoE+ ports (375W power budget) and 4 SFP ports.
This text is machine translated.
Experience a perfect combination of high performance, comprehensive security and easy management
An overview of the advantages:
Simple management: Configure and monitor your network effortlessly via the intuitive Cisco business dashboard, the modern web-interface or the convenient Cisco business mobile APP
Advanced features: Take advantage of Layer 3 static routing to segment and make your network more efficient, and robust security features (such as IEEE 802.1X, ACLs and DoS protection) that reliably protect your business data
Power over Ethernet (PoE+): Many models support PoE+ (up to 30 watts per port) so you can power IP phones, surveillance cameras, and WLAN access points conveniently and cost-effectively using a single network cable
Energy-efficient: Thanks to the support of the Energy Efficient Ethernet standard (IEEE 802.3az) and the fan-less design in many models, you save electricity, reduce operating costs and benefit from a quieter operation.
Cisco Catalyst 1200 48-port GE PoE (C1200-48P-4G): Maximum scalability for growing networks. You can connect a multitude of devices centrally and reliably with an impressive 48 Gigabit PoE+ ports (375W power budget) and 4 SFP ports.
This text is machine translated.
