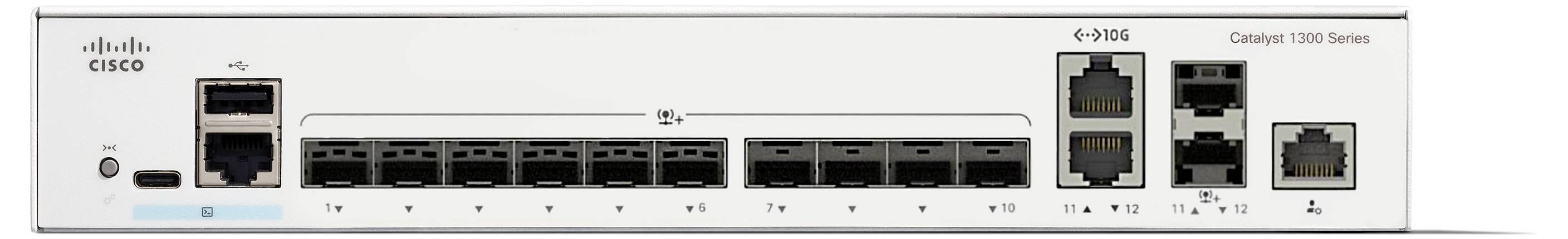

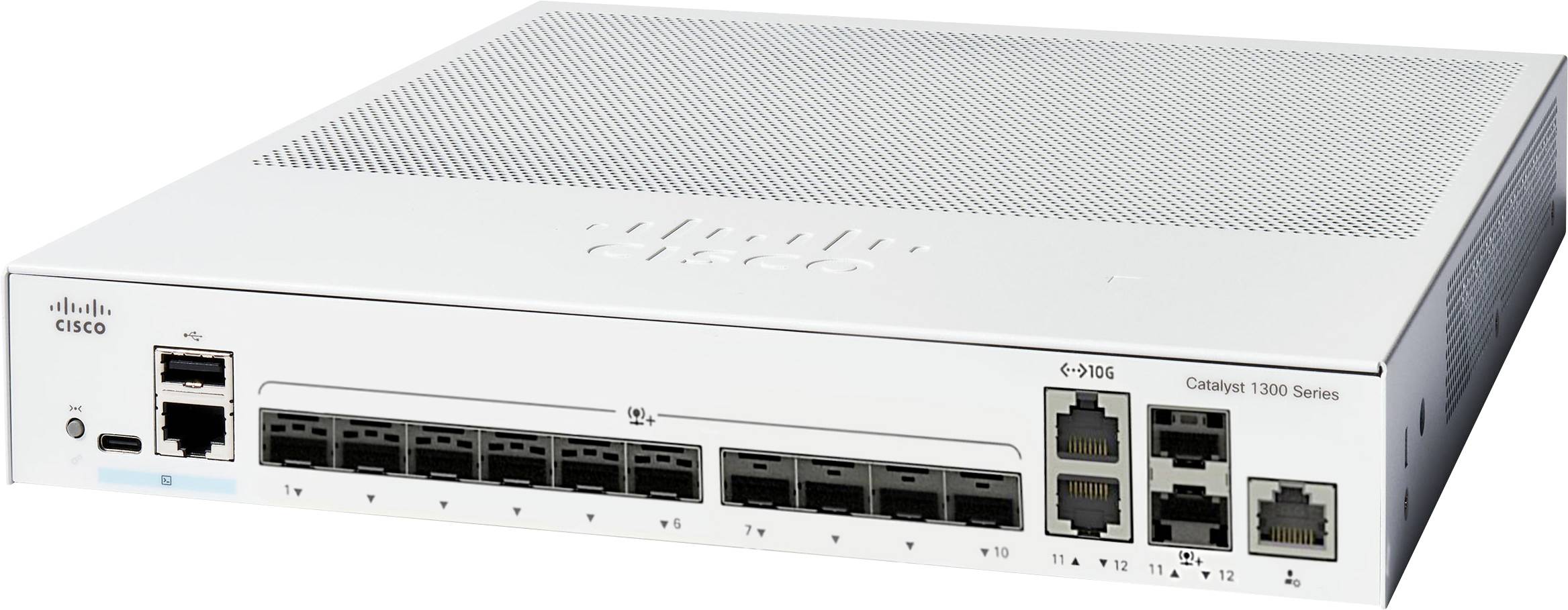

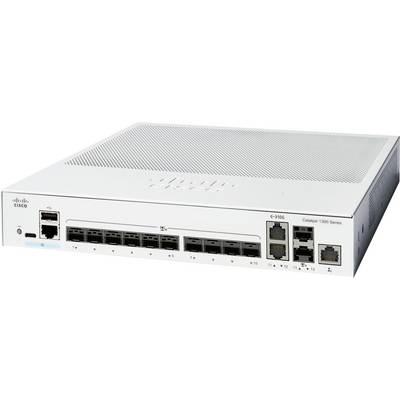

Cisco Catalyst C1300-12XS Network Switch Managed L2/L3 Grey

Highlights & Details

Managed L2/L3 Web-based management
Quality of Service (QoS) Support Site Settings Configuration (CLI)
MAC address table: 16000 entries Routing/switching capacity: 240 Gb/s.
1024 Access control list
Rack installation
AC
This text is machine translated.

Technical specifications

Energy source: AC
Power plug type C

Product type: Network switch

LAN transfer rate: 10000 MBit/s

Transfer rate: 1 / 10 GBit/s

Working principle: Managed switch

Ethernet ports: 12

SFP+ ports: 12 x

SFP ports: 12 x

No. of 100 Mbps/1Gbps/10Gbps ports: 12 x

Fibre-optic ports: 12

Power supply (LOV): mains-powered

MAC addresses: 16000

Weight: 2.67 kg

Width: 300 mm

Height: 44 mm

Depth: 268 mm

Type: CISCO Catalyst C1300-12XS 12-Port Switch

Interfaces: SFP

Factory colour: Grey

Safety: HTTPS
SNMP
SNMPv2
SNMPv3
SSH
SSH-2

UKCA: yes

Operating temperature (T-T): -5 - 50 °C

Packet buffer memory: 3 MB

Storage relative humidity (H-H): 10 - 90 %

Switching capacity: 240 Gbit/s

Access Control List (ACL) rules: 1024

Jumbo frames: 9000

SFP+ module slots quantity: 10

Quality of Service (QoS) support: yes

Port mirroring: yes

Link aggregation: yes

Jumbo frames support: yes

Multicast support: yes

Broadcast storm control: yes

GARP VLAN Registration Protocol (GVRP): yes

Static route: yes

Policy-based routing: yes

IGMP proxy: yes

Configuring Location Settings (CLI): yes

Number of queues: 8

Web-based management: yes

Access Control List (ACL): yes

Rate limiting: yes

Reset button: yes

10G Ethernet (copper) ports quantity: 2

Rack mounting: yes

MAC address table: 16000 Eintragungen

SSH/SSL support: yes

IGMP snooping: yes

Spanning tree protocol: yes

Head-of-line (HOL) blocking: yes

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

Storage temperature (T-T): -25 - 70 °C

Package weight: 3.55 kg

Built-in processor: yes
