The image shows a Cisco Catalyst 9300 Series network switch with multiple ethernet ports on the front panel.

The image shows a Cisco Catalyst 9300 Series network switch with multiple ethernet ports on the front panel.

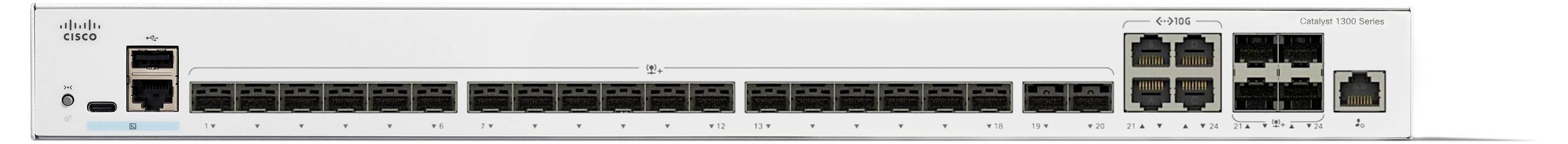

'Cisco network switch with multiple Ethernet ports and fiber optic connections, along with status LED indicators, used for network routing.'

1/2

Cisco

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Pre-contractual information under the EU Data Act

Cisco Catalyst C1300-24XS Network Switch Managed L2/L3 Grey

Highlights & Details

Managed L2/L3 Web-based management
Quality of Service (QoS) Support Site Settings Configuration (CLI)
Console-Port RJ-45/USB Type-C
Cat5e
MAC address table: 16000 entries Routing/switching capacity: 480 Gb/s.
1024 Access control list
Rack installation
AC
This text is machine translated.

Technical specifications

QinQ implementation: Selective QinQ
DDR4 SDRAM
Energy source: AC
Power plug type C

Product type: Network switch

LAN transfer rate: 10000 MBit/s

Transfer rate: 1 / 10 GBit/s

Working principle: Managed switch

Ethernet ports: 24

SFP+ ports: 24 x

SFP ports: 24 x

No. of 100 Mbps/1Gbps/10Gbps ports: 24 x

Fibre-optic ports: 24

Power supply (LOV): mains-powered

MAC addresses: 16000

Weight: 4.15 kg

Width: 445 mm

Height: 44 mm

Depth: 350 mm

Type: CISCO Catalyst C1300-24XS 24-Port Switch

Interfaces: RJ45

Factory colour: Grey

CPU speed: 1.4 MHz

: 1000 MB

Safety: HTTPS
SNMP
SNMPv2
SNMPv3
SSH
SSH-2

UKCA: yes

Operating temperature (T-T): -5 - 50 °C

Combo SFP ports quantity: 4

Packet buffer memory: 8 MB

Number of static routes: 990

Storage relative humidity (H-H): 10 - 90 %

Switching capacity: 480 Gbit/s

Access Control List (ACL) rules: 1024

Jumbo frames: 9000

SFP+ module slots quantity: 20

Quality of Service (QoS) support: yes

Port mirroring: yes

Link aggregation: yes

Jumbo frames support: yes

Multicast support: yes

Broadcast storm control: yes

GARP VLAN Registration Protocol (GVRP): yes

Static route: yes

Policy-based routing: yes

IGMP proxy: yes

Configuring Location Settings (CLI): yes

Number of queues: 8

Web-based management: yes

Access Control List (ACL): yes

Rate limiting: yes

Reset button: yes

Rack mounting: yes

Flash memory: 512 MB

MAC address table: 16000 Eintragungen

SSH/SSL support: yes

IGMP snooping: yes

Spanning tree protocol: yes

Head-of-line (HOL) blocking: yes

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

DoS attack prevention: yes

Storage temperature (T-T): -25 - 70 °C

Package weight: 5.52 kg

Plug and Play: yes

Built-in processor: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3737550 Cisco C1300-24XS CISCO Catalyst C1300-24XS 24-Port Switch Network switch 1 / 10 GBit/s
