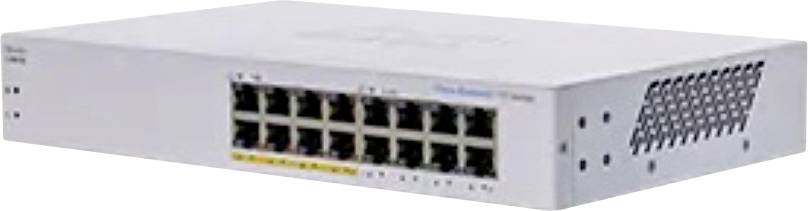

Cisco CBS110-16PP-EU CISCO CBS110 Unmanaged 16-port GE 19" switch box 16 ports 32 Gbit/s PoE
EAN:
Part number:
Item no:
Cisco CBS110 unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U gray
Highlights & Details
- Unmanaged L2
- Quality of Service (QoS) support
- Number of basic switching RJ-45 Ethernet ports: 16
- CAT5E 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 8192 entries Routing/switching capacity: 32 Gb/s.
- 1U Rack-mounting
- Power supply includes Power over Ethernet (PoE)
- This text is machine translated.
Technical specifications
- Product type
19" switch box
- LAN transfer rate
10 MBit/s
100 MBit/s
1000 MBit/s
- Transfer rate
32 Gbit/s
- Working principle
Unmanaged switch
- Ethernet ports
16
- 10/100/1000 Mbps ports
16 x
- Router features
PoE
- Power supply (LOV)
mains-powered
- Weight
1.3 kg
- Width
279 mm
- Height
44 mm
- Depth
170 mm
- Type
CISCO CBS110 Unmanaged 16-port GE
- Rack size
483 mm (19")
- Interfaces
RJ45
- Factory colour
Grey
- Port
16 ports
- Power supply (details)
110 - 240 V
- CPU speed
400 MHz
128 MB
- UKCA
yes
- Power over Ethernet (PoE) ports quantity
8
- Operating temperature (T-T)
0 - 40 °C
- Basic switching RJ-45 Ethernet ports quantity
16
- Total Power over Ethernet (PoE) budget
64 W
- Storage relative humidity (H-H)
5 - 90 %
- Switching capacity
32 Gbit/s
- Heat dissipation
274.27 BTU/h
- Rack mount kit
yes
- Jumbo frames
9216
- Flow control support
yes
- Power over Ethernet (PoE)
yes
- Quality of Service (QoS) support
yes
- Jumbo frames support
yes
- Number of queues
4
- Gigabit Ethernet (copper) ports quantity
16
- Quick start guide
yes
- Half duplex
yes
- Rack mounting
yes
- Mean time between failures (MTBF)
1971811 h
- Full duplex
yes
- Flash memory
16 MB
- MAC address table
8192 Eintragungen
- Auto MDI/MDI-X
yes
- Head-of-line (HOL) blocking
yes
- Operating relative humidity (H-H)
10 - 90 %
- 10G support
no
- Storage temperature (T-T)
-20 - 70 °C
- Forwarding rate
23.8 Mpps
- Built-in processor
yes
- Power supply included
yes
