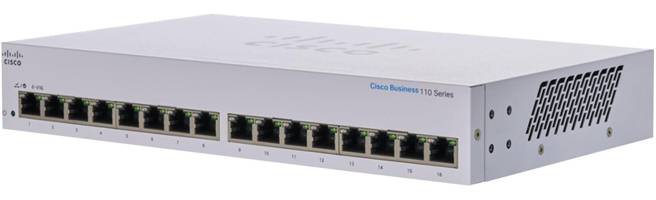

Cisco CBS110-16T-EU CISCO CBS110 Unmanaged 16-port GE Network switch 16 ports 10 / 100 / 1000 MBit/s
EAN:
Part number:
Item no:
Cisco CBS110 unmanaged L2 Gigabit Ethernet (10/100/1000) 1U gray
Highlights & Details
- Unmanaged L2
- Quality of Service (QoS) support
- Number of basic switching RJ-45 Ethernet ports: 16
- CAT5E 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 8192 entries Routing/switching capacity: 32 Gb/s.
- 1U Rack-mounting
- Power supply included
Technical specifications
- Form factor: 1U
- Product type
Network switch
- LAN transfer rate
1000 MBit/s
- Transfer rate
10 / 100 / 1000 MBit/s
- Working principle
Unmanaged switch
- Ethernet ports
16
- No. of 100 Mbps/1Gbps/10Gbps ports
16 x
- 10/100 Mbps ports
16 x
- 10/100/1000 Mbps ports
16 x
- Power supply (LOV)
mains-powered
- MAC addresses
8192
- Weight
970 g
- Width
279 mm
- Height
44 mm
- Depth
170 mm
- Type
CISCO CBS110 Unmanaged 16-port GE
- Rack size
483 mm (19")
- Interfaces
RJ45
Gigabit LAN (1 Gbps)
- Factory colour
Grey
- Port
16 ports
- Power supply (details)
110 - 240 V
- CPU speed
400 MHz
128 MB
- UKCA
yes
- Operating temperature (T-T)
0 - 40 °C
- Basic switching RJ-45 Ethernet ports quantity
16
- Storage relative humidity (H-H)
5 - 90 %
- Switching capacity
32 Gbit/s
- Heat dissipation
39.34 BTU/h
- Rack mount kit
yes
- Jumbo frames
9216
- Flow control support
yes
- Power over Ethernet (PoE)
no
- Quality of Service (QoS) support
yes
- Jumbo frames support
yes
- Redundant power supply (RPS) support
no
- Number of queues
4
- Gigabit Ethernet (copper) ports quantity
16
- Quick start guide
yes
- Half duplex
yes
- Rack mounting
yes
- Mean time between failures (MTBF)
2685092 h
- Full duplex
yes
- Flash memory
16 MB
- Number of power supply units
1
- MAC address table
8192 Eintragungen
- Auto MDI/MDI-X
yes
- Head-of-line (HOL) blocking
yes
- Operating relative humidity (H-H)
10 - 90 %
- 10G support
no
- Storage temperature (T-T)
-20 - 70 °C
- Forwarding rate
23.8 Mpps
- Built-in processor
yes
- Power supply included
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3737528 Cisco CBS110-16T-EU CISCO CBS110 Unmanaged 16-port GE Network switch 16 ports 10 / 100 / 1000 MBit/s
Description
Bring your network to life with the Cisco CBS110 16-port gigabit unmanaged switch!
Are you looking for a high-performance, reliable and at the same time easy networking solution for your office? The Cisco CBS110-16T offers professional gigabit-performance without the effort of a complex IT-setup
The advantages at a glance:
16 Gigabit Ethernet ports: Get lightning-fast data transfers and maximum capacity for your bandwidth-intensive applications and cloud services
Real plug-and-play: Unpack, plug-in, and it's ready! The switch is ready to use immediately, without any software installation or configuration
Intelligent automatic mechanism: Integrated functions like Quality of Service (QoS) for smooth video and voice calls, automatic loop detection (loop detection) and cable diagnosis provide for an absolutely stable network in the background
Silent and energy efficient: Thanks to its fan-less design the switch works completely without noise. In addition, the Energy Efficient Ethernet Standard (IEEE 802.3az) automatically reduces your power costs
Flexible integration: The device is specially designed for rack mounting (installation in a network cabinet) and fits seamlessly into your professional IT environment
