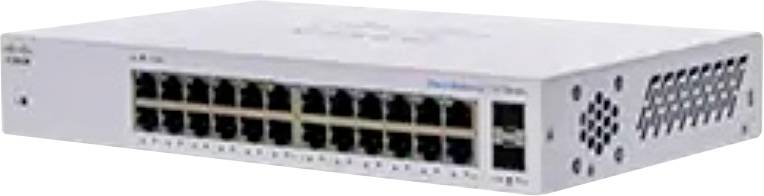

Cisco CBS110-24T-EU CISCO CBS110 Unmanaged 24-port GE Network switch
EAN:
Part number:
Item no:
Cisco CBS110 unmanaged L2 Gigabit Ethernet (10/100/1000) 1U gray
Highlights & Details
- Unmanaged L2
- Quality of Service (QoS) support
- Number of basic switching RJ-45 Ethernet ports: 24
- 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 8192 entries Routing/switching capacity: 48 Gb/s.
- 1U Rack-mounting
- Power supply included
- This text is machine translated.
Technical specifications
- Form factor: 1U
- Product type
Network switch
- Weight
1.56 kg
- Width
279 mm
- Height
44 mm
- Depth
170 mm
- Type
CISCO CBS110 Unmanaged 24-port GE
- Factory colour
Grey
- Cable length
0 cm
- Keyboard layout
German, QWERTZ
- Power supply (details)
110 - 240 V
- CPU speed
400 MHz
64 MB
- UKCA
yes
- Operating temperature (T-T)
0 - 40 °C
- Combo SFP ports quantity
2
- Basic switching RJ-45 Ethernet ports quantity
24
- Storage relative humidity (H-H)
5 - 90 %
- Switching capacity
48 Gbit/s
- Heat dissipation
55.75 BTU/h
- Rack mount kit
yes
- Jumbo frames
9216
- Flow control support
yes
- Power over Ethernet (PoE)
no
- Quality of Service (QoS) support
yes
- Jumbo frames support
yes
- Redundant power supply (RPS) support
no
- Number of queues
4
- Gigabit Ethernet (copper) ports quantity
24
- Quick start guide
yes
- Half duplex
yes
- Rack mounting
yes
- Mean time between failures (MTBF)
524296 h
- Full duplex
yes
- Flash memory
8 MB
- Number of power supply units
1
- MAC address table
8192 Eintragungen
- Auto MDI/MDI-X
yes
- Head-of-line (HOL) blocking
yes
- Operating relative humidity (H-H)
10 - 90 %
- 10G support
no
- Storage temperature (T-T)
-20 - 70 °C
- Forwarding rate
35.7 Mpps
- Built-in processor
yes
- Power supply included
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3737589 Cisco CBS110-24T-EU CISCO CBS110 Unmanaged 24-port GE Network switch
