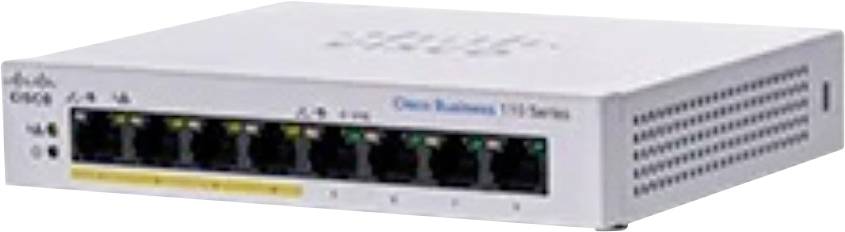

A network switch with eight Ethernet ports, part of the Cisco 100 Series, used for connecting multiple devices within a local area network.

A network switch with eight Ethernet ports, part of the Cisco 100 Series, used for connecting multiple devices within a local area network.

Cisco

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Pre-contractual information under the EU Data Act

Cisco CBS110-8PP-D unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) gray

Highlights & Details

Unmanaged L2
Quality of Service (QoS) support
Number of basic switching RJ-45 Ethernet ports: 8
CAT5E 10BASE-T, 100BASE-TX, 1000BASE-T
MAC address table: 8192 entries Routing/switching capacity: 16 Gb/s.
Power supply includes Power over Ethernet (PoE)
This text is machine translated.

Technical specifications

Sustainability Compliance: Yes

Product type: Network switch

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s

Transfer rate: 16 GBit/s

Working principle: Unmanaged switch

Ethernet ports: 8

10/100/1000 Mbps ports: 8 x

Router features: PoE

Power supply (LOV): mains-powered

Weight: 550 g

Width: 160 mm

Height: 30 mm

Depth: 129 mm

Type: CISCO CBS110 Unmanaged 8-port GE

Interfaces: RJ45

Factory colour: Grey

Port: 8 ports

CPU speed: 400 MHz

UKCA: yes

Power over Ethernet (PoE) ports quantity: 4

Operating temperature (T-T): 0 - 40 °C

Basic switching RJ-45 Ethernet ports quantity: 8

Total Power over Ethernet (PoE) budget: 32 W

Storage relative humidity (H-H): 5 - 90 %

Switching capacity: 16 Gbit/s

Heat dissipation: 130.34 BTU/h

Jumbo frames: 9216

Flow control support: yes

Power over Ethernet (PoE): yes

Quality of Service (QoS) support: yes

Jumbo frames support: yes

Number of queues: 4

Gigabit Ethernet (copper) ports quantity: 8

Quick start guide: yes

Half duplex: yes

Rack mounting: no

Mean time between failures (MTBF): 465437 h

Full duplex: yes

MAC address table: 8192 Eintragungen

Auto MDI/MDI-X: yes

Head-of-line (HOL) blocking: yes

Operating relative humidity (H-H): 10 - 90 %

10G support: no

Storage temperature (T-T): -20 - 70 °C

Forwarding rate: 11.9 Mpps

Built-in processor: yes

Power supply included: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3737588 Cisco CBS110-8PP-D-EU CISCO CBS110 Unmanaged 8-port GE Network switch 8 ports 16 GBit/s PoE
