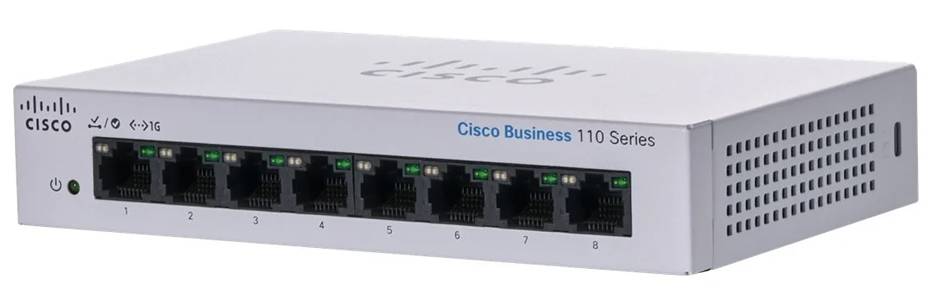

Cisco CBS110-8T-D-EU CISCO CBS110 Unmanaged 8-port GE Desktop Network switch 8 ports 10 / 100 / 1000 MBit/s
EAN:
Part number:
Item no:
Cisco CBS110 unmanaged L2 Gigabit Ethernet (10/100/1000) gray
Highlights & Details
- Unmanaged L2
- Quality of Service (QoS) support
- Number of basic switching RJ-45 Ethernet ports: 8
- 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 8192 entries Routing/switching capacity: 16 Gb/s.
- Power supply included
- This text is machine translated.
Technical specifications
- Product type
Network switch
- LAN transfer rate
1000 MBit/s
- Transfer rate
10 / 100 / 1000 MBit/s
- Working principle
Unmanaged switch
- Ethernet ports
8
- No. of 100 Mbps/1Gbps/10Gbps ports
8 x
- 10/100 Mbps ports
8 x
- 10/100/1000 Mbps ports
8 x
- Power supply (LOV)
mains-powered
- MAC addresses
8192
- Weight
430 g
- Width
160 mm
- Height
30 mm
- Depth
104 mm
- Type
CISCO CBS110 Unmanaged 8-port GE Desktop
- Interfaces
RJ45
Gigabit LAN (1 Gbps)
- Factory colour
Grey
- Port
8 ports
- UKCA
yes
- Operating temperature (T-T)
0 - 40 °C
- Basic switching RJ-45 Ethernet ports quantity
8
- Storage relative humidity (H-H)
5 - 90 %
- Switching capacity
16 Gbit/s
- Heat dissipation
14.09 BTU/h
- Jumbo frames
9216
- Flow control support
yes
- Power over Ethernet (PoE)
no
- Quality of Service (QoS) support
yes
- Jumbo frames support
yes
- Redundant power supply (RPS) support
no
- Number of queues
4
- Gigabit Ethernet (copper) ports quantity
8
- Quick start guide
yes
- Half duplex
yes
- Rack mounting
no
- Mean time between failures (MTBF)
2066844 h
- Full duplex
yes
- Number of power supply units
1
- MAC address table
8192 Eintragungen
- Auto MDI/MDI-X
yes
- Head-of-line (HOL) blocking
yes
- Operating relative humidity (H-H)
10 - 90 %
- 10G support
no
- Storage temperature (T-T)
-20 - 70 °C
- Forwarding rate
11.9 Mpps
- Power supply included
yes
