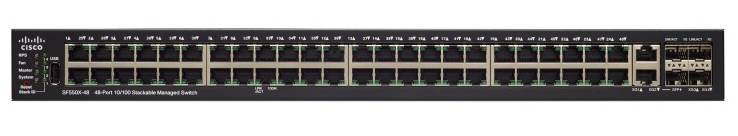

Cisco SF550X-48P-K9-EU SF550X-48P-K9-EU Network switch PoE
EAN:
Part number:
Item no:
Datasheet (PDF)
Cisco SF 550X-48 P managed L3 Fast Ethernet (10/100) Power over Ethernet (PoE) support 1U black-gray
Technical specifications
- Switching capacity: 89.6 Gbit/s
- Product type
Network switch
- Working principle
Managed switch
- Ethernet ports
48
- SFP ports
2 x
- No. of 100 Mbps/1Gbps/10Gbps ports
2 x
- 10/100 Mbps ports
32 x
- Jumbo frames
Yes
- Router features
PoE
- MAC addresses
16000
- Weight
5.09 kg
- Width
44 cm
- Height
4.4 cm
- Depth
35 cm
- Type
SF550X-48P-K9-EU
- Interfaces
RJ45
- Max. ambient temperature
50 °C
- Min. ambient temperature
0 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1840191 Cisco SF550X-48P-K9-EU SF550X-48P-K9-EU Network switch PoE
User & Safety Instructions
User & Safety Instructions 1840191 Cisco SF550X-48P-K9-EU SF550X-48P-K9-EU Network switch PoE
Description
Cisco SF 550X-48 P. Switch type: managed, switch level: L3. Basic Switching RJ-45 Ethernet Ports-Typ: Fast Ethernet (10/100), number of basic switching RJ-45 Ethernet Ports: 48, the number of installed SFP modules: 2, Console Port: RJ-45. MAC Address Table: 16000 entries, Routing/switching capacity: 89.6 Gbit/s. Power standard: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE) support. Rack installation, form factor: 1 U
