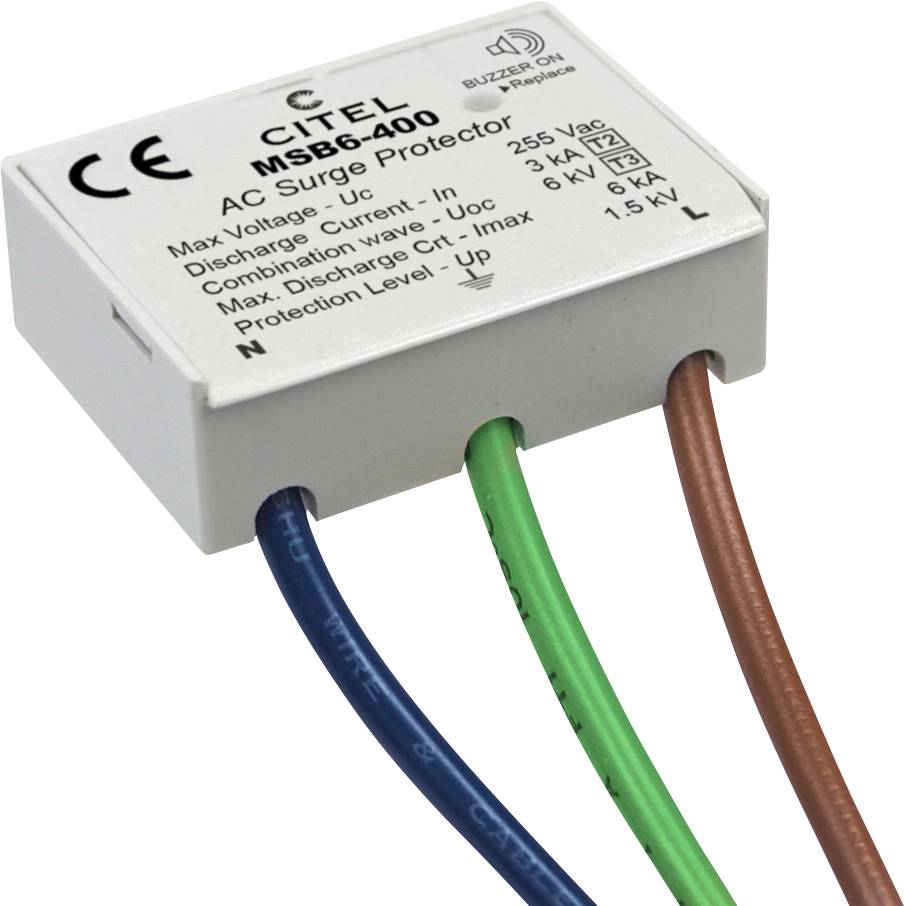

Citel 561312 MSB6-400/LD Surge protection module Surge protection for: Junction box 6 kA 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Overvoltage protection AC type 3 for TT and TN-networks 2-pin
- Compact design
- Acoustic signalling
- Connection cable max. 1,5mm²
Technical specifications
- Product type
Surge protection module
- Surge protection for
Junction box
- Leakage current
6 kA
- Nominal voltage
230 V
- Operating temperature
-40 °C/+85 °C
IP20
- Manufacturer part #
561312
- Factory colour
White
- Standards
DIN EN61643-11, IEC 61643-11, UL 1449 ED.4
- Dim
(L x W x H) 36 x 27 x 12 mm
- Length
36 mm
- Width
27 mm
- Height
12 mm
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2357934 Citel 561312 MSB6-400/LD Surge protection module Surge protection for: Junction box 6 kA 1 pc(s)
Description
Surge arresters for 1-phase end circuits type 3 for use in sockets, cable channels or devices.
This text is machine translated.
This text is machine translated.
Features
- Compact type 3 surge protection
- Cable solution
- Acoustic signalling
- Complies with the standards IEC 61643-11 and EN 61643-11
