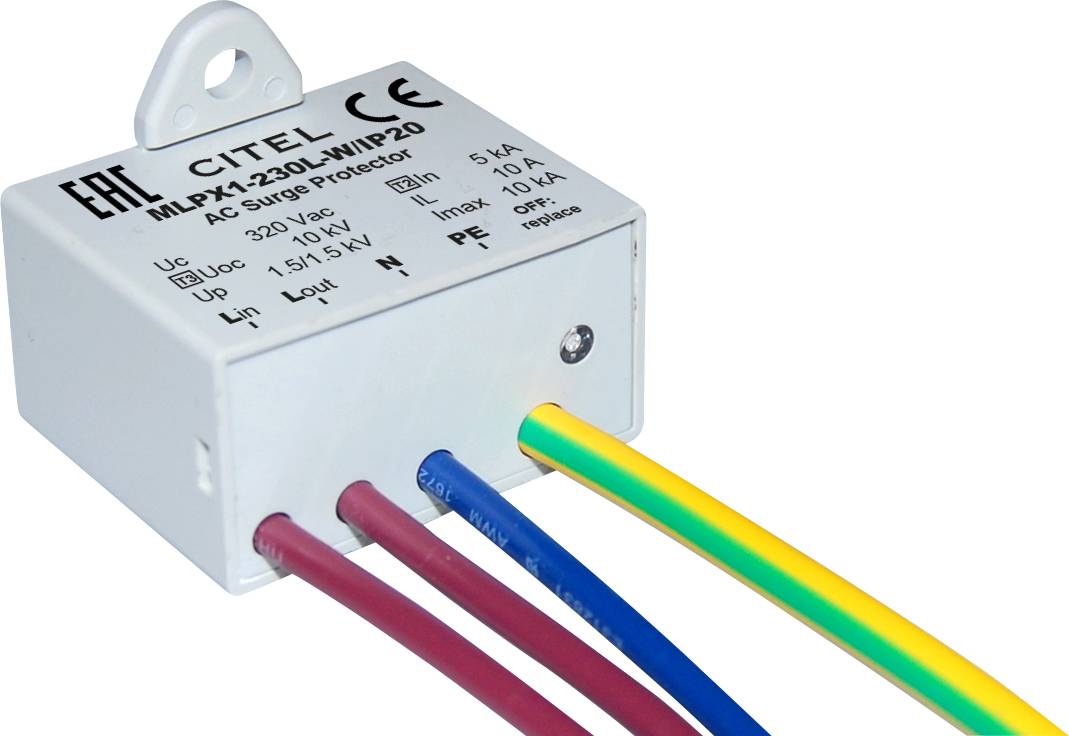

Citel 711216 MLPX1-230L-W/IP20 Surge protection (built-in) Surge protection for: Junction box 10 kA 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Surge protection AC type 2+3 for TT and TNS networks 2-pin
- Circuit separation in the event of a fault
- AC MAINS FORM TT, TN
- Max. Load current (for serial or V wiring) IL 10 A.
- Protection type IP20
Technical specifications
- Internal thermal separation device
- Fuse max. 16 A (GL/GG)
- Ground fault circuit breaker type "S" or time-delayed
- Mounting on wall or mounting plate
- Thermoplastic casing material PA66 UL94-V0
- Product type
Surge protection (built-in)
- Surge protection for
Junction box
- Leakage current
10 kA
- Nominal voltage
230 V
- Operating temperature
-40 °C/+85 °C
- Manufacturer part #
711216
- Factory colour
White
- Standards
DIN EN61643-11, IEC 61643-11, UL 1449 ED.3
- Dim
(L x W x H) 30 x 37 x 20 mm
- Length
30 mm
- Width
37 mm
- Height
20 mm
- Depth
30 mm
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2357936 Citel 711216 MLPX1-230L-W/IP20 Surge protection (built-in) Surge protection for: Junction box 10 kA 1 pc(s)
Description
Overvoltage protection for single-phase circuits and LED systems, protective circuit consisting of medium and fine protection, interruption of the circuit in the event of a fault.
This text is machine translated.
This text is machine translated.
Features
- Very compact type 2+3 surge protection
- For protection class I (MLPX1) applications
- Device defective - disconnection from the mains and circuit separation
- Complies with EN 61643-11 and IEC 61643-11 standards
- Particularly well suited for end circuits: E.g. LED lighting
- Status display Green LED
- Failure behavior Disconnect from the mains and circuit separation: LED off
